To Remove

  1. Remove the top engine cover.
  2. Place Lifting beam 83 94 850 above the engine and put the hook in the rear lifting eye. Take up the weight of the engine.
  3. Lift the car and remove the bottom engine cover. (LH section only on B205L/R).

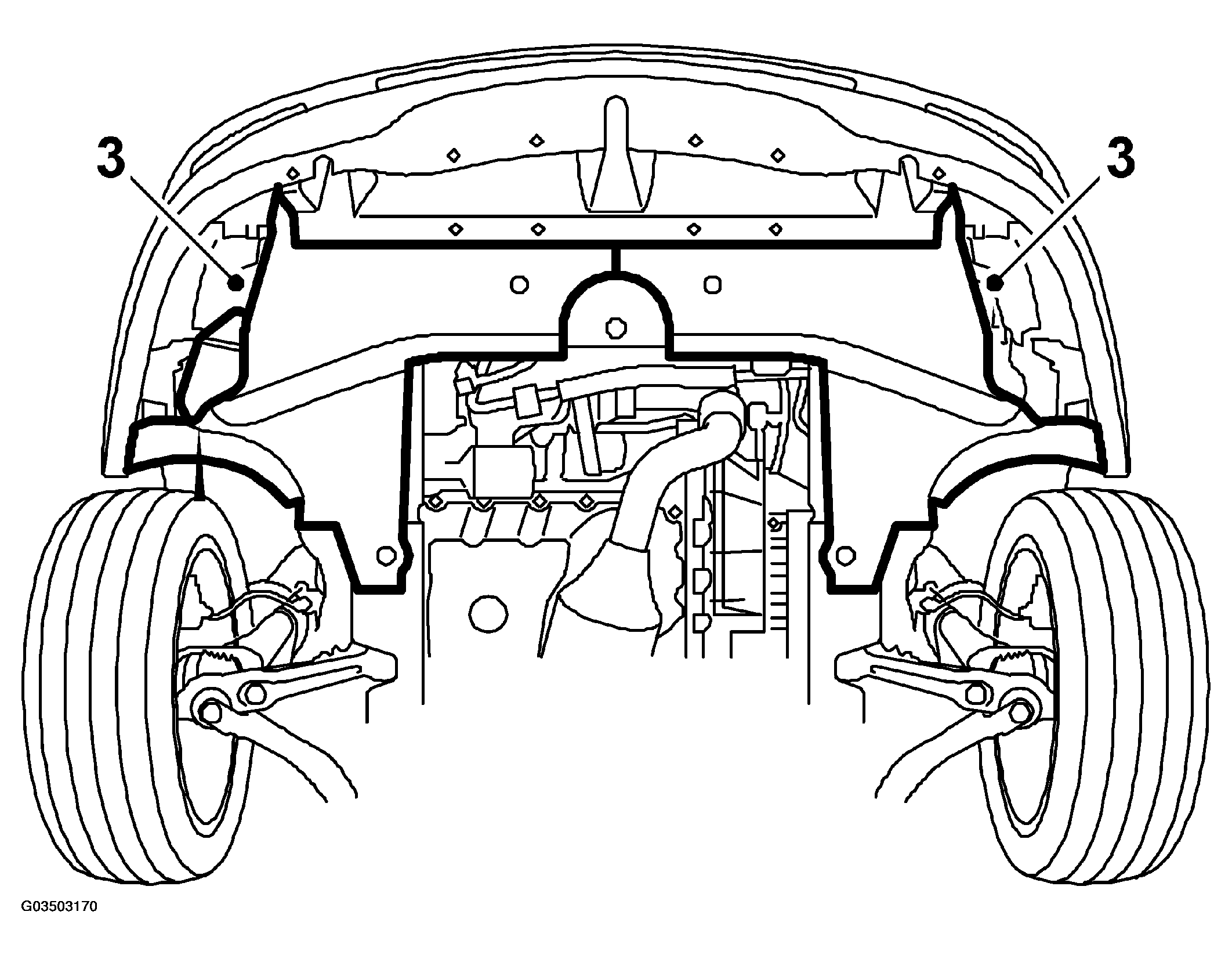

    Fig 1: Illustration For Step 3
    G03503170
  4. Unscrew the bolts holding the mounting pad to the body and the bolts in the mounting pad and remove it.

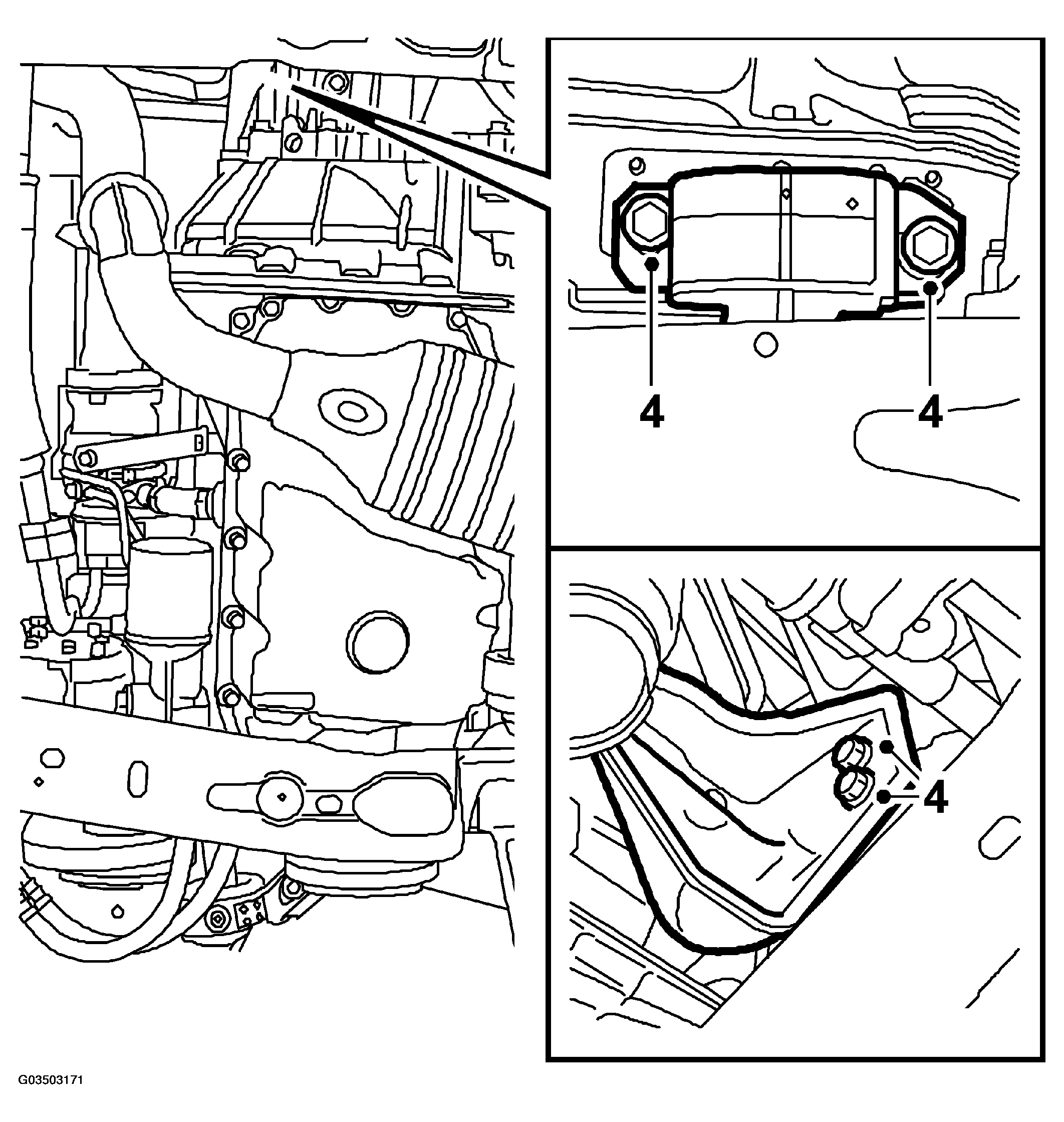

    Fig 2: Illustration For Step 4
    G03503171
