Testing For Open Circuits By Measuring Resistance

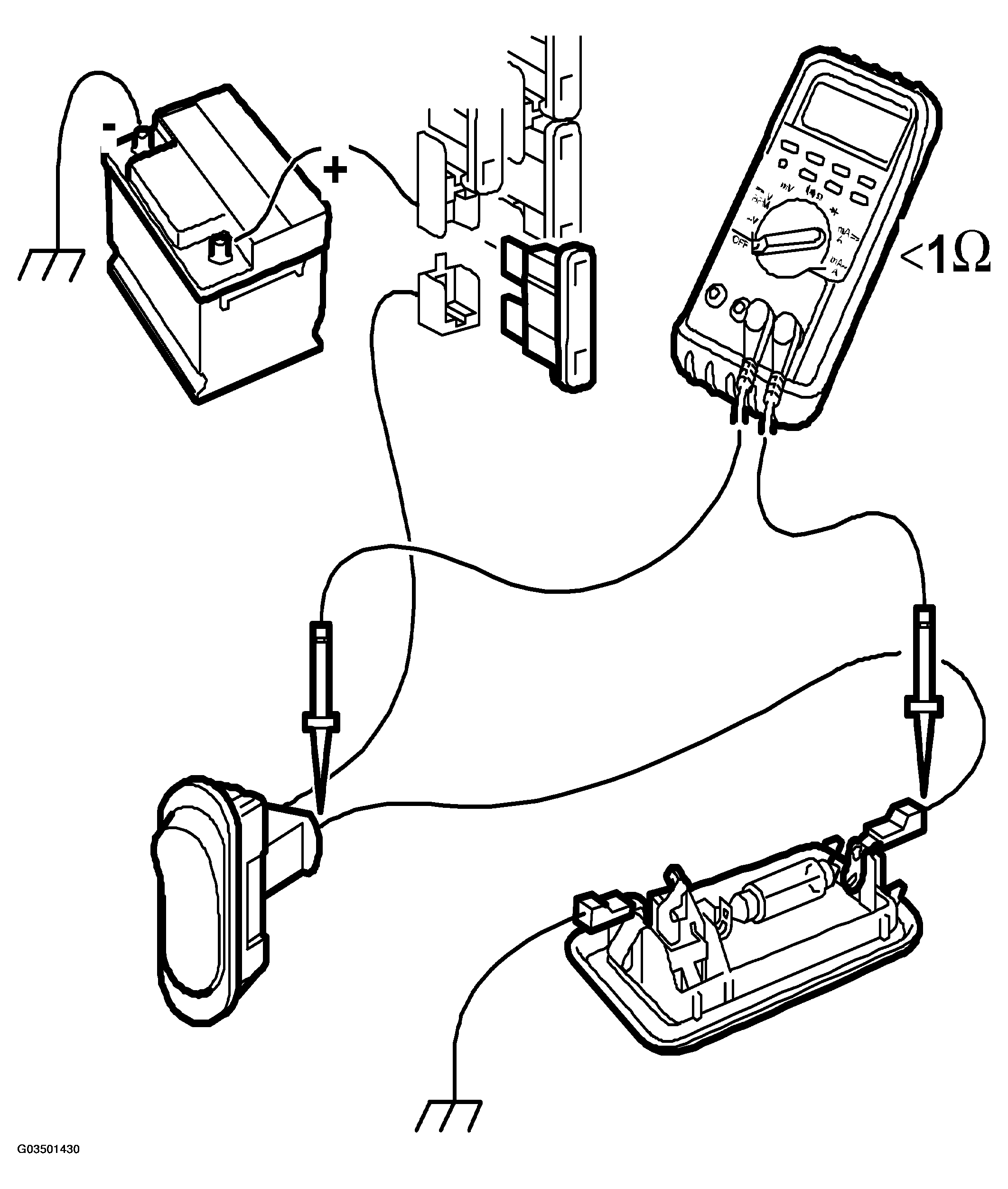

Fig 1: Measuring Open Circuits Resistance
G03501430
  1. Make sure the component or lead to be tested is not under tension (e.g. by removing the relevant fuse).
  2. Set the multimeter for measuring ohms and connect the ohmmeter to each end of the component/lead to be tested.
  3. Jiggle the relevant wiring harness while observing the ohmmeter.

Normally, the resistance of a wiring harness is less than 1 ohm. Specified values apply to components.
