To Fit

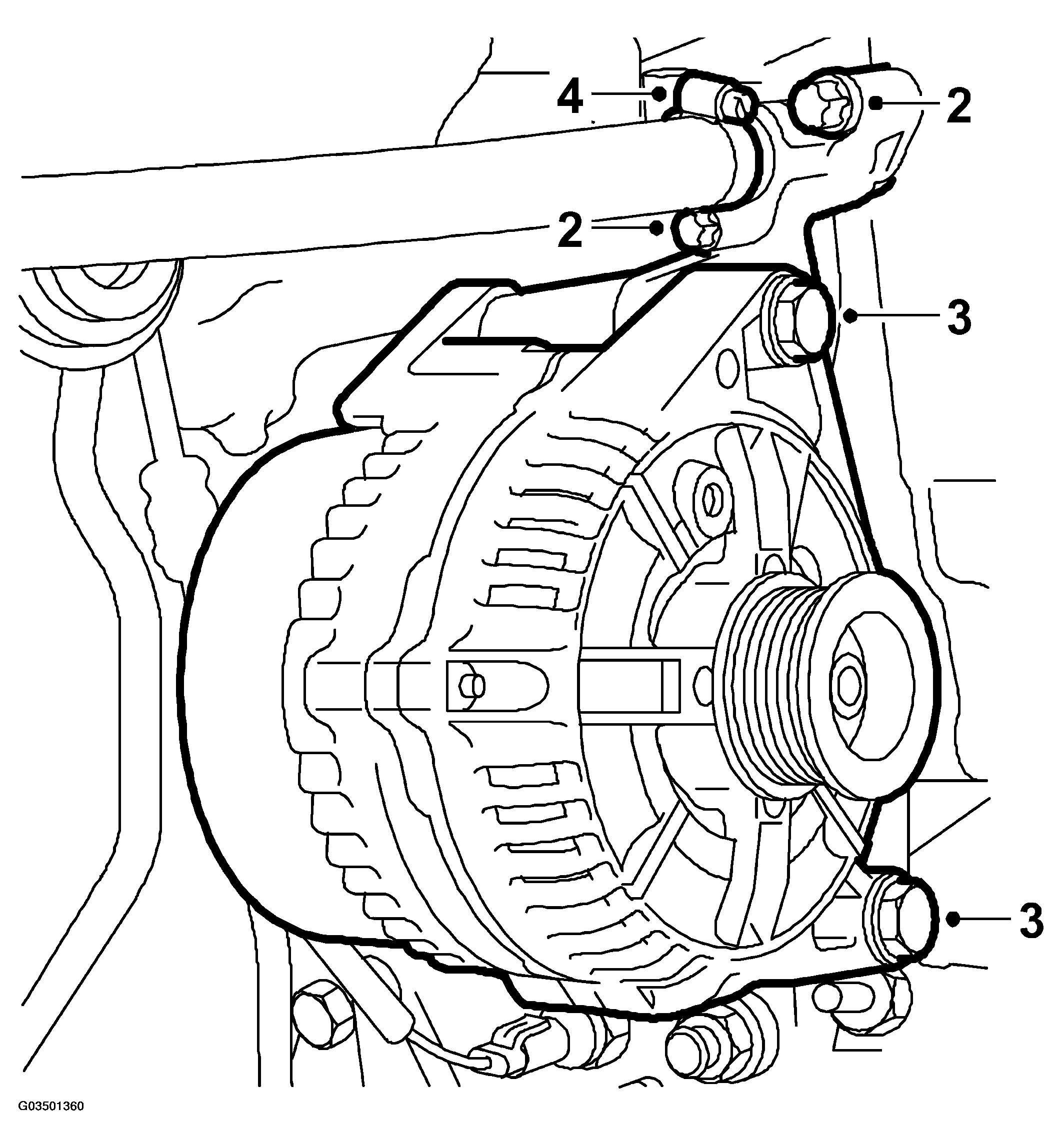

Fig 1: Illustration For Steps 2-3-4
G03501360
  1. Clean away any gasket remains on the sealing surface.
  2. Fit the generator bracket to the cylinder head.

    Tightening torque: 20 N.m (15 lbf ft).

  3. Rotate the generator back into position and tighten the bolts.

    Tightening torque: 35 N.m (26 lbf ft).

  4. Connect the coolant hose to the generator bracket.
  5. Refit the fuel hoses.

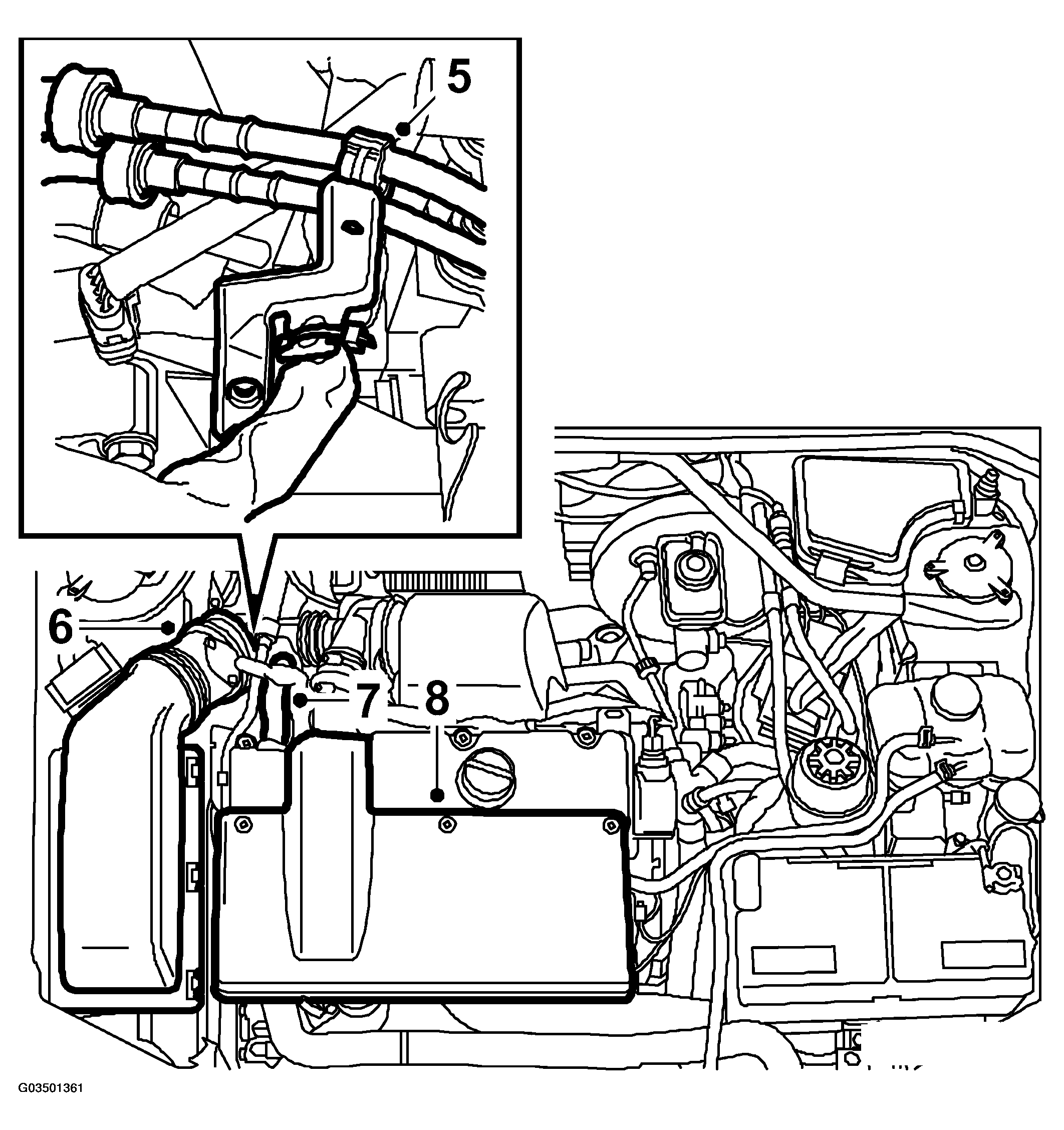

    Fig 2: Illustration For Steps 5-6-7-8
    G03501361
  6. Put back the air cleaner with the mass air flow sensor and hoses.

    Plug in the intake air temperature sensor's connector and the mass air flow sensor's connector.

  7. Connect the crankcase ventilation hose to the camshaft cover.
  8. Put back the engine cover.
  9. Position the multigroove V-belt on all the pulleys. Relieve the belt tensioner by turning it counterclockwise (towards the rear of the car) with a 19 mm spanner. Check the position of the belt on all the pulleys.

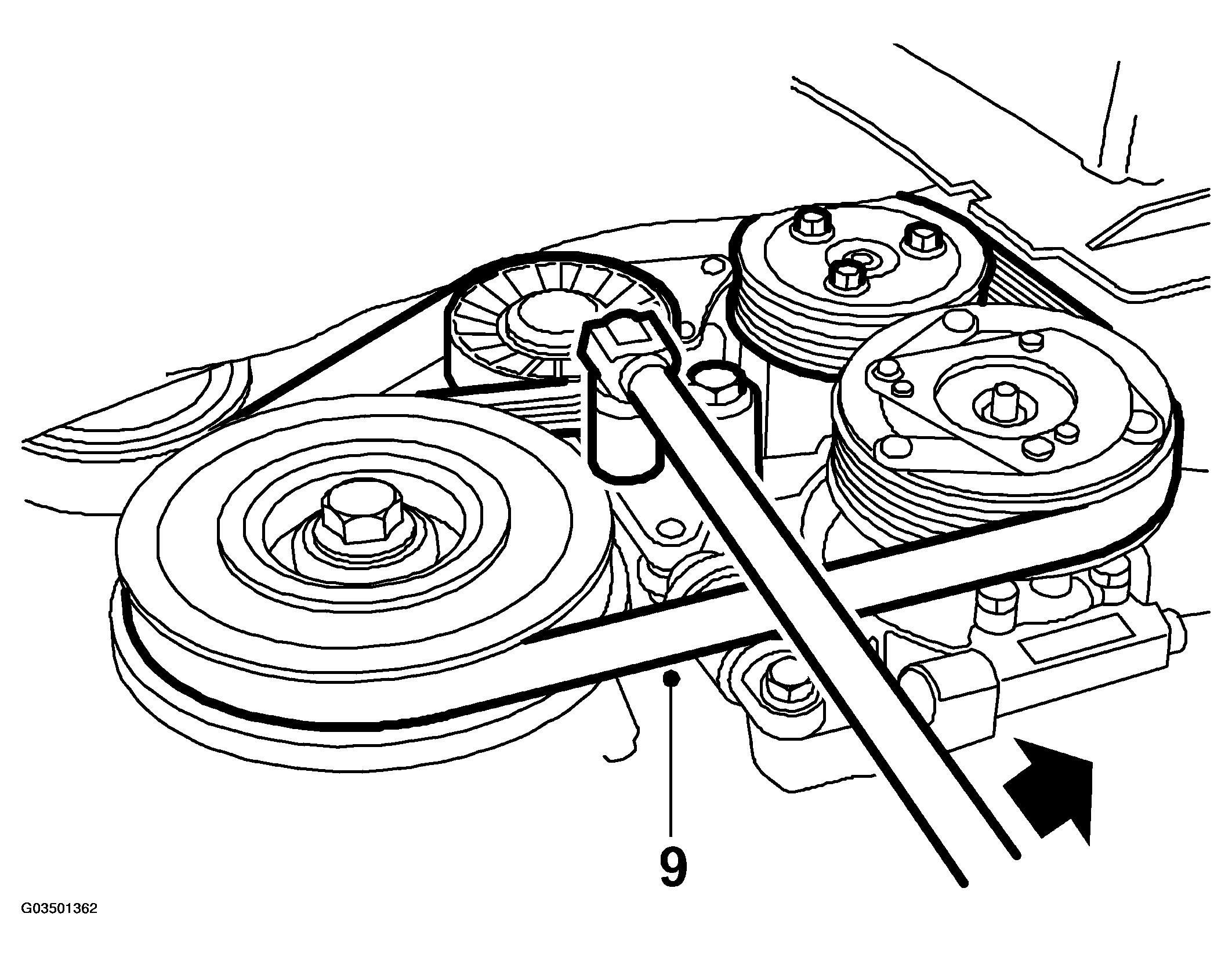

    Fig 3: Illustration For Step 9
    G03501362
  10. Put back the lower engine cover.

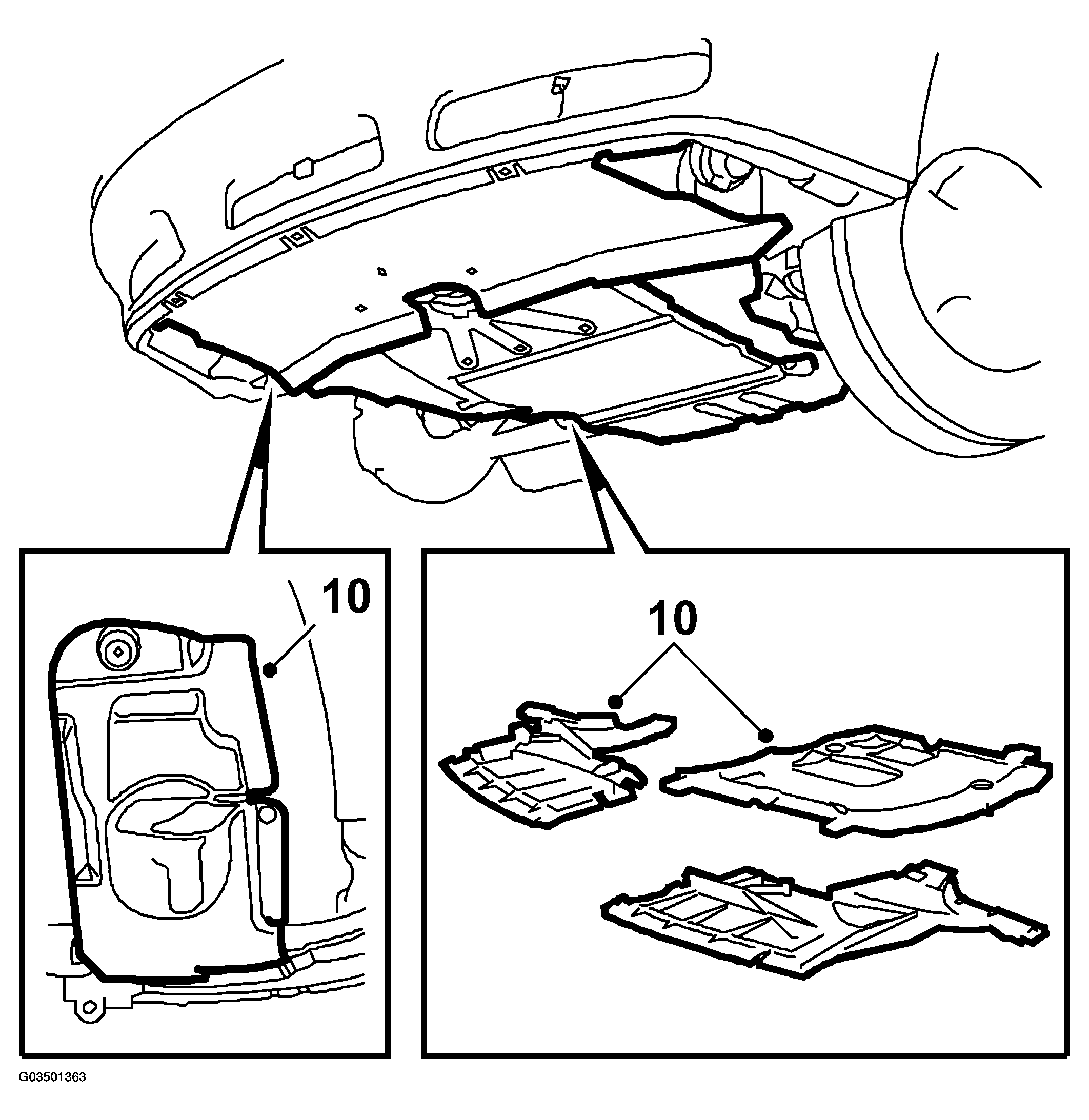

    Fig 4: Illustration For Step 10
    G03501363
  11. Fill with coolant, check the integrity of the system and bleed. See COOLANT (B235R B205L/R) .
