To remove

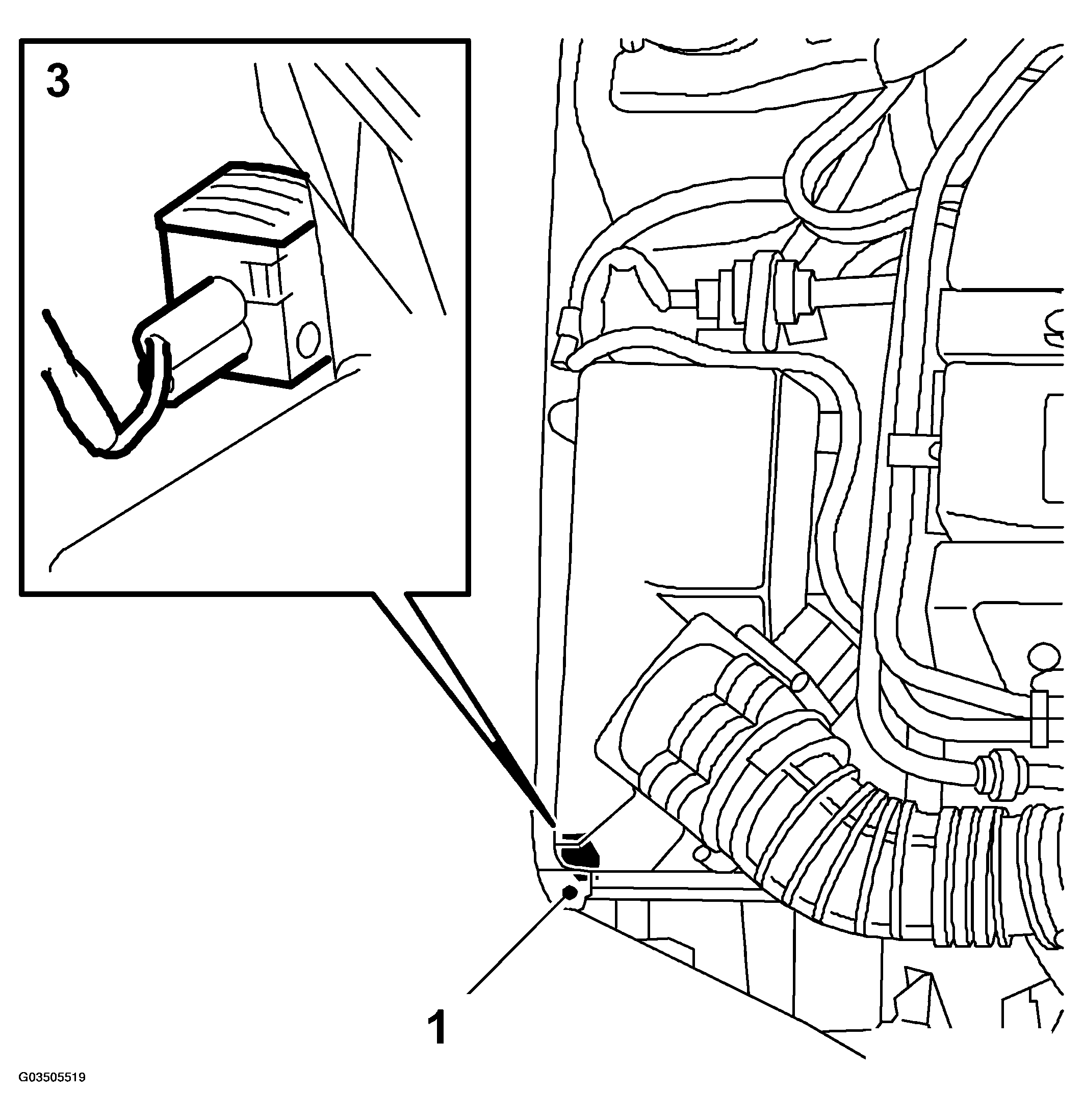

Fig 1: Illustration For Steps 1 & 3
G03505519Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the top part of the air cleaner and, if necessary, the mass air flow sensor, and move it aside.
  2. Remove the connector cable tie from the weld stud.
  3. Separate the connector and snip the cable tie.
  4. Snip the cable tie by the air cleaner attachment point.
  5. Raise the car and remove the wheel.
  6. Clean the area round the wheel sensor using a soft wire brush.

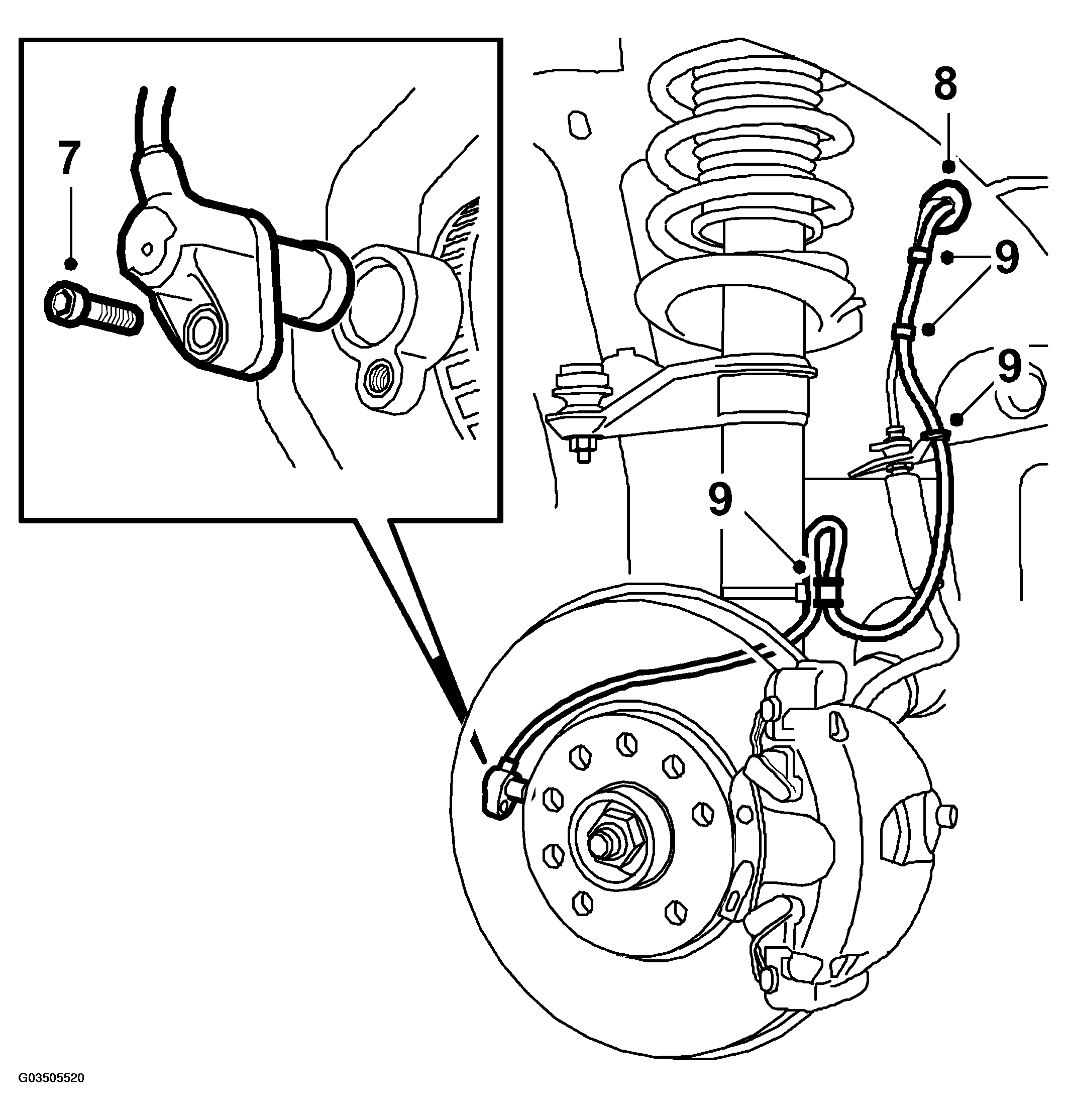

    Fig 2: Illustration For Steps 7-9
    G03505520Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Undo the wheel sensor retaining bolt and remove the wheel sensor.
  8. Remove the grommet and withdraw the lead.
  9. Detach the lead from the clips and lift out the sensor.
