To fit

  1. Insert the lead and press the connector home.
  2. Fit the wheel sensor in its holder and tighten the retaining bolt.

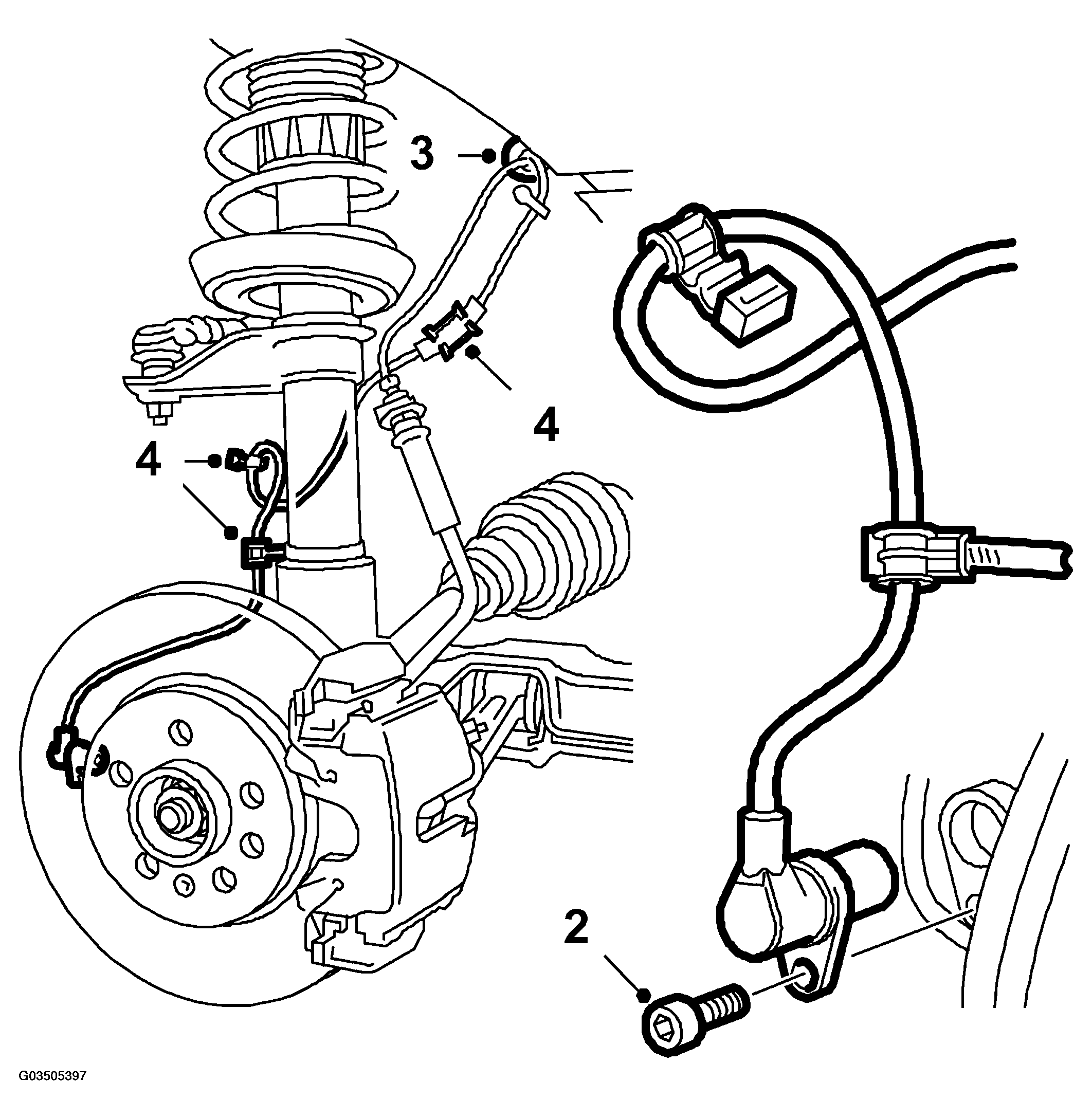

    Fig 1: Illustration For Step 2-4
    G03505397Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Smear the rubber grommet with a soap solution and fit it in lace.
  4. Press the lead into the retaining clips.
  5. Fit the wheel, see WHEEL . Lower the car.

    Tightening torque 110 N.m (81 lbf ft)

  6. Plug in the connector.

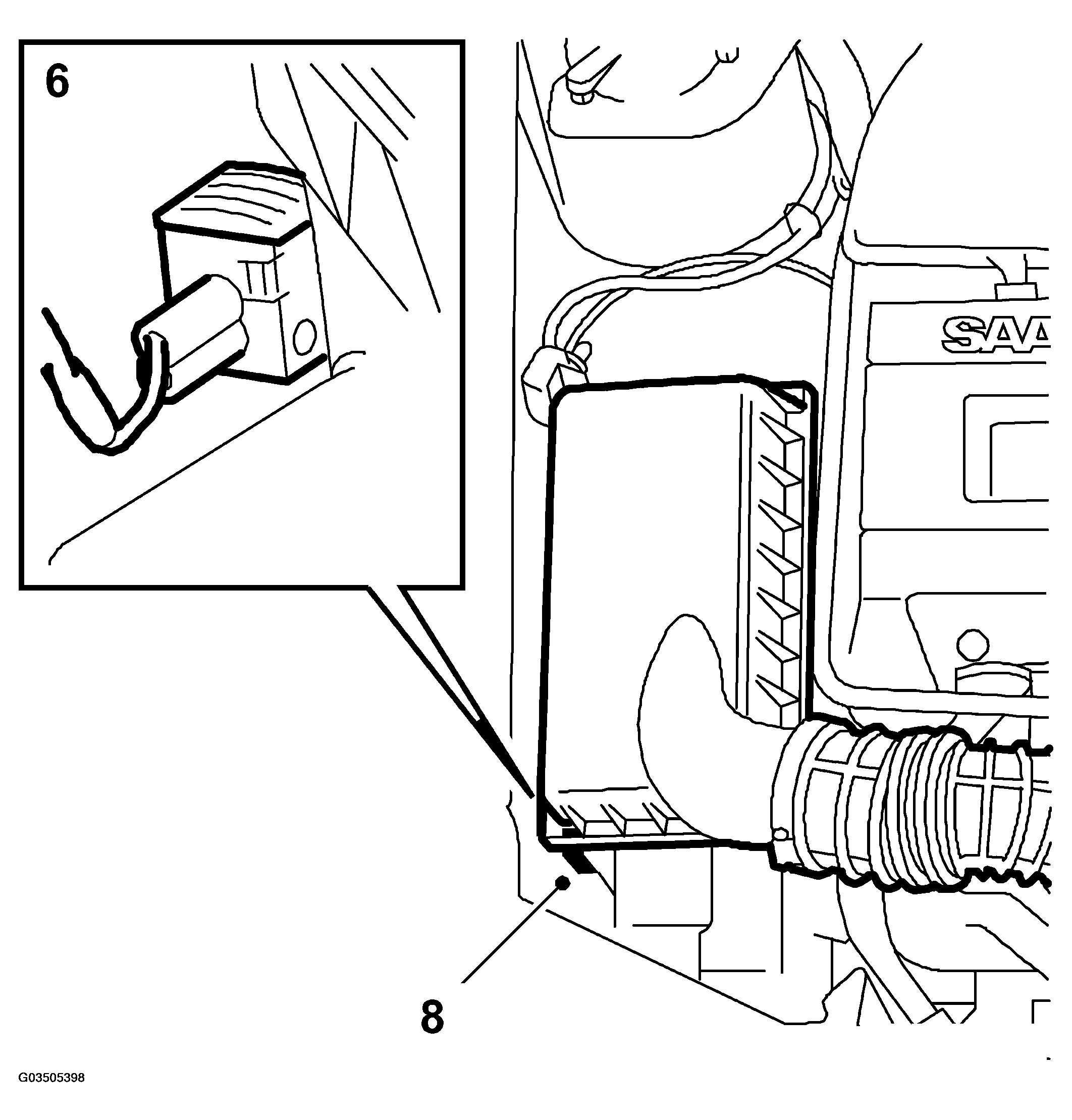

    Fig 2: Illustration For Step 6, 8
    G03505398Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit a new cable tie to the air cleaner's attachment point.
  8. Refit the top part of the air cleaner and, if removed earlier, the mass air flow sensor.
