Components connected:
COMPONENTS CONNECTED
| 64RL | Heating pad, rear seat LH |
| 64RR | Heating pad, rear seat RH |
| 323a | Motor, fuel pump, auxiliary heater |

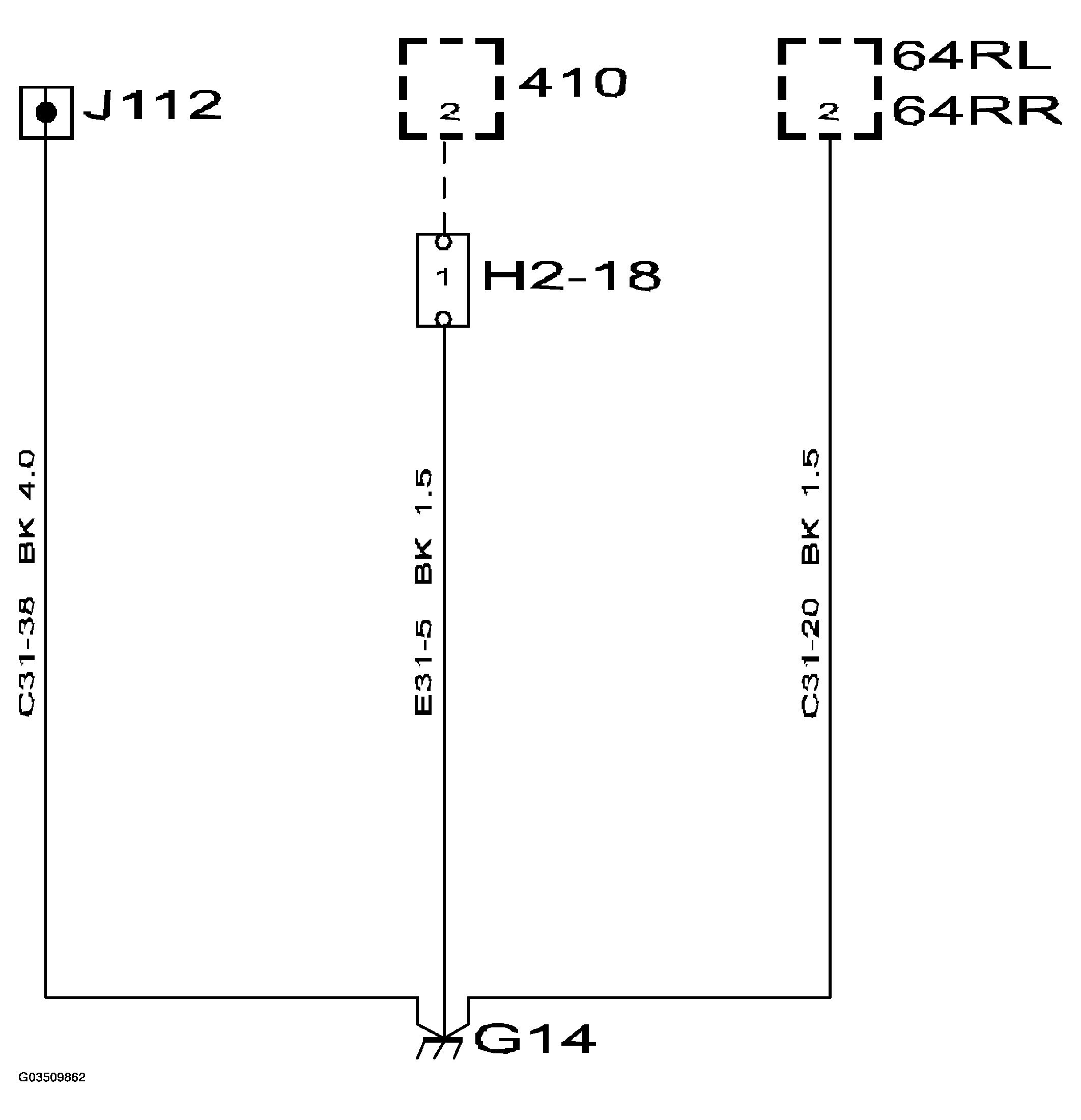

| Via crimp J112 | |
| 64FL | Heating pad, LH seat |
| 64FR | Heating pad, RH seat (3D/5D) |
| 70D | Seat-belt warning switch, driver (LHD) |
| 70P | Seat-belt warning switch, passenger (RHD) |
| 164 | Motors, electric window lifts (via 386) |
| 182 | Motor, electric sunroof (via 386) |
| 357Dk | Control module, electrically operated seat with memory, (LHD) |
| 357P | Switch, electrically operated seat, passenger (RHD) |
| 386 | Switch unit, electric window lifts (electrically operated sunroof) (3D/5D) |
| 463 | Antenna unit, immobilizer (3D/5D) |
| 514a | Switch unit, simultaneous closing central locking (via 386) |
| 514b | Switch, simultaneous window closing (via 386) |
| 632 | Control module TWICE |
