DTC P1670: Relay of limp-home function (open circuit/short circuit to ground): Notes

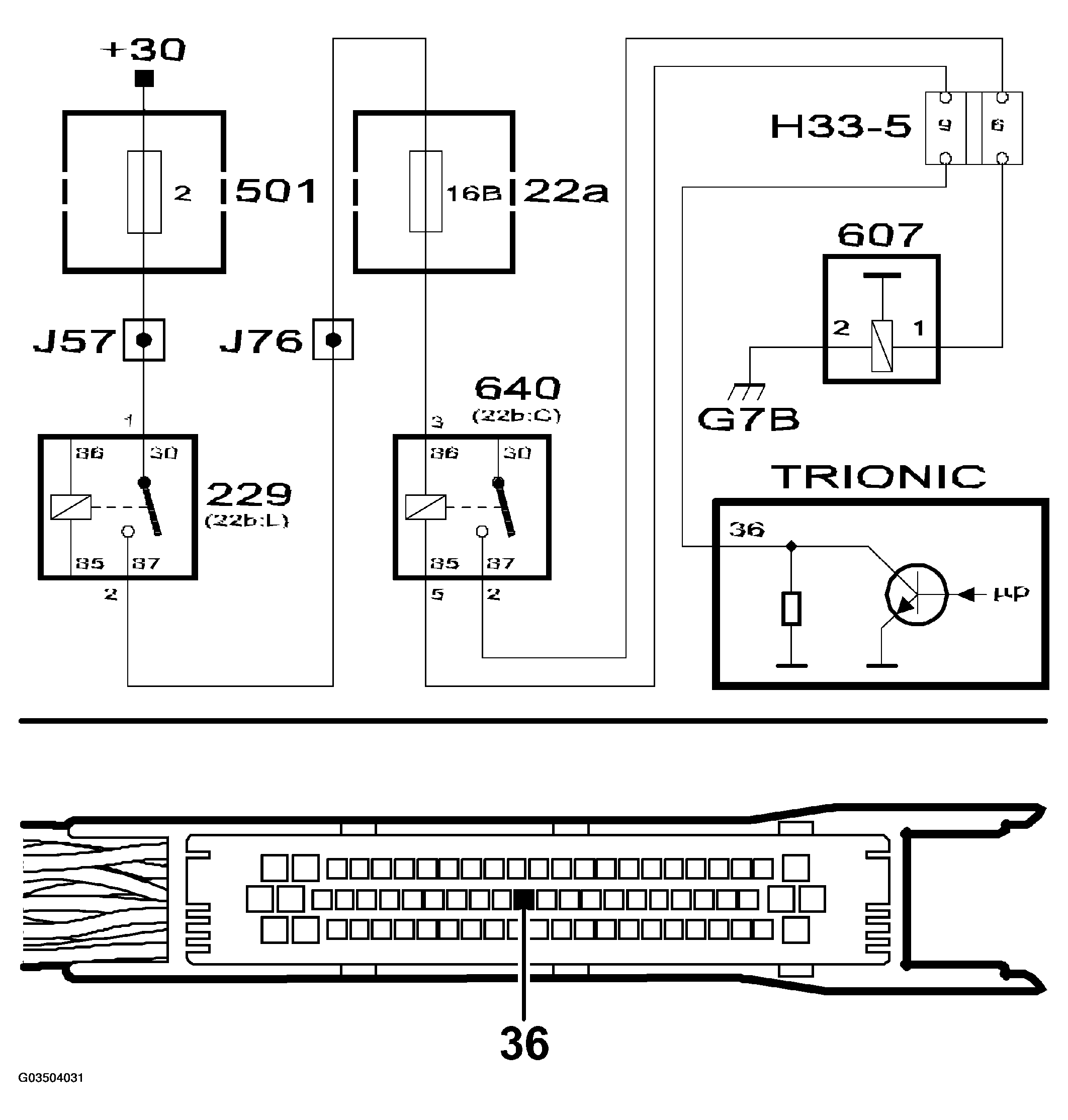

Fig 1: Identifying Circuit Diagram (Relay Of Limp-Home Function, Open Circuit/Short Circuit To Ground)
G03504031Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The relay/electrical circuit that activates the throttle's limp -home function is faulty.
