Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault diagnosis, fault codes >> DTC P1453: EVAP Tank Pressure Sensor Value too high when Depressurized >> Notes

DTC P1453: EVAP Tank Pressure Sensor Value too high when Depressurized: Notes

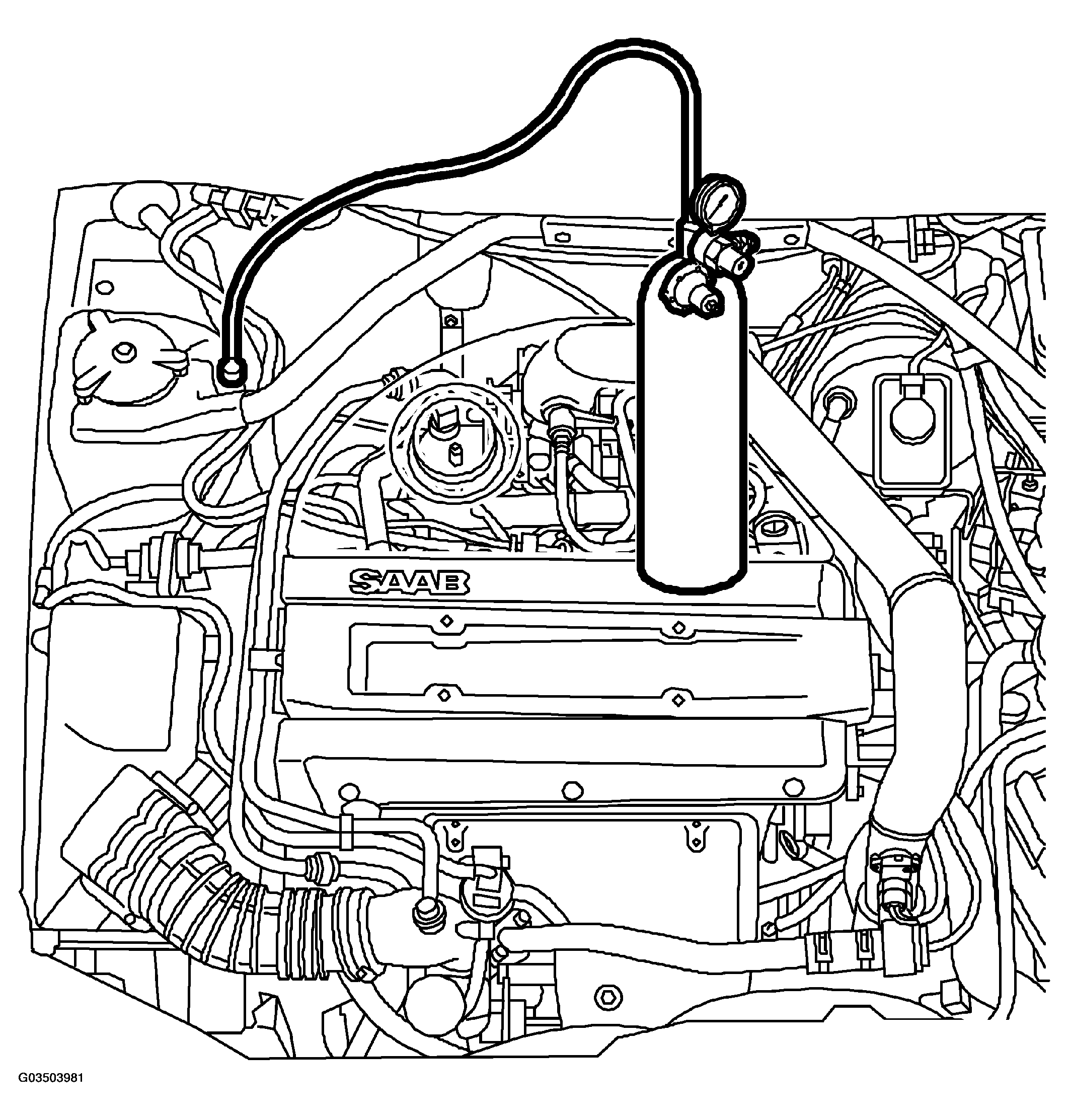

Fig 1: Locating EVAP Tank Pressure Sensor
G03503981Courtesy of SAAB-SCANIA OF AMERICA, INC.

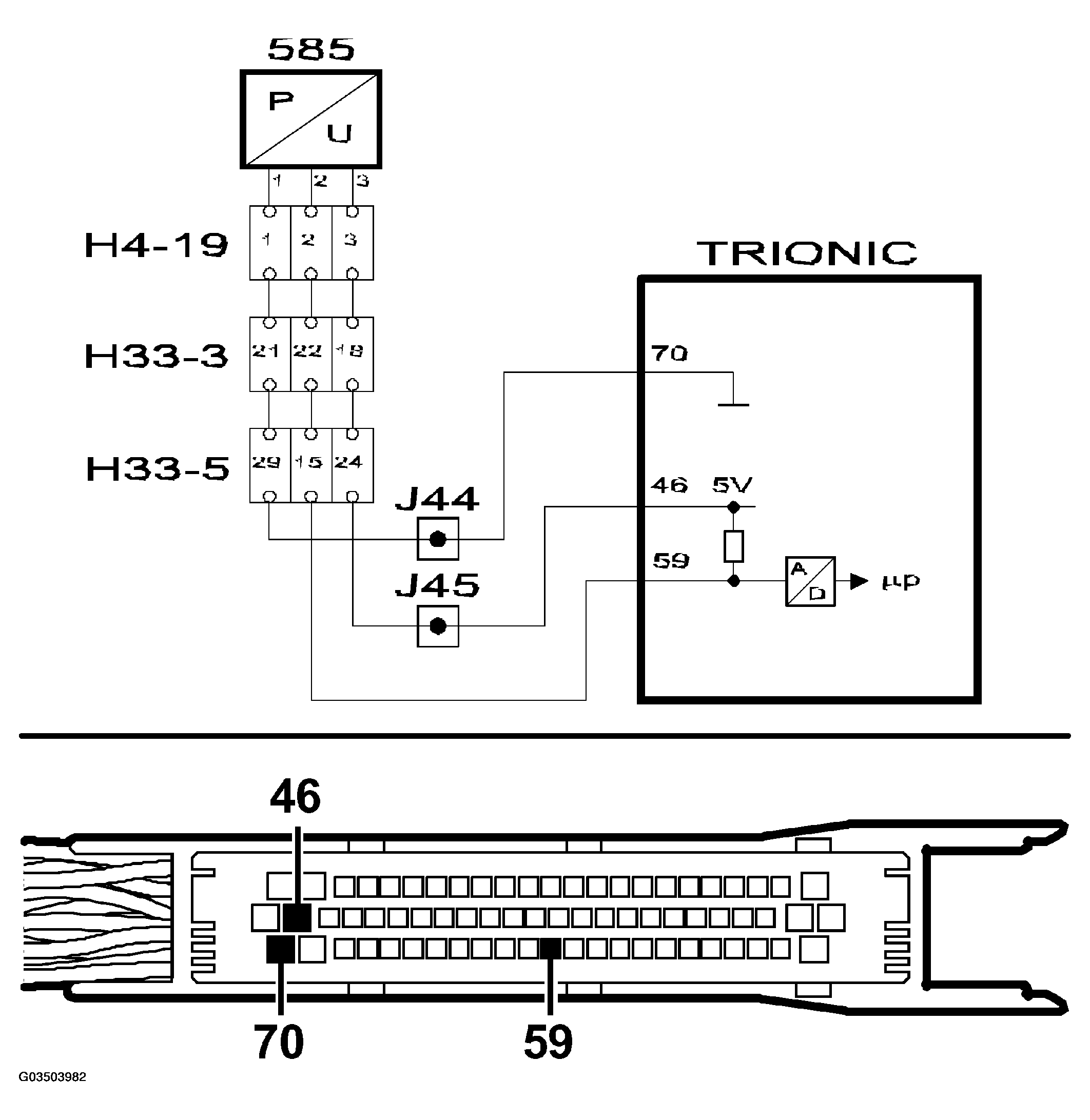

Fig 2: Identifying Circuit Diagram (EVAP Tank Pressure Sensor, Value Too High)
G03503982Courtesy of SAAB-SCANIA OF AMERICA, INC.
