DTC P0118: Engine Coolant Temperature Sensor Circuit (Short to B+/Open circuit): Notes

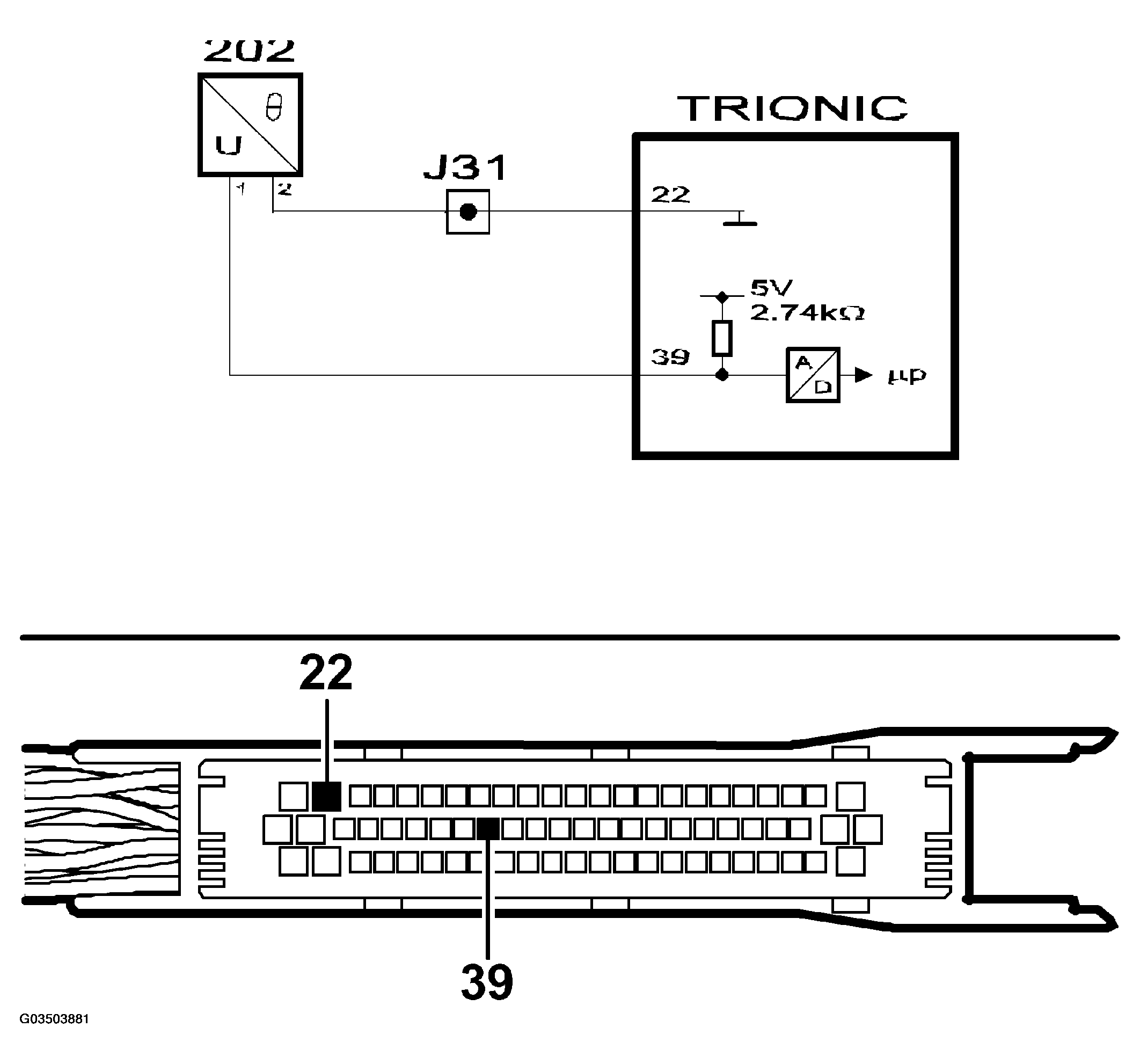

Fig 1: Identifying Engine Coolant Temperature Sensor Circuit Diagram - Short To B+/Open Circuit
G03503881Courtesy of SAAB-SCANIA OF AMERICA, INC.
