Charge Air Control Valve: Installation

  1. Attach the valve to the metal bracket and then to the expanding pin. See Fig 1 .
  2. Connect the hoses to the control valve. Make sure the markings on the hoses correspond with the markings on the control valve.
    3. NOTE: If there was a rubber cap, replace it.
  3. Spray the connector with Kontakt 61 contact cleaner and plug it in.

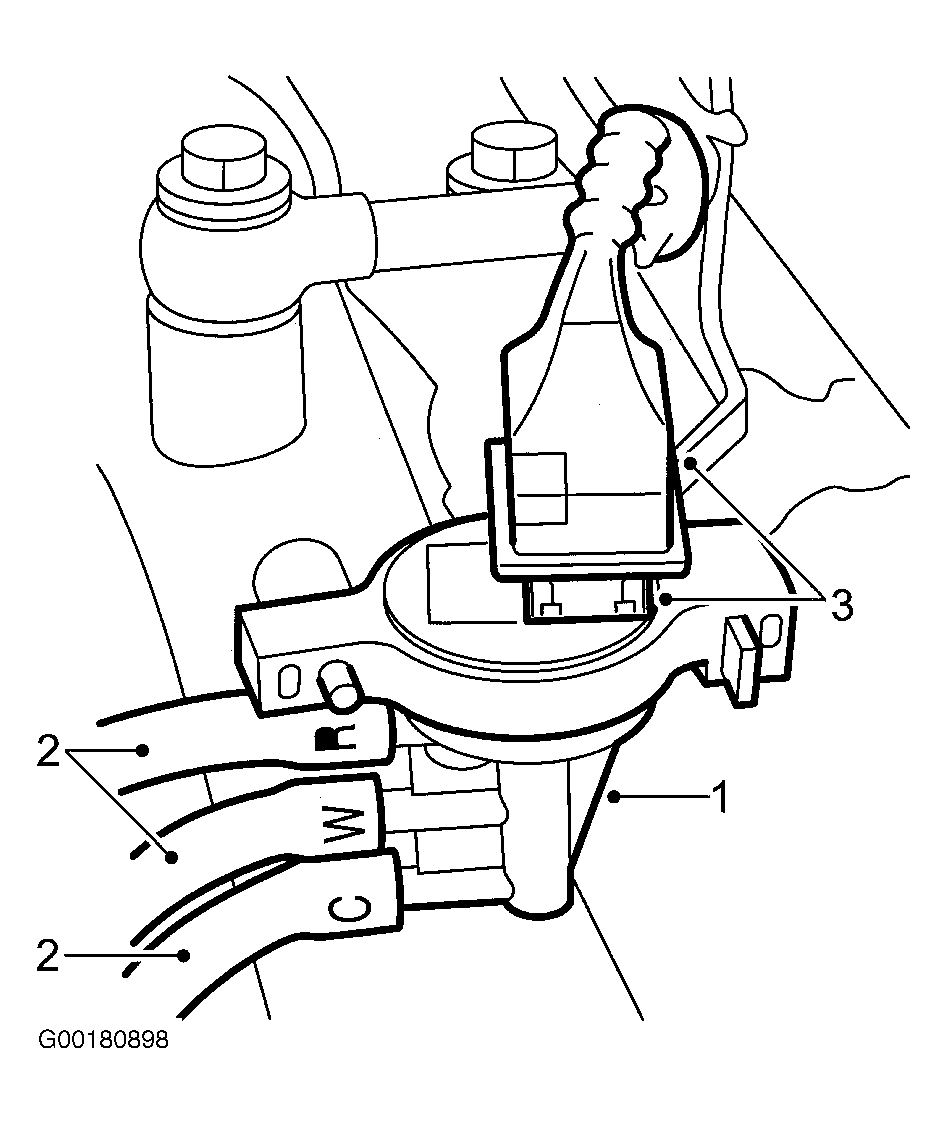

Fig 1: Installing Charge Air Control Valve
G00180898Courtesy of SAAB-SCANIA OF AMERICA, INC.
