Front Oxygen Sensor Removal (B205L/R & B235R)

1. Remove the top engine cover. See Fig 1 .
2. Detach the oxygen sensor connector from the holder. See Fig 2 .
3. Remove the bypass pipe and heat shield.
NOTE: The leads must not be twisted. The oxygen sensor is highly sensitive to knocks and blows and must be handled with care.
4. Cut the cable tie for the oxygen sensor and pull out the cables.
5. Release the oxygen sensor from the turbo outlet pipe.

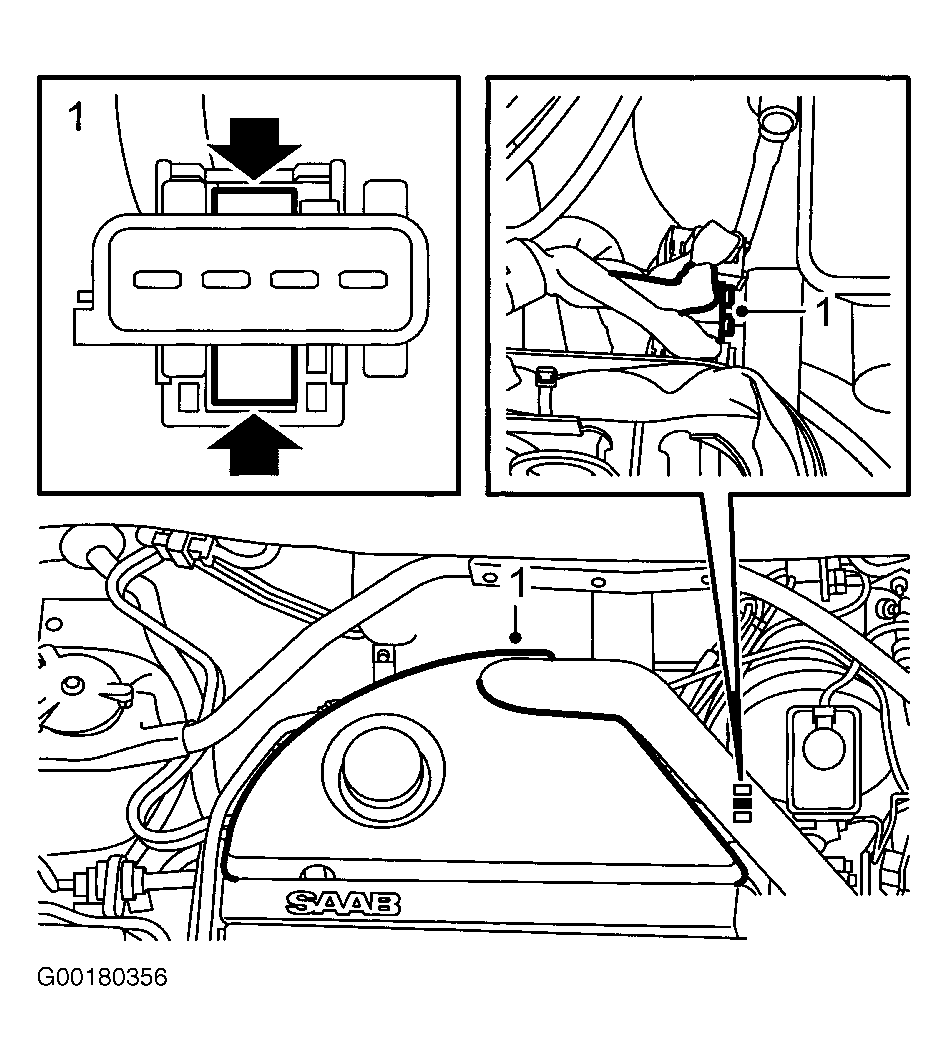

Fig 1: Removing Top Engine Cover (B205L/R & B235R)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

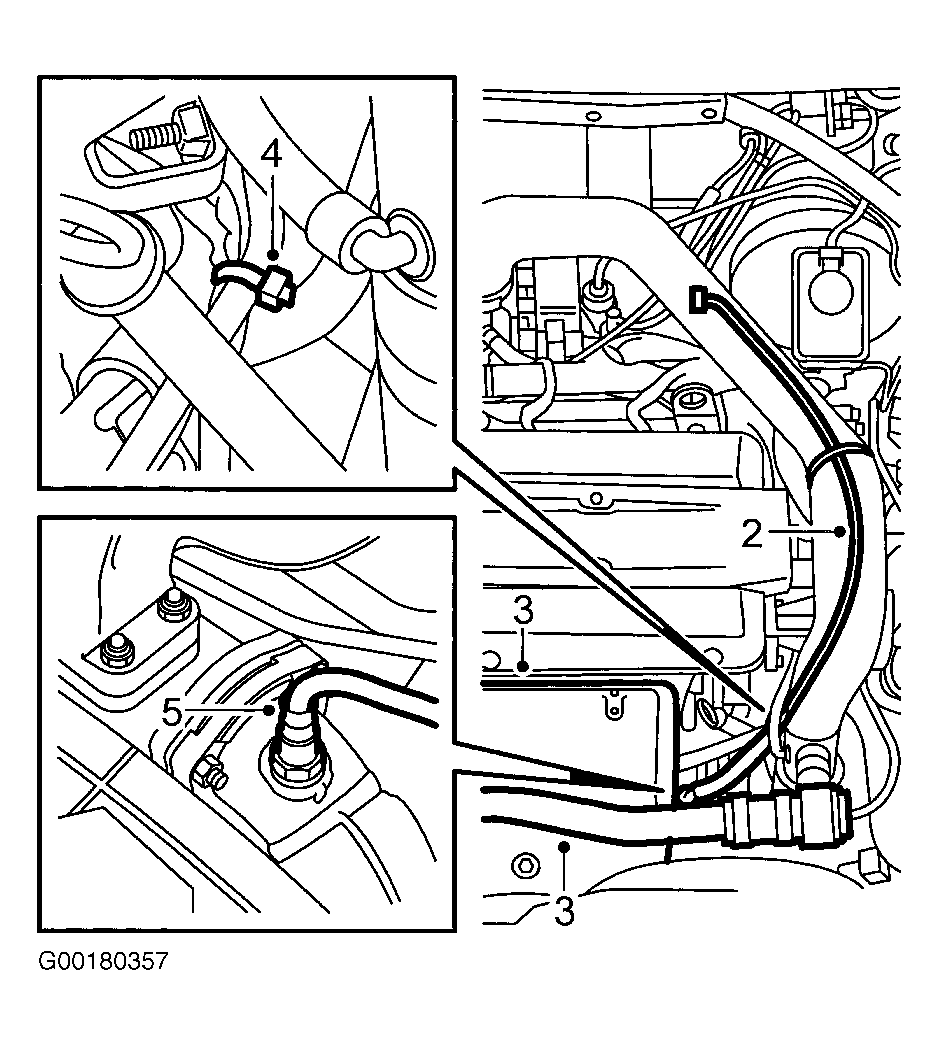

Fig 2: Removing Oxygen Sensor (B205L/R & B235R)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
