Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs System Version 5.4 - Repair >> Component Location >> Connector H33-5 >> RHD

Connector H33-5: RHD

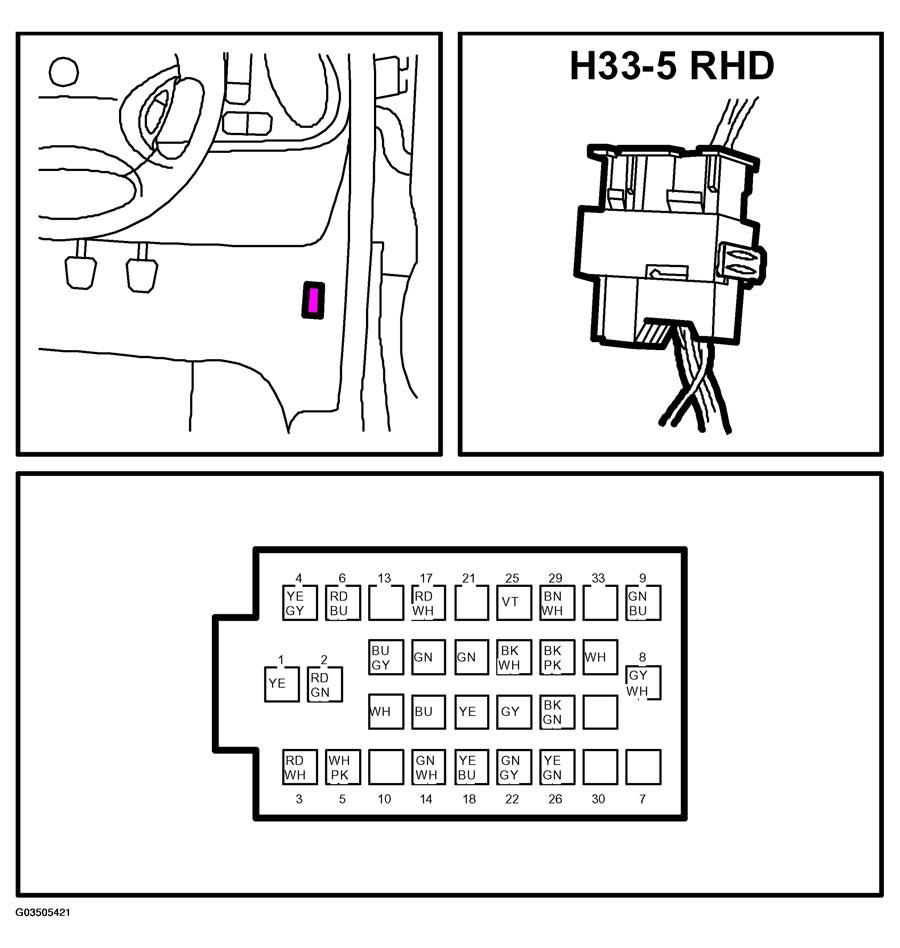

Fig 1: Identifying H33-5 Connector Pinouts And Location (RHD)

G03505421

Courtesy of SAAB-SCANIA OF AMERICA, INC.
