Home >> Saab >> 2001 >> 9-3 Base, 2D Hatchback, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs System Version 5.4 - Repair >> Component Location >> Connector H33-5 >> LHD

Connector H33-5: LHD

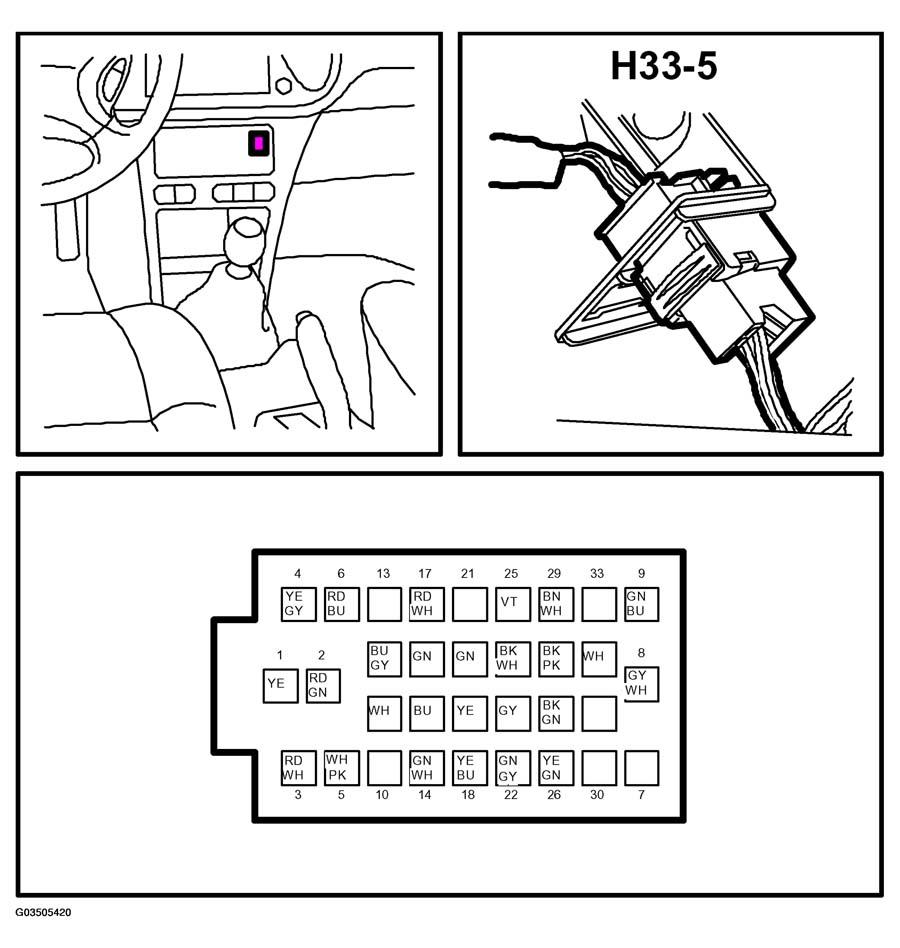

Fig 1: Identifying H33-5 Connector Pinouts And Location (LHD)

G03505420

Courtesy of SAAB-SCANIA OF AMERICA, INC.
