Steering Column: Installation

To install, reverse removal procedure. Ensure lock bolt at steering joint engages groove in shaft.

NOTE: On 9-5 Series, entire left side dash assembly must be removed to access steering column.

To install, reverse removal procedure. When installing shaft, adjust clearance between "U" joint and column to .12-.20" (3.0-5.0 mm). Secure connectors and wiring for air bag and horn to steering column.

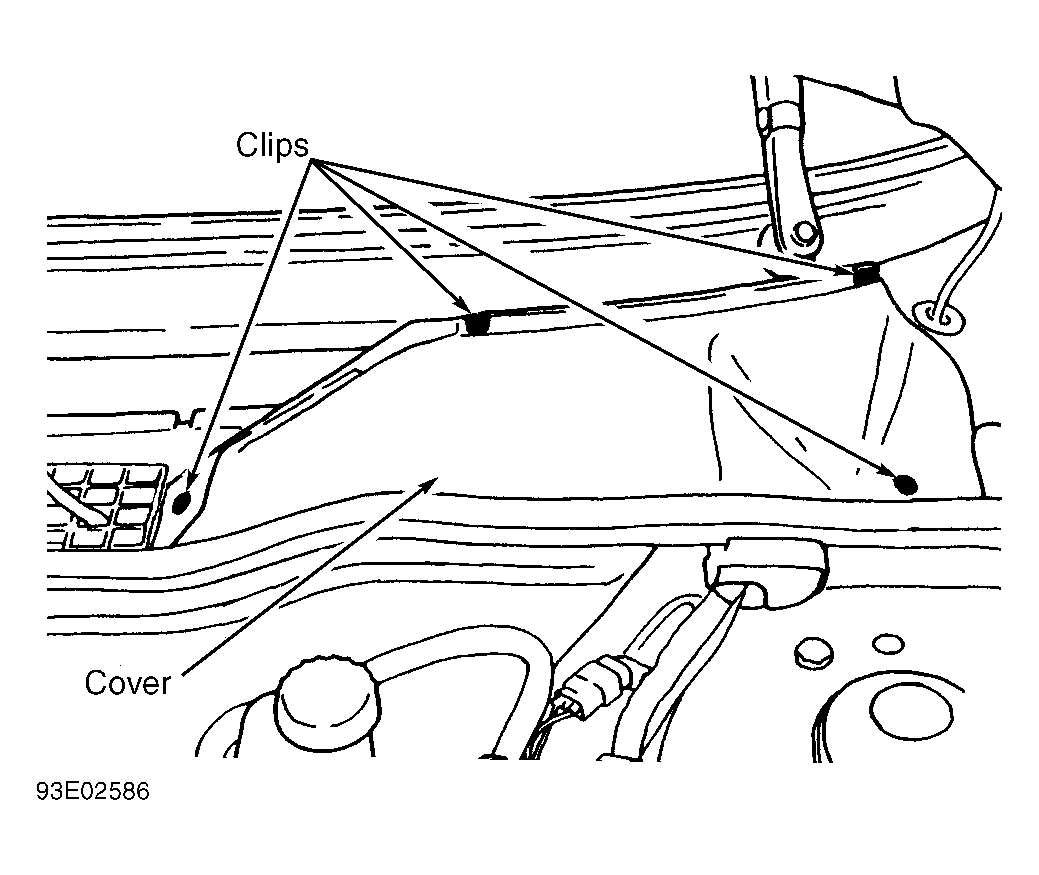

Fig 1: Removing Clips & Cover From Firewall (9-5 Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
