INSTALLING A NEW MODIFICATION IDENTITY PLATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 801-2336, Date of Issue: February 2002

SAAB:	1999- 9-5
MARKET:	US, CA

SUBJECT

Installing a new modification identity plate

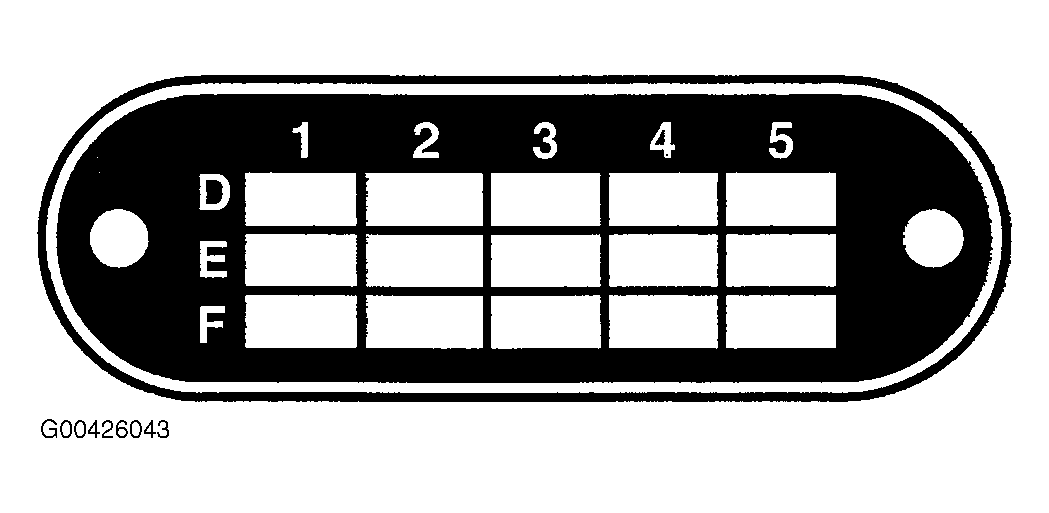

Fig 1: New Modification Identity Plate

CARS AFFECTED

All Saab 9-5 M99-.

BACKGROUND

On some variants of the Saab 9-5, the existing modification identity plate has been filled up with modification information. A new modification identity plate needs therefore to be fitted.

PARTS REQUIRED

49 00 007 (CA: 30567488) Modification identity plate
16-30 15 815 Cleaner FL T875, sufficient for 50-100 cars.

PROCEDURE

Open the luggage compartment. Lift and suspend the floor panel.
5D: Lift up the upholstery covering the spare wheel and hook it onto the tailgate.
4D: Bend the modification identity plate into a gentle arc against the sill.

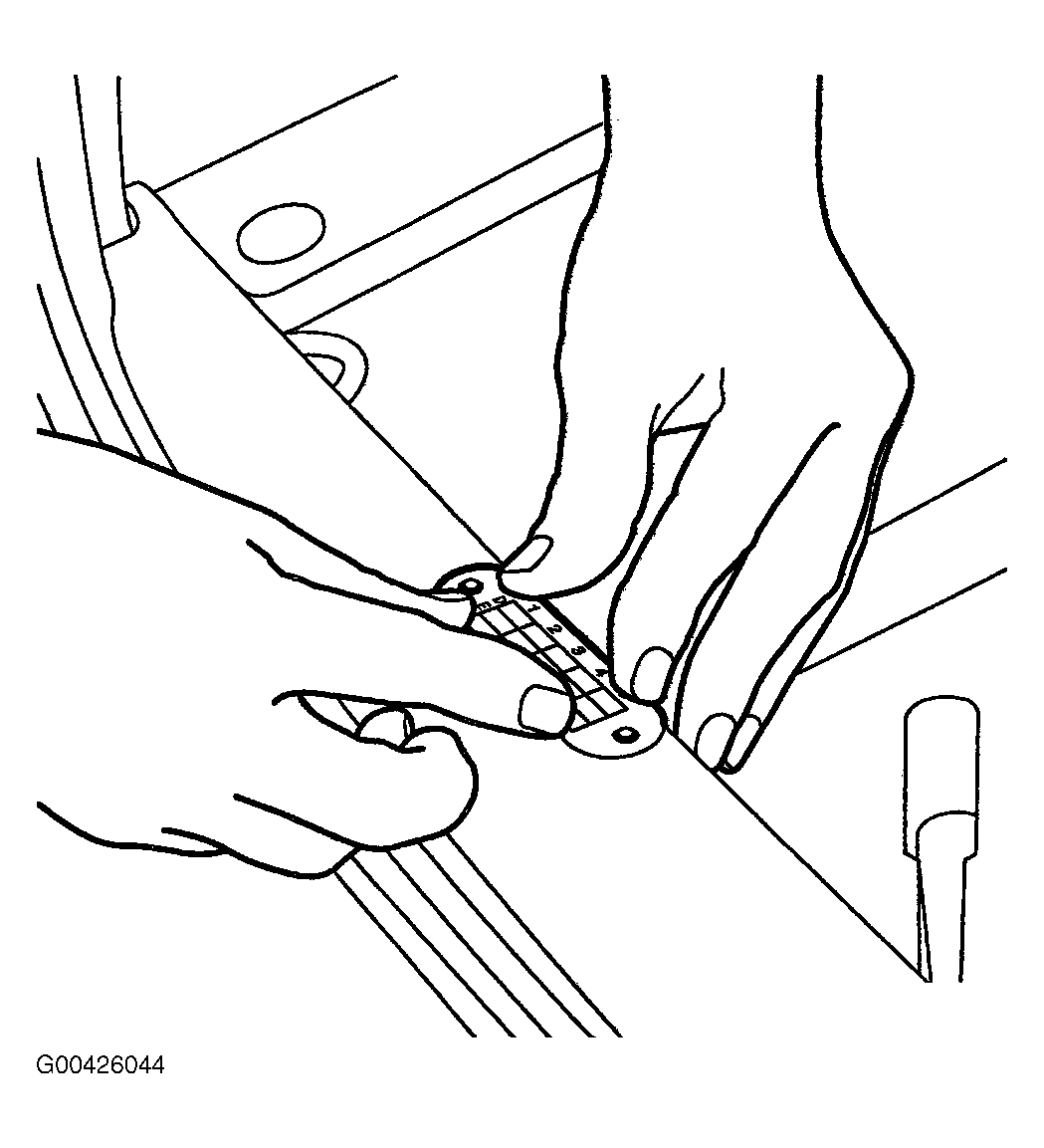

Fig 2: Bending Modification Identity Plate

Clean the area for the plate with Teroson FL T875. Remove the protective plastic backing from the plate.
4D: Press the modification identity plate into place as shown in Fig 3 .

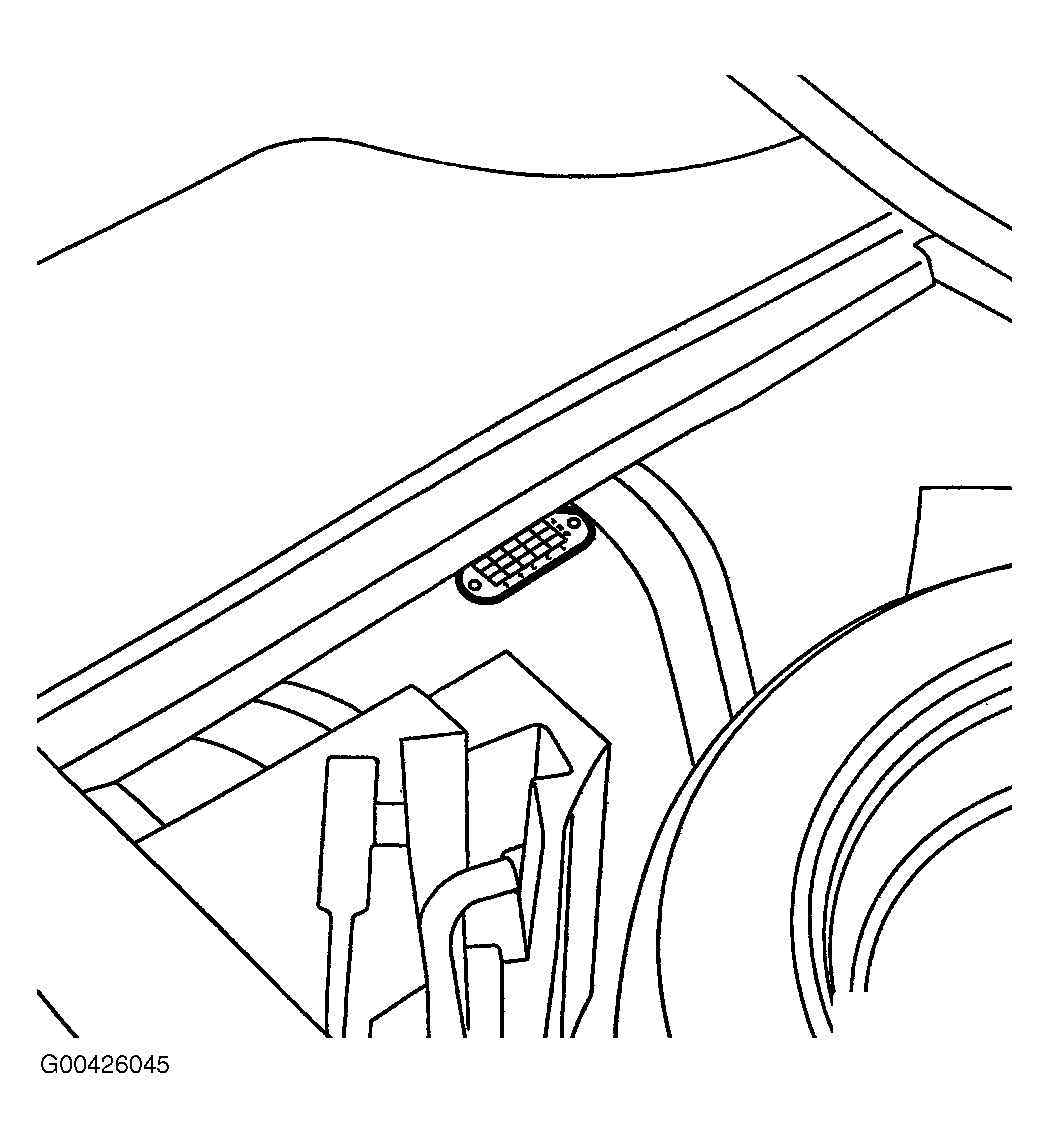

Fig 3: Installing Modification Identity Plate - 4D

5D: Press the modification identity plate into place as shown in Fig 4 . Refit the upholstery over the spare wheel.

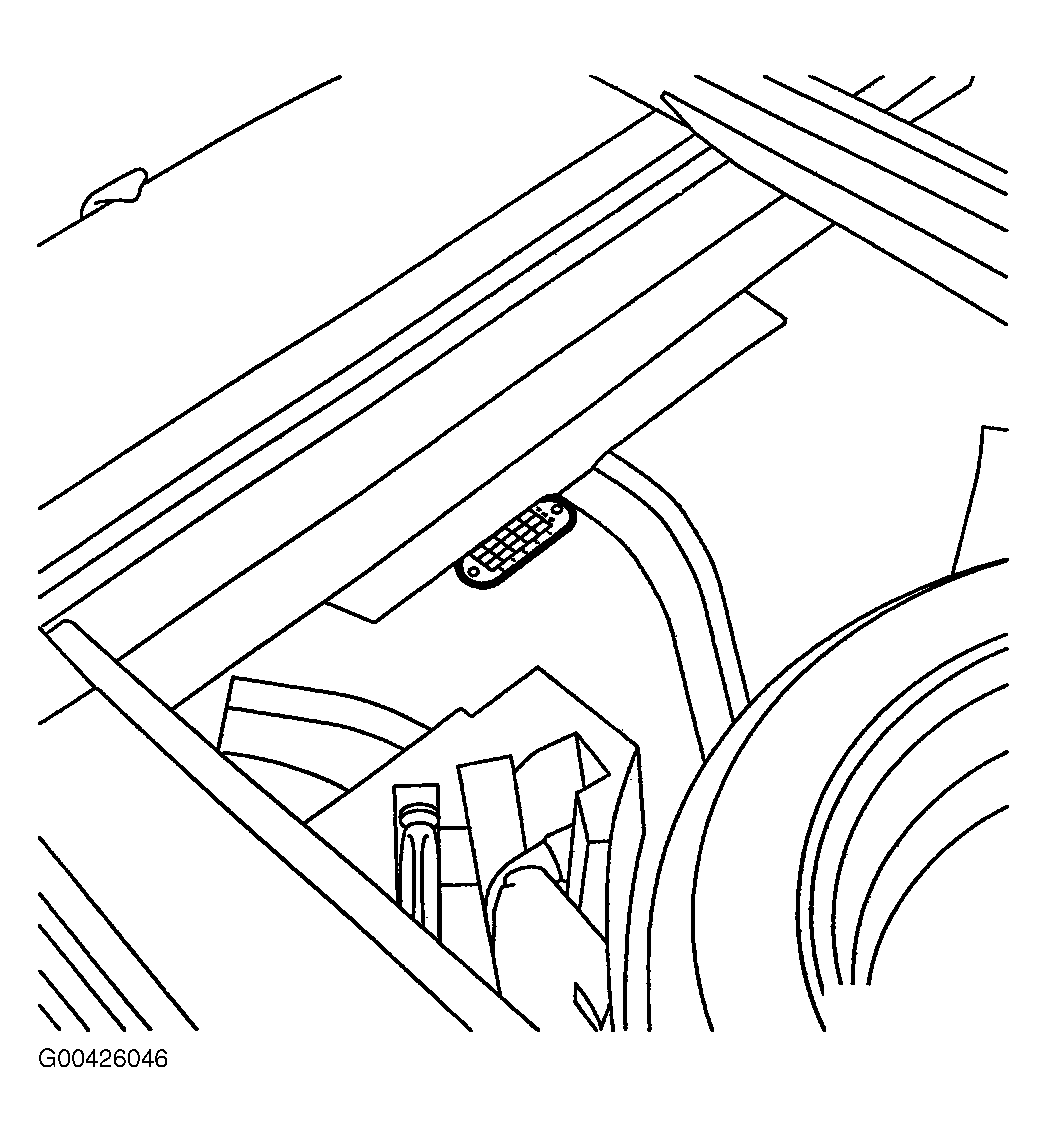

Fig 4: Installing Modification Identity Plate - 5D

Lower the floor panel and close the luggage compartment.

TIME/WARRANTY INFORMATION

If an extra modification identity plate is needed, submit a claim using the following information:

Failed Object: 85598
Fault/Reason code: 03
Location code: 9
Repair/Action code: 10
Labor Operation: 8559801 (CA: B7010)
Time: 0.2 hr
