Grounding Point G41S: Notes

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

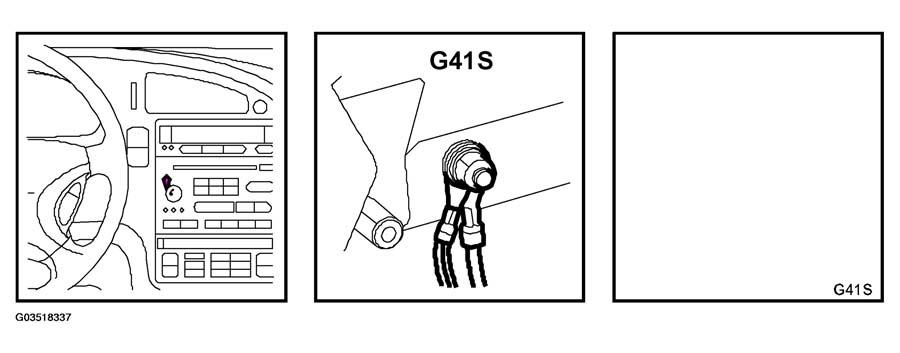

Fig 1: Identifying Grounding Point G41S

Courtesy of SAAB-SCANIA OF AMERICA, INC.

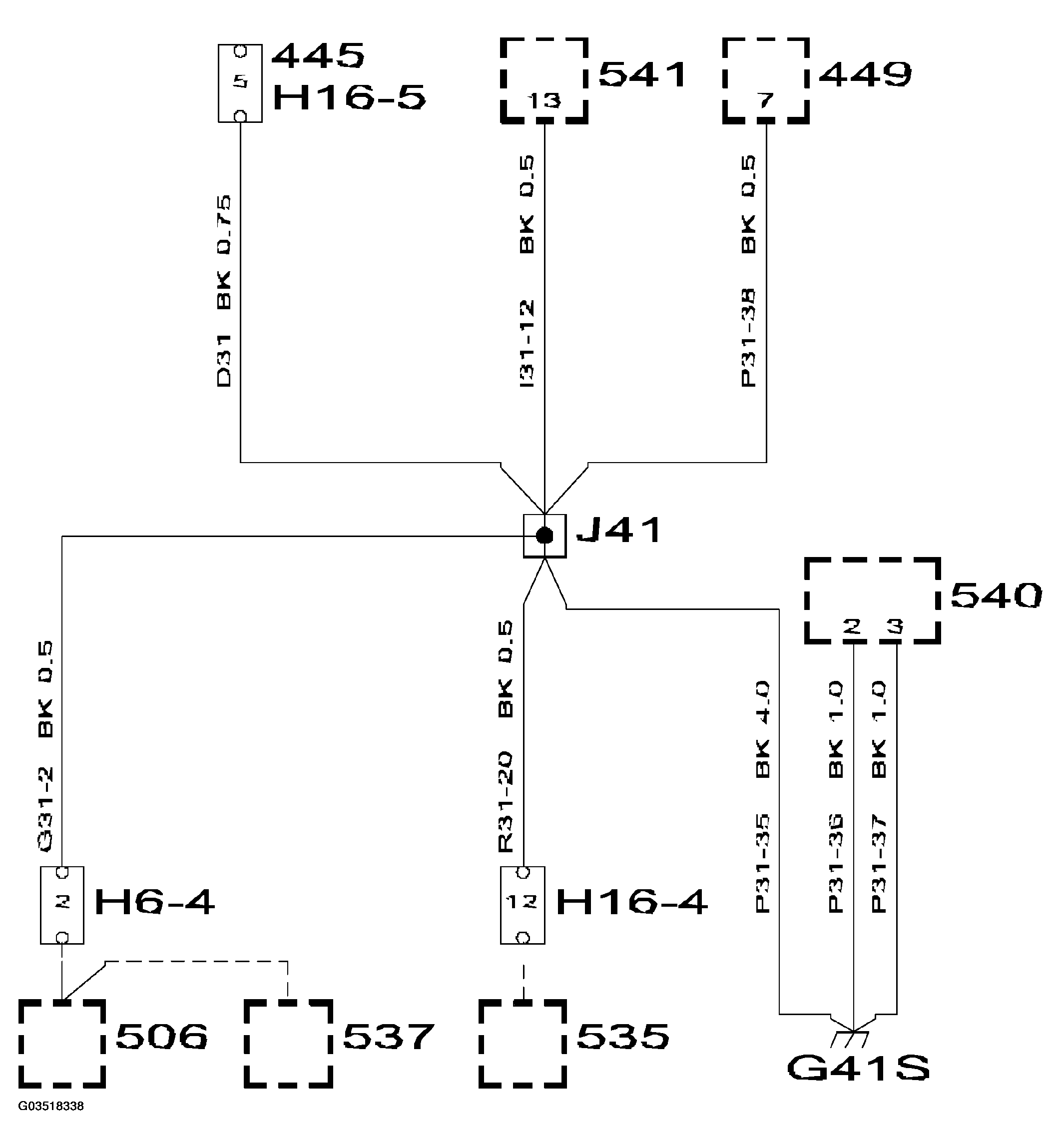

Fig 2: Circuit Diagram Grounding Point G41S

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: On the left-hand ground screw in the middle of the knee member (in the interior).
