Grounding Point G30: Notes

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Grounding Point G30

Courtesy of SAAB-SCANIA OF AMERICA, INC.

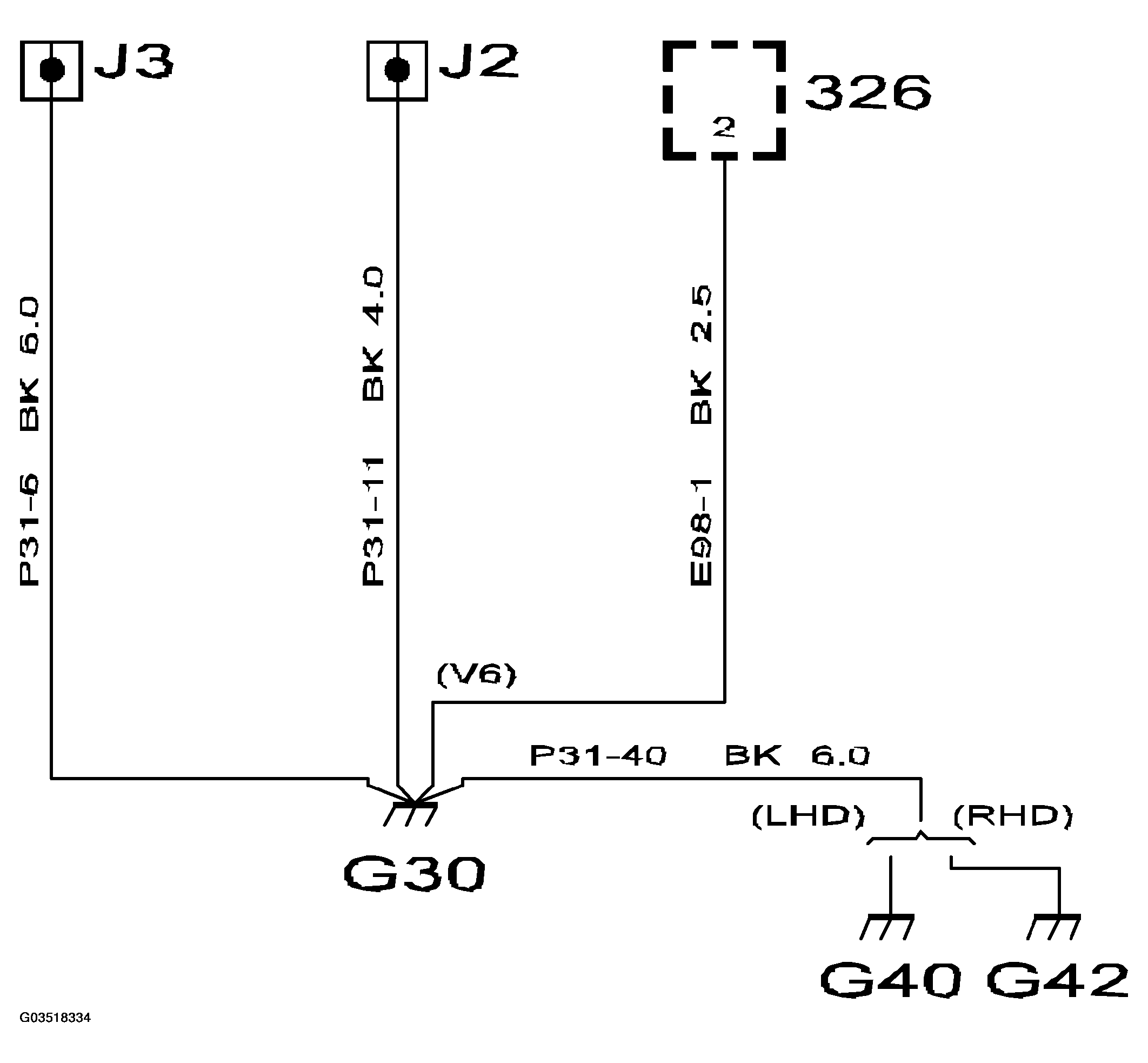

Fig 2: Circuit Diagram Grounding Point G30

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location: In the engine bay on the side panel in front of the left-hand wheel housing
