To fit

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

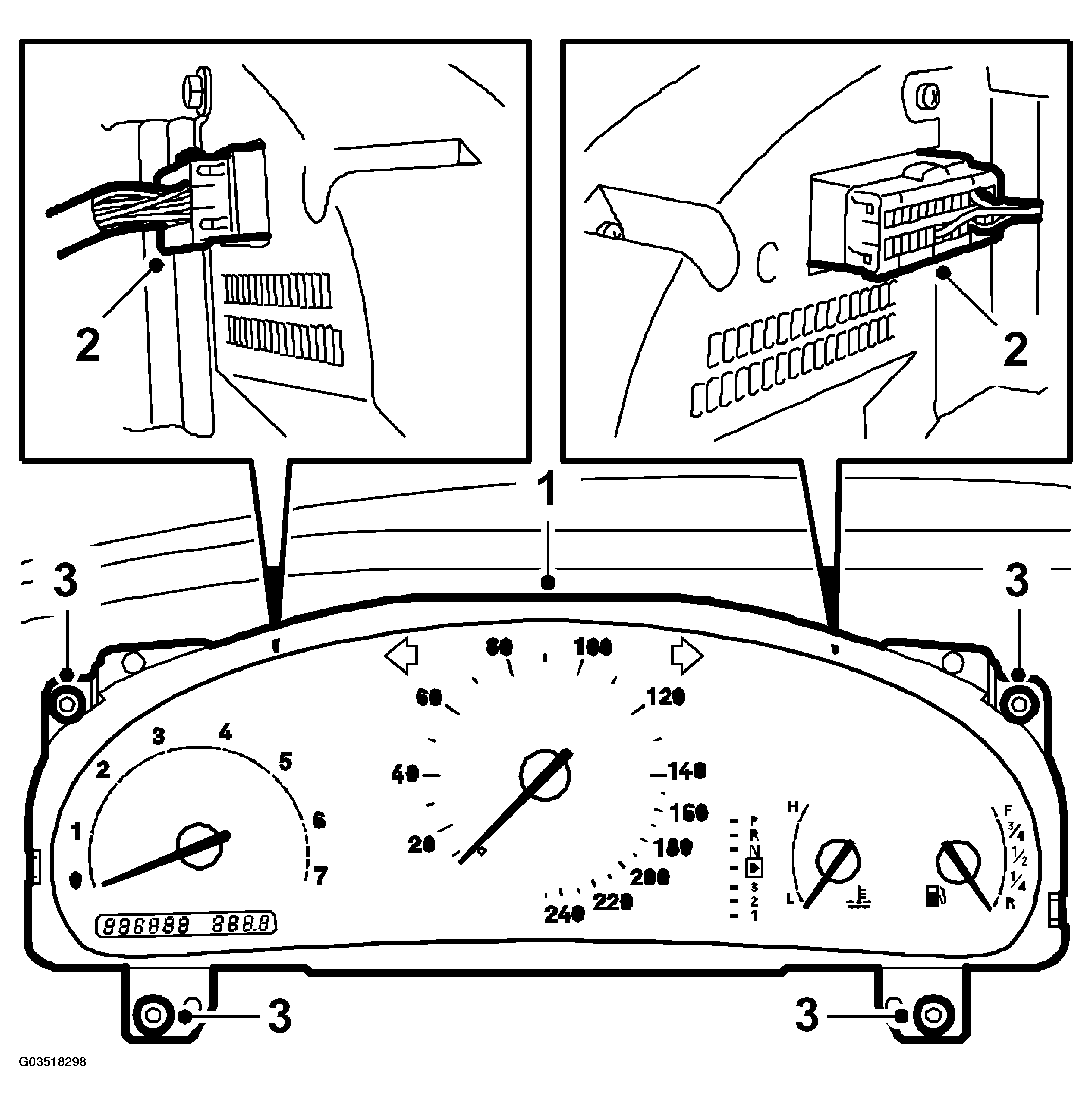

Fig 1: Illustration For Step 1-3
G03518298Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Put the main instrument unit into position.
  2. Plug in the two connectors, one 24-pin and one 12 -pin.
  3. Screw in the four screws securing the main instrument unit.
  4. Fit the dashboard, 6 screws and 4 clips.

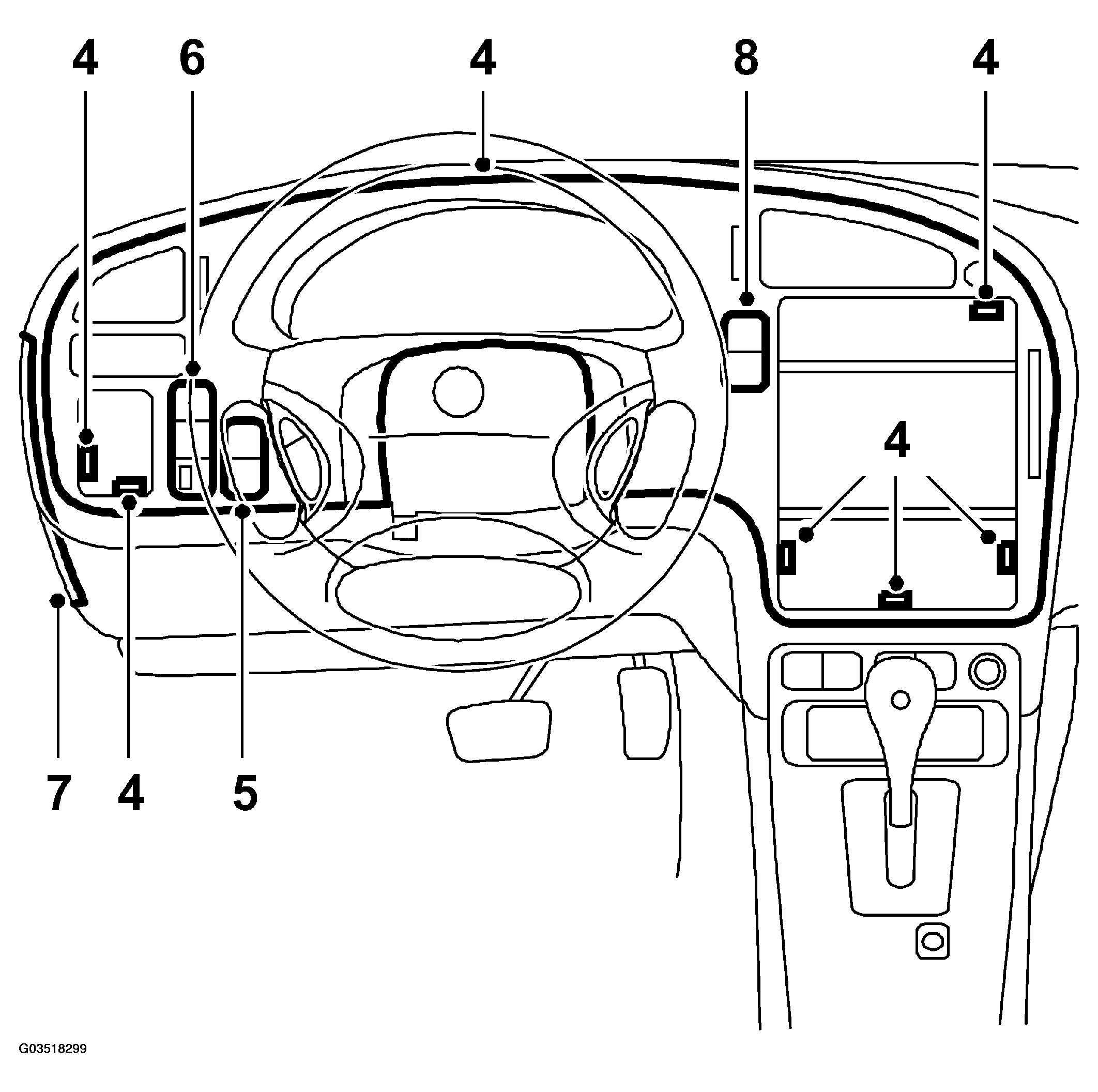

    Fig 2: Illustration For Step 4-8
    G03518299Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the two button blanks.
  6. Fit the three lamp connectors. Make sure to fit them in the correct order. Put back the lights switch unit and plug in the connector for the lights switches.
  7. Fit the cover over the fuses.
  8. Fit the switches (to the right of the steering wheel).
  9. Fit the ACC/heating and ventilation unit.

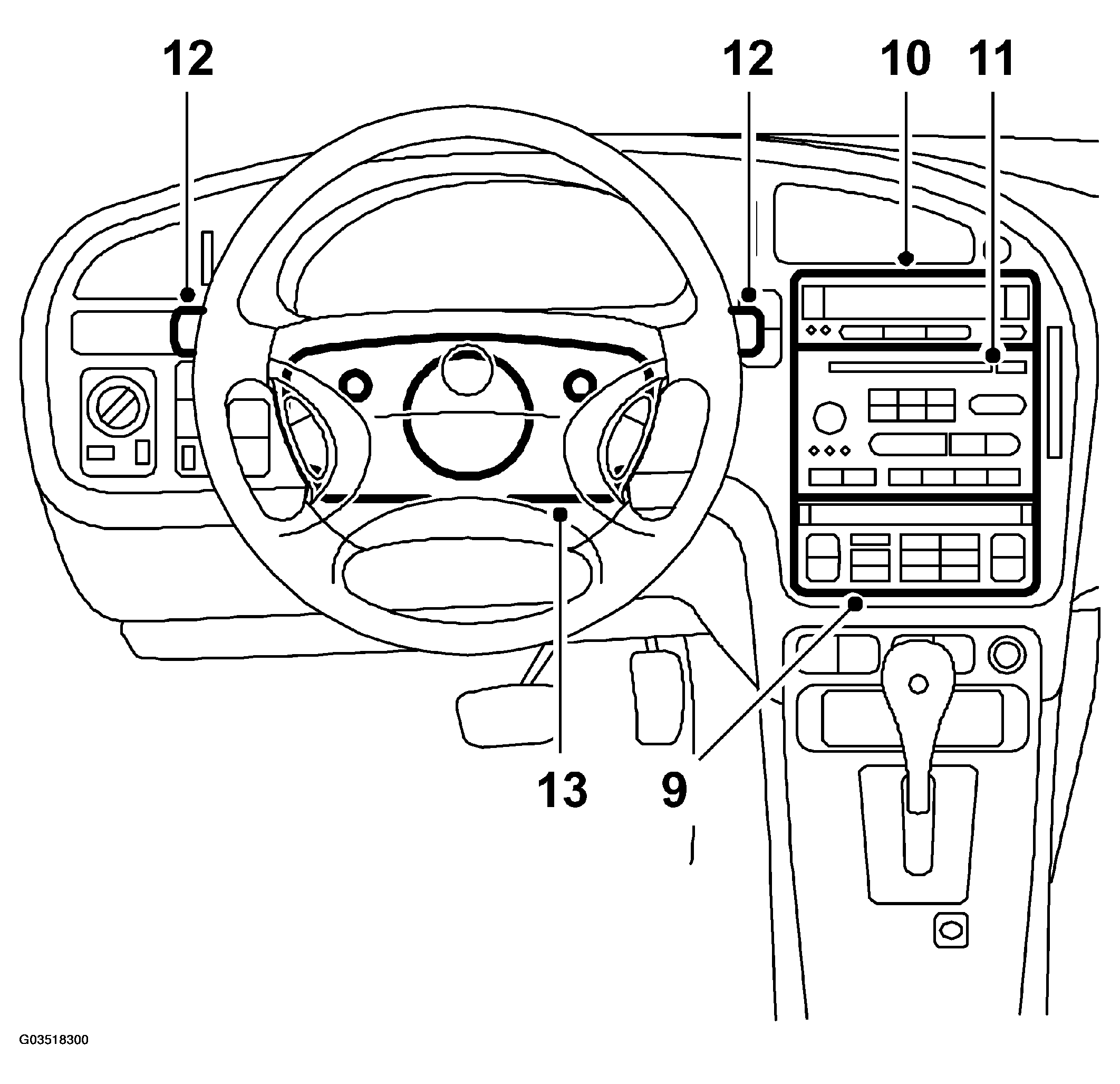

    Fig 3: Illustration For Step 9-13
    G03518300Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Fit the SID unit.
  11. Fit the radio.
  12. Plug in the connectors for the direction indicators and windscreen wipers and fit the stalk switches.
  13. Fit the upper and lower steering column cowls.
