Main components

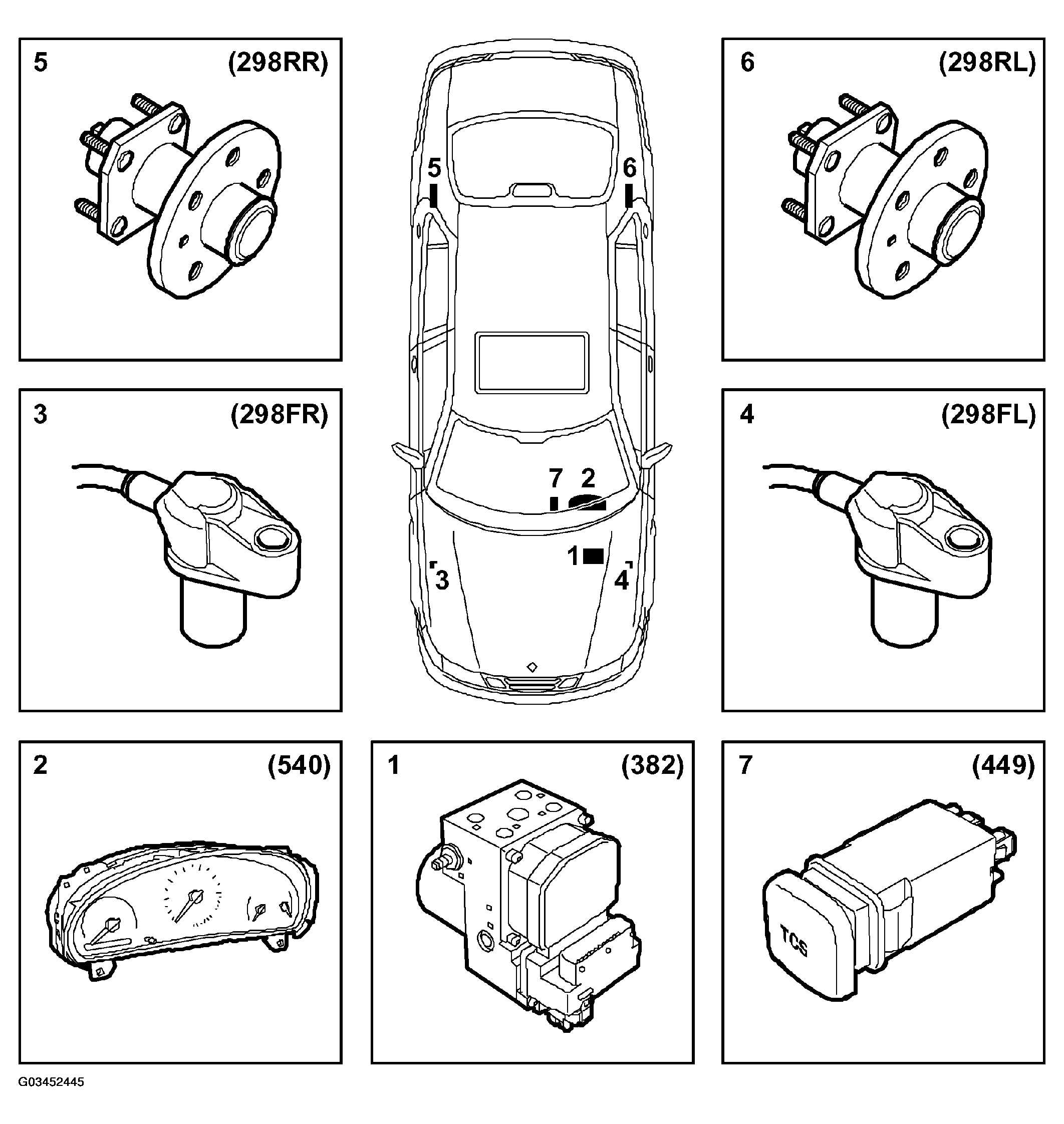

Fig 1: Identifying Main Components Of System
G03452445
  1. Hydraulic unit with control module, valve housing and return pump (382)
  2. Hydraulic unit (540)
  3. Speed sensor, front right
  4. Speed sensor, front left
  5. Speed sensor, rear right
  6. Speed sensor, rear left
  7. Switch, TCS
