To Remove

  1. Unplug the connector.

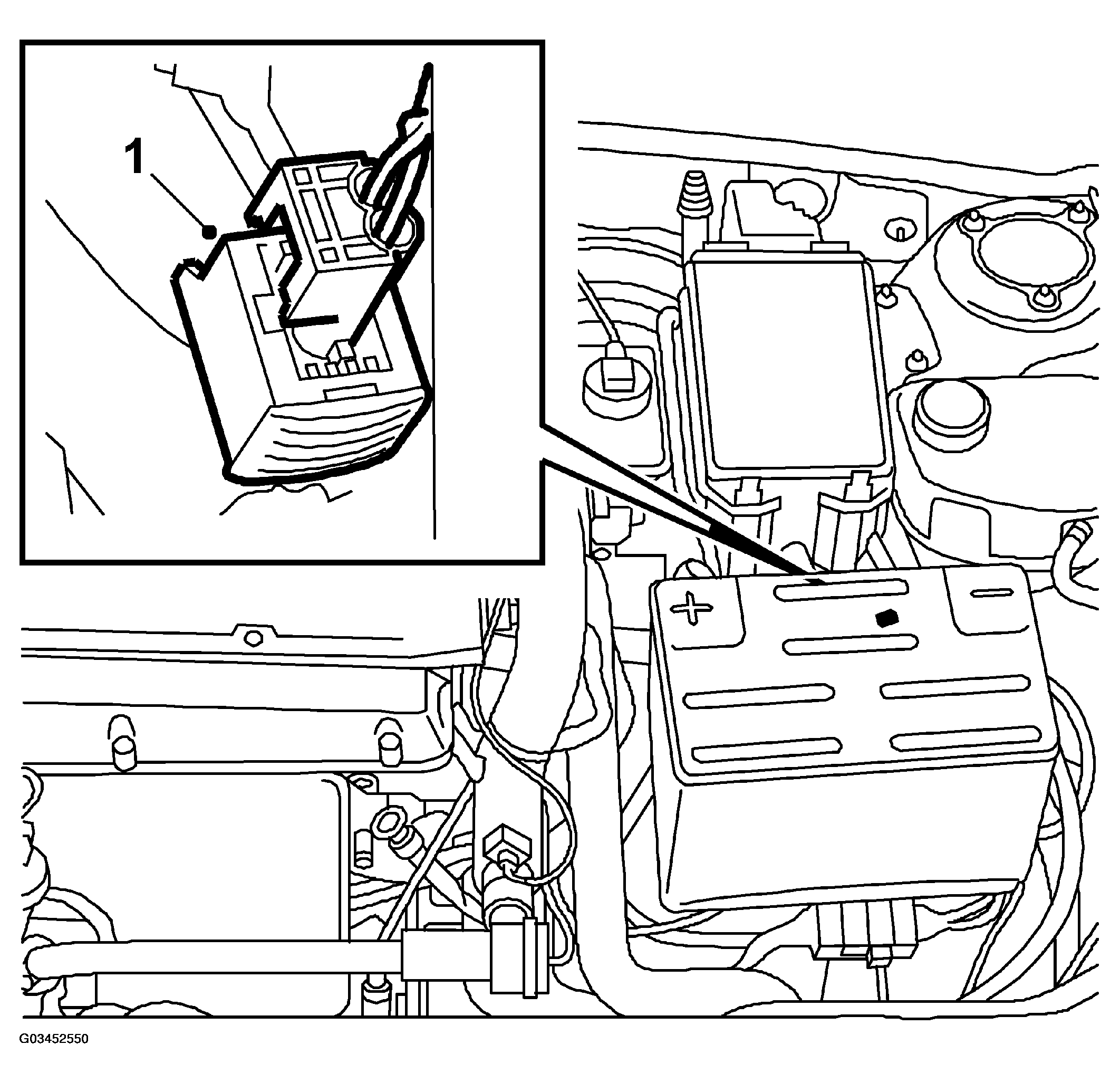

    Fig 1: Unplugging Connector (Wheel Sensor, Front Left)
    G03452550
  2. Raise the car and remove the wheel.
  3. Clean the area round the wheel sensor using a soft wire brush.
  4. Undo the wheel sensor retaining bolt and remove the wheel sensor.

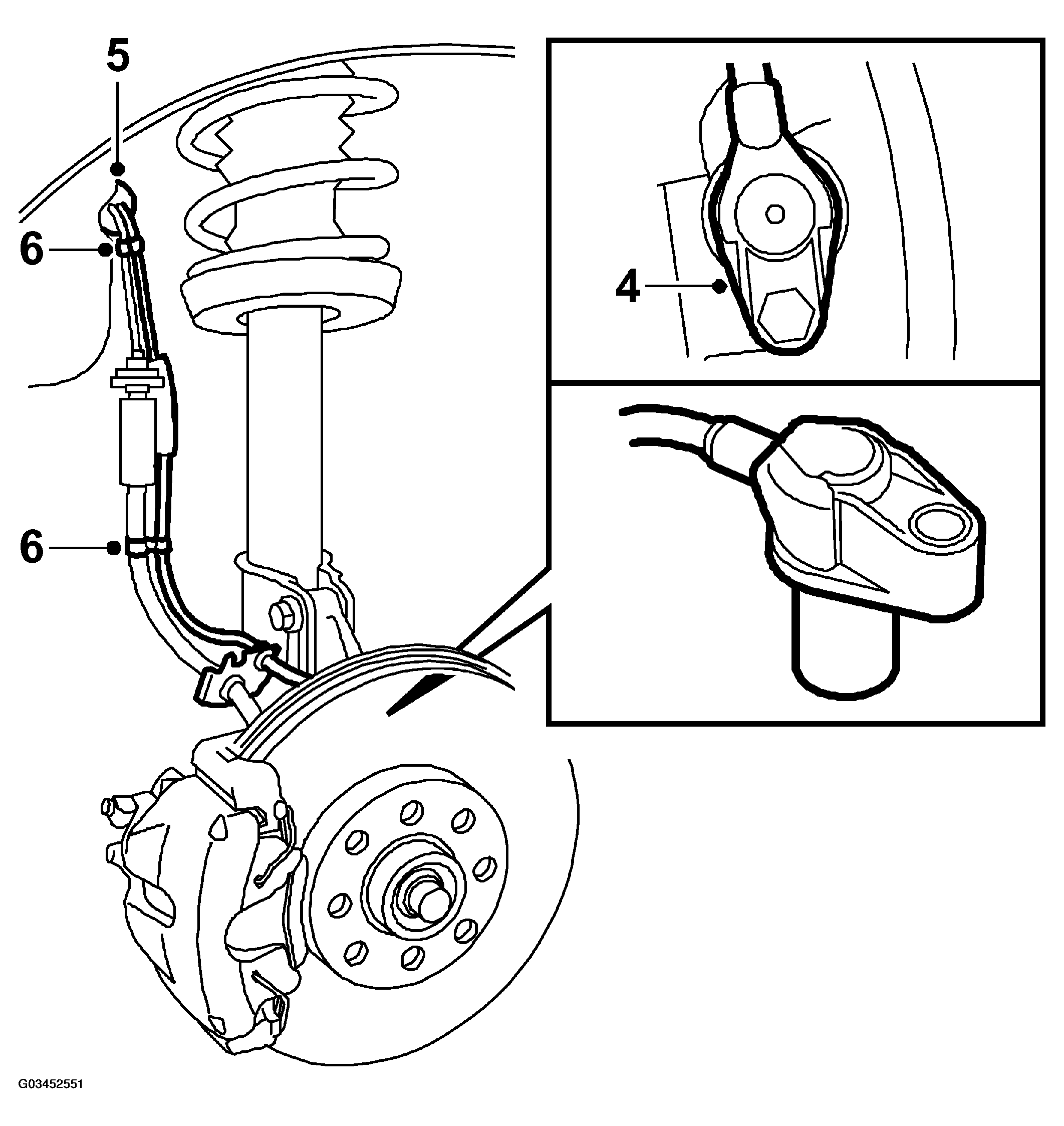

    Fig 2: Removing Front Left Wheel Sensor
    G03452551
  5. Remove the grommet and withdraw the lead.
  6. Detach the lead from the clips and lift out the sensor.
