Technical Description: Siren: Notes

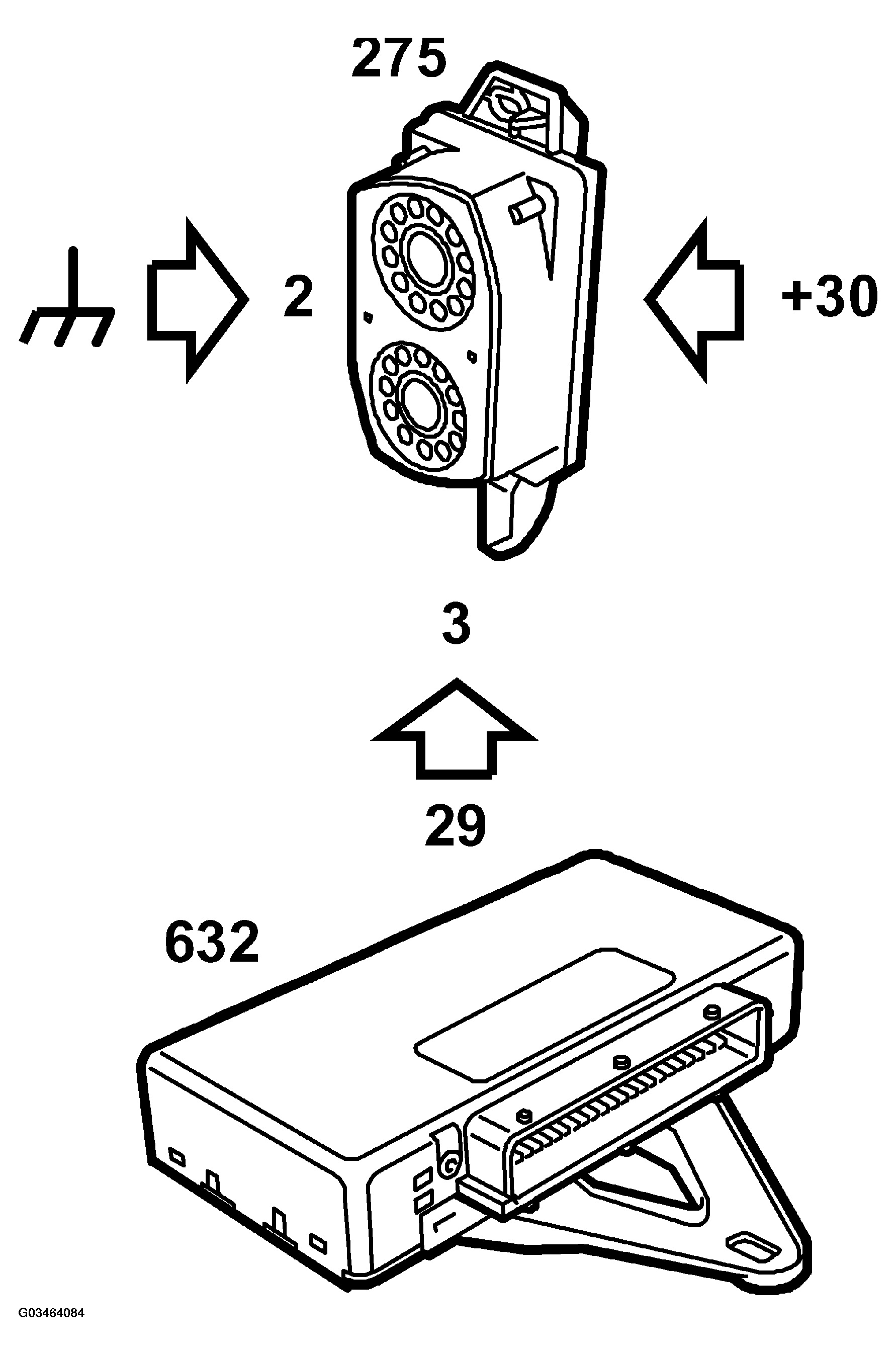

Fig 1: Identifying Siren
Courtesy of SAAB-SCANIA OF AMERICA, INC.

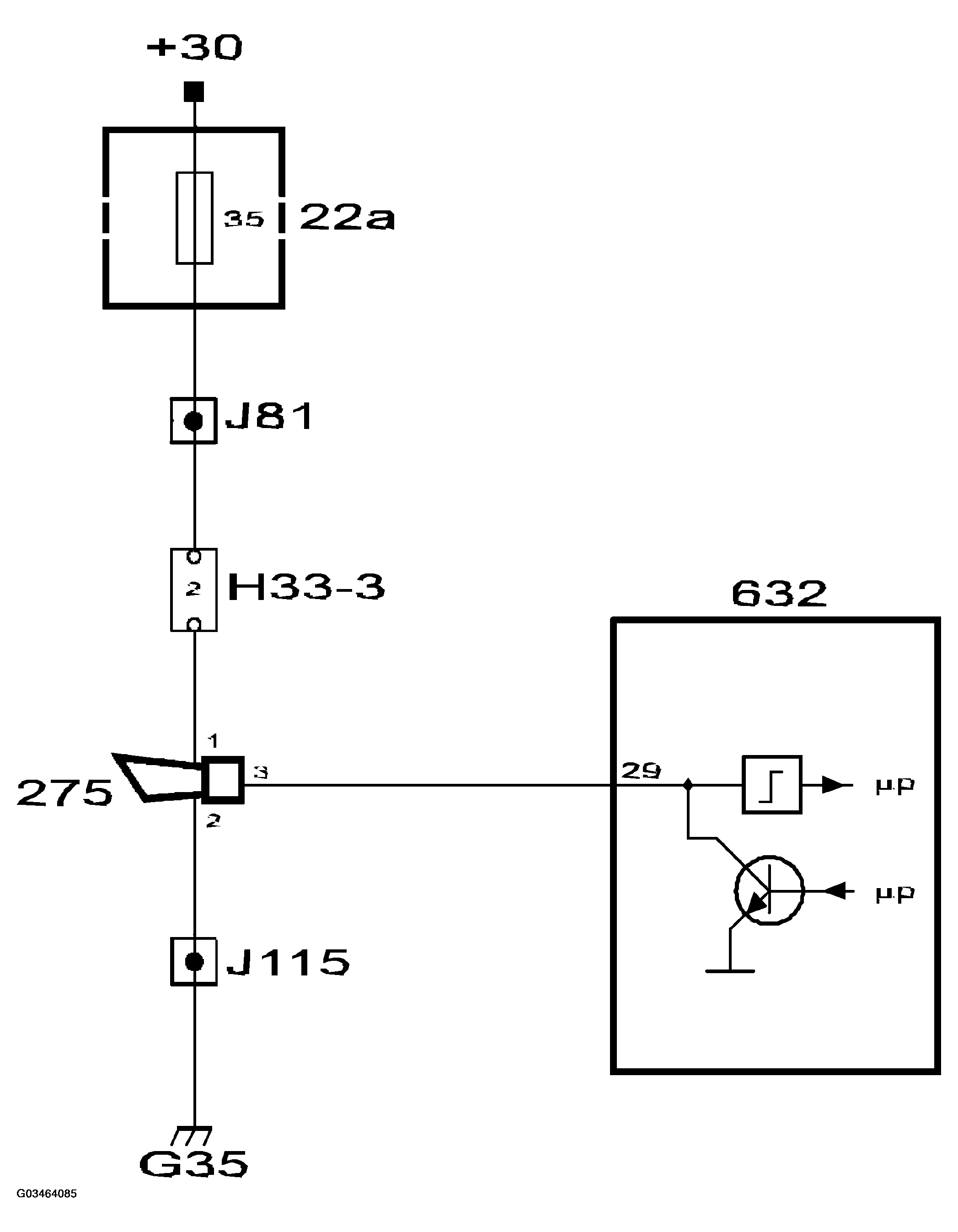

Fig 2: Siren - Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
