Control module inputs for the immobilizer

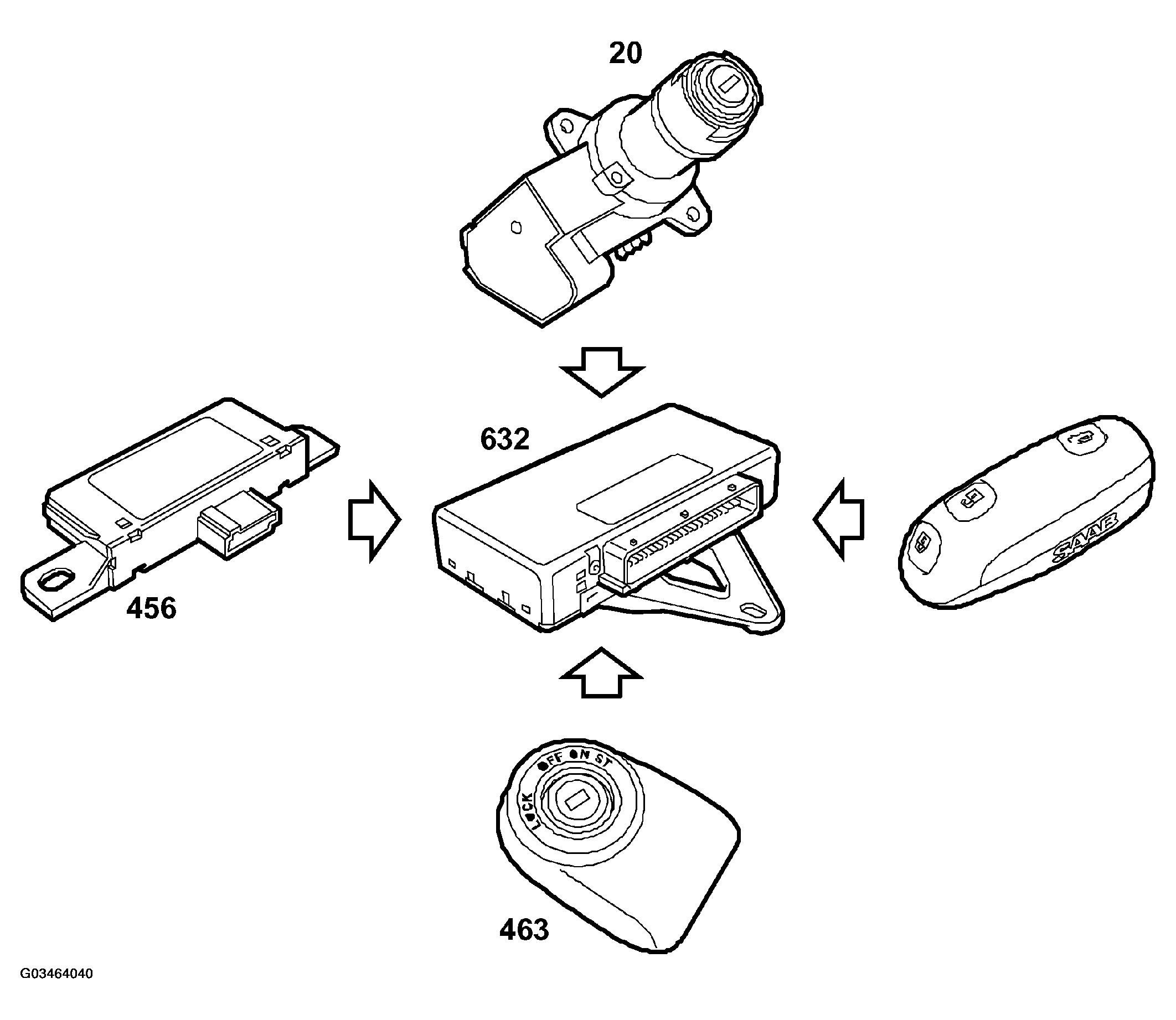

Fig 1: Identifying Control Module Inputs For Immobilizer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Car key
• Antenna unit, immobilizer (463)
• Antenna, remote control, central locking system (456)
• Ignition switch (20)
