Technical Data: Siren

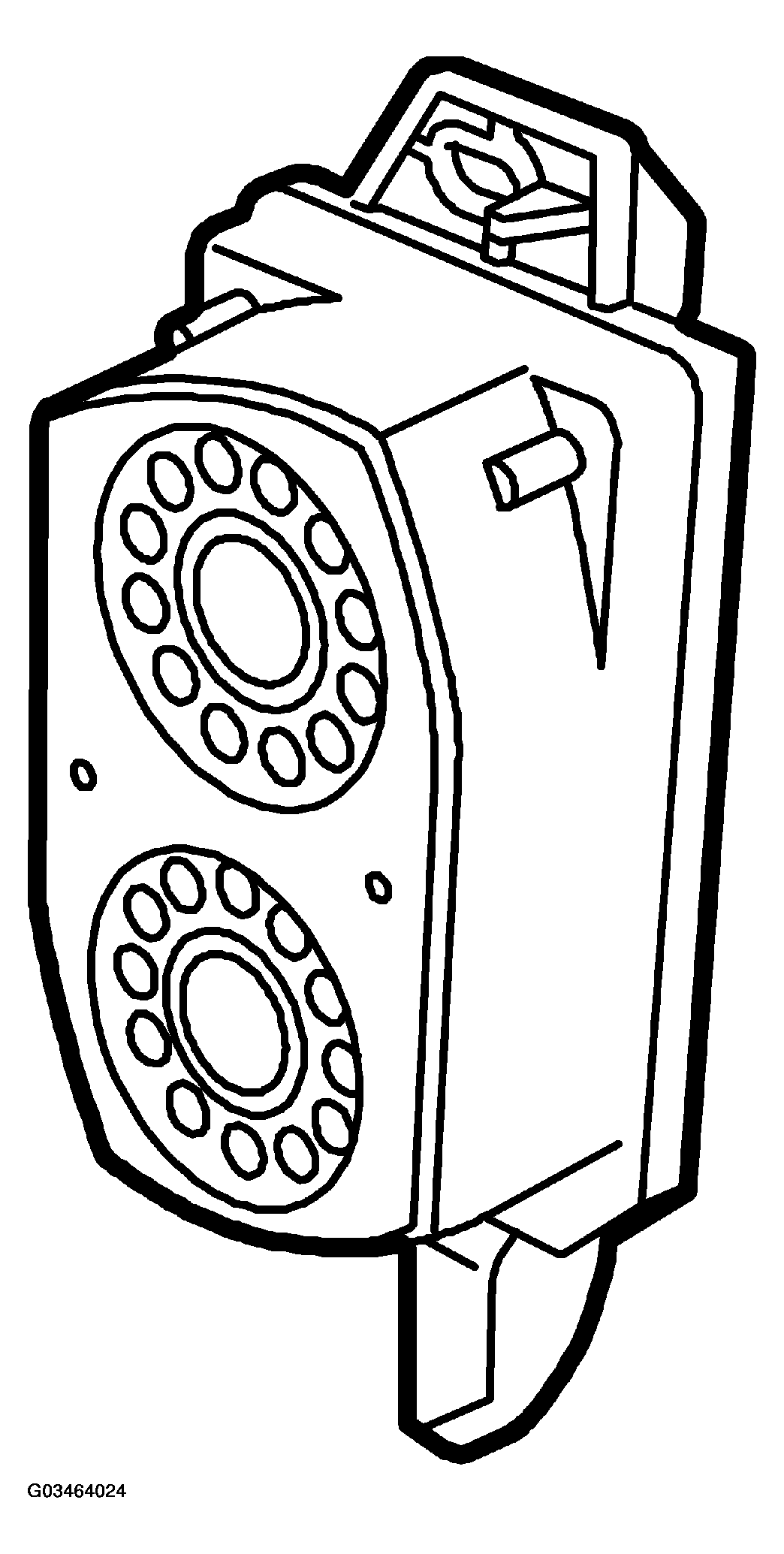

Fig 1: View Of Siren
G03464024Courtesy of SAAB-SCANIA OF AMERICA, INC.
SIREN LOCATION AND TYPE

Location   LH front wheel housing (rear edge)
Type   Piezo-electric with battery back -up
Power supply: Pin No. 1
Communication Pin No. 3
Ground Pin No. 2
Sound pressure 1 metre in front of car dB (A) 100
