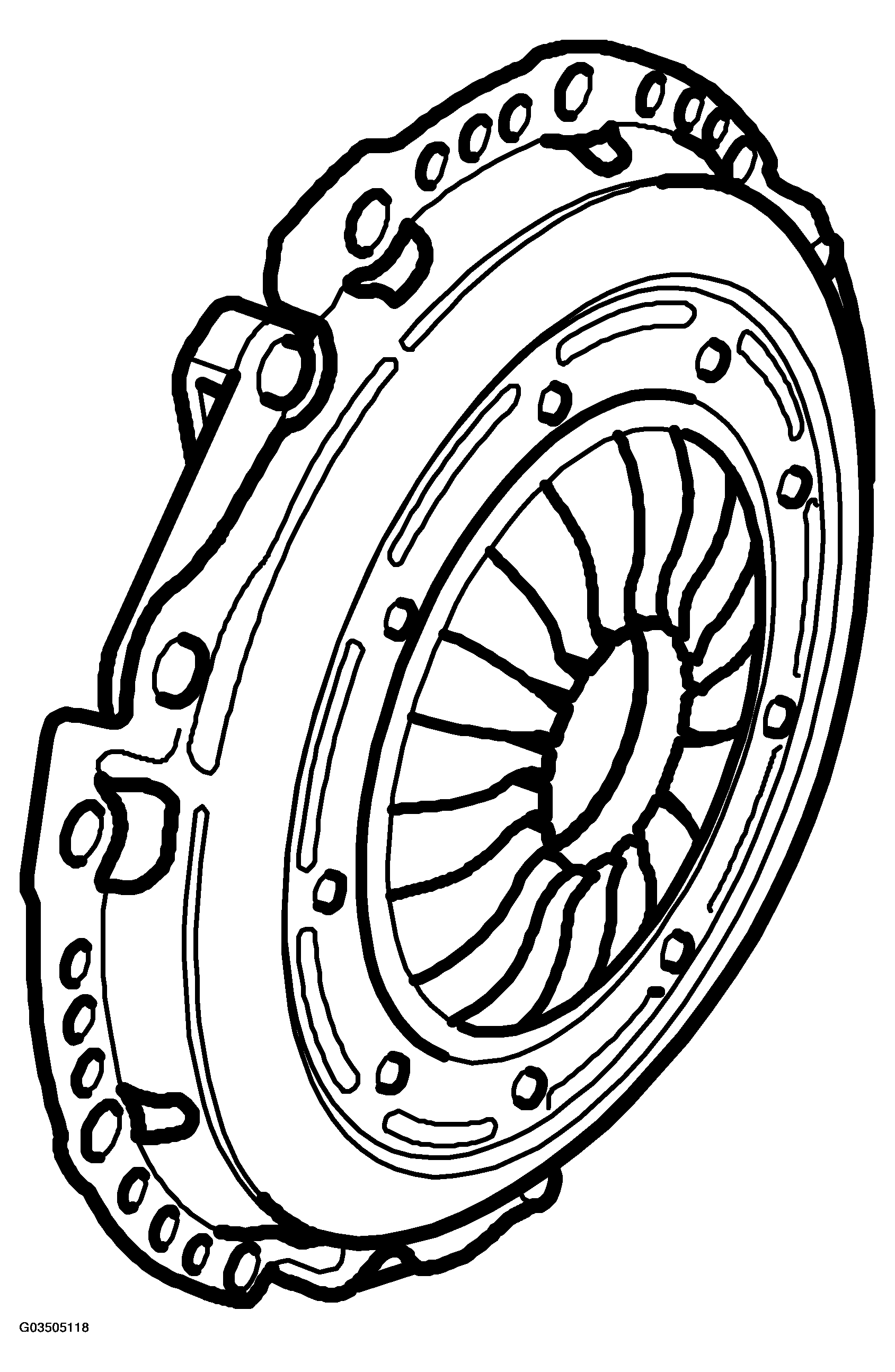

Pressure plate
Courtesy of SAAB-SCANIA OF AMERICA, INC. PRESSURE PLATE - TECHNICAL SPECIFICATIONS
| Make |
Fichtel & Sachs |
| Type |
Diaphragm spring type |
| Diameter |
mm |
228 |
| Clamping force, B205E |
N |
6100 |
| Clamping force, B205R/L |
N |
6100 |
| Clamping force, D223L |
N |
6250 |
| Clamping force, B235R |
N |
6800 |
