To remove

  1. Remove the gearbox, see MANUAL GEARBOX .

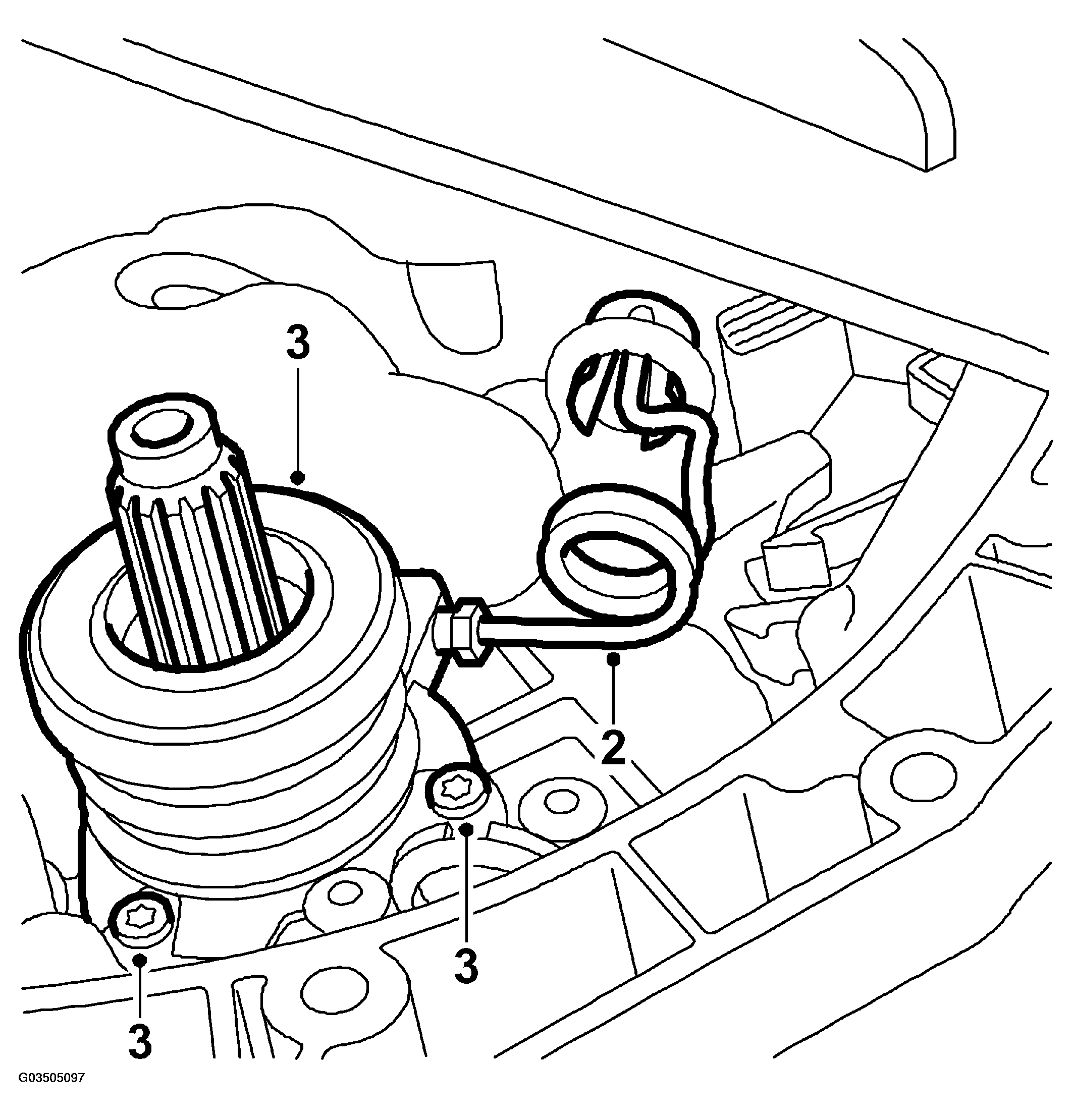

    Fig 1: Illustration For Step 2-3
    G03505097Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the delivery pipe.
  3. Remove the three slave cylinder retaining bolts and pull out the slave cylinder.
