To remove

  1. Empty the clutch system (brake fluid) through the bleed nipple on the slave cylinder with 88 19 096 BLEEDING EQUIPMENT

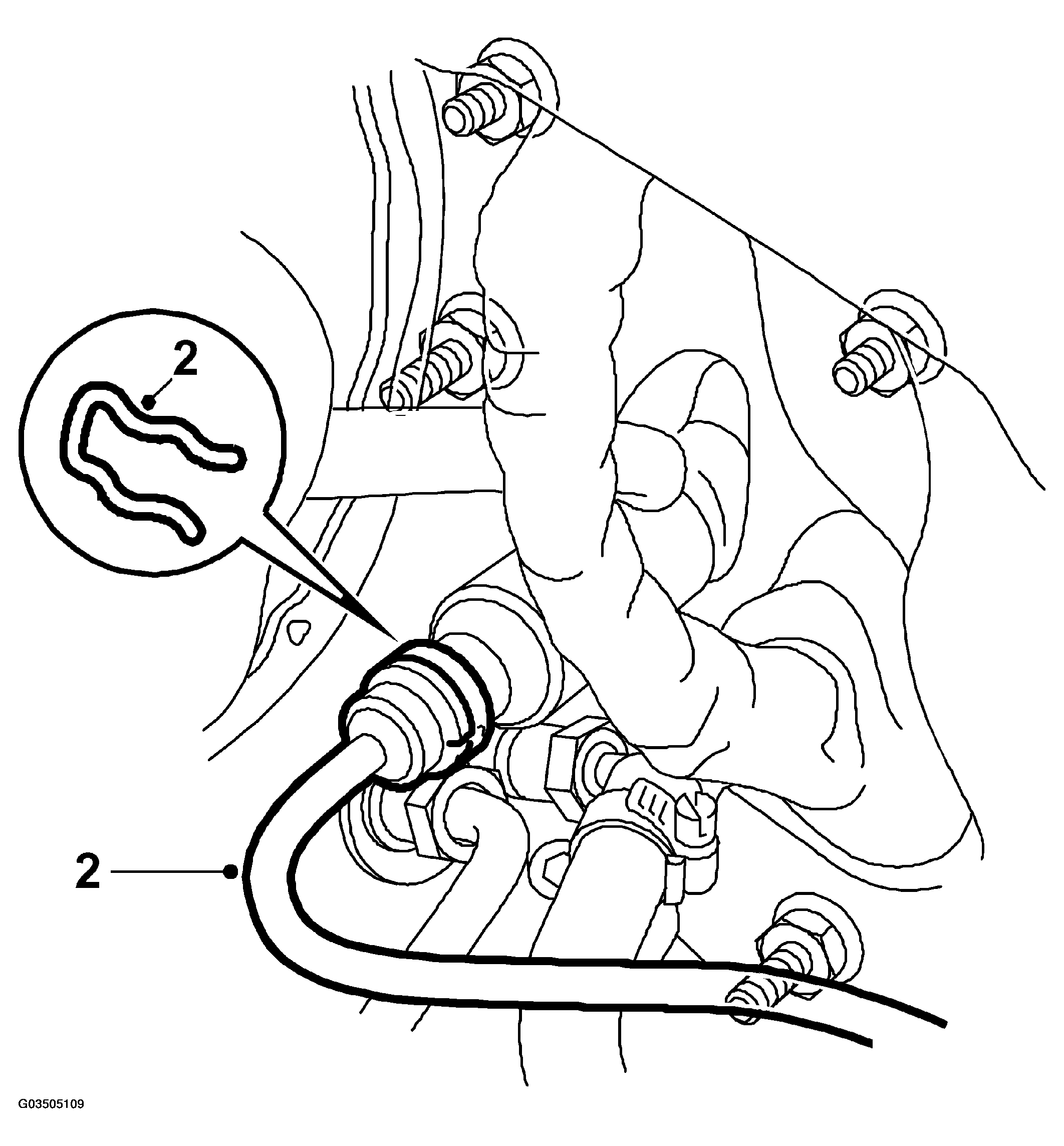

    Fig 1: Illustration For Step 2
    G03505109Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the clip securing the deliver pipe to the master cylinder.
  3. Detach the delivery pipe from the master cylinder.
  4. Unscrew the delivery pipe from the slave cylinder connection.

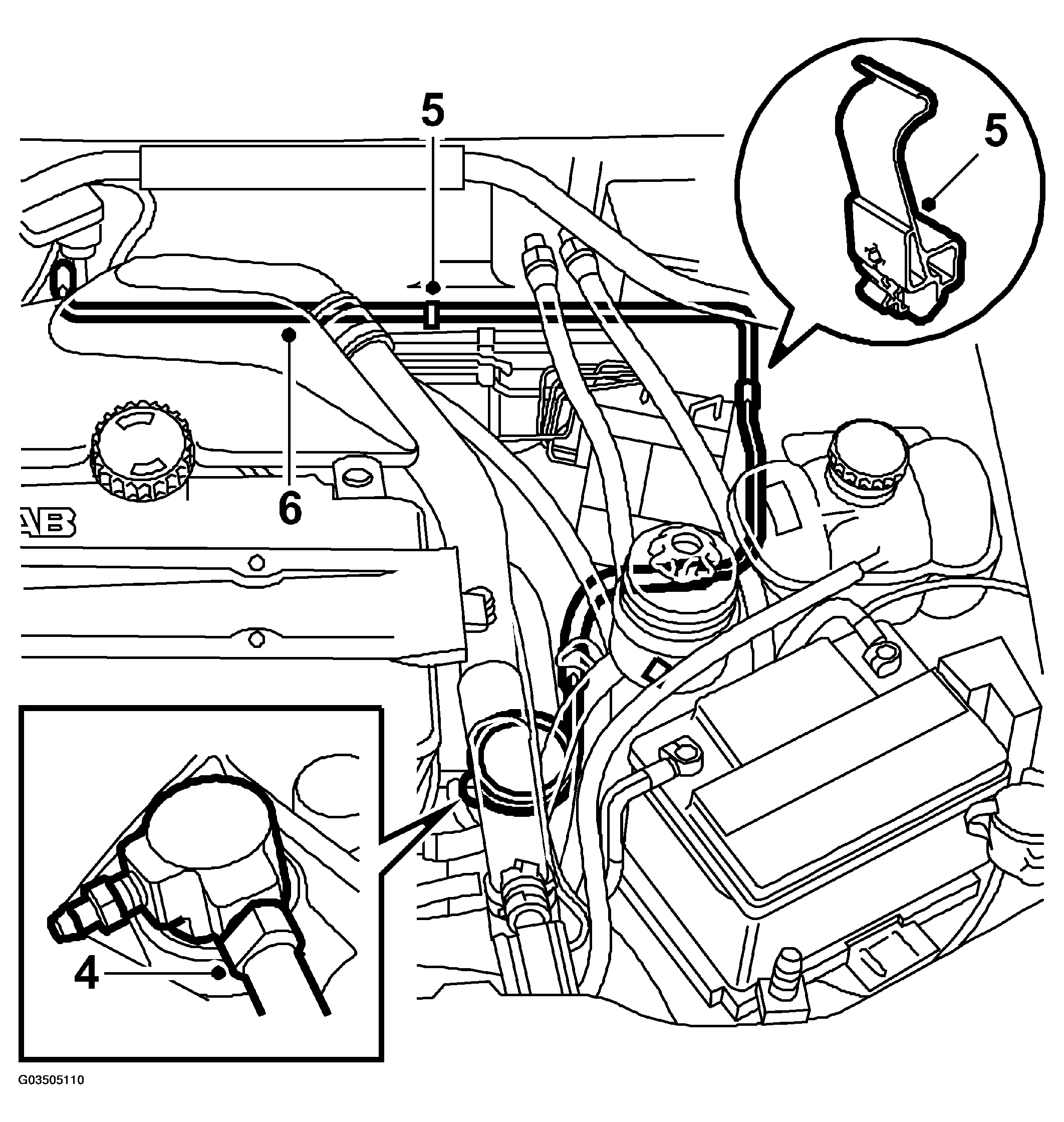

    Fig 2: Illustration For Step 4-6
    G03505110Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Pull the delivery pipe from the clamp on the side of the engine bay.
  6. Remove the pipe.
