To remove

  1. Empty the clutch system (brake fluid) through the bleed nipple on the slave cylinder with 88 19 096 BLEEDING EQUIPMENT

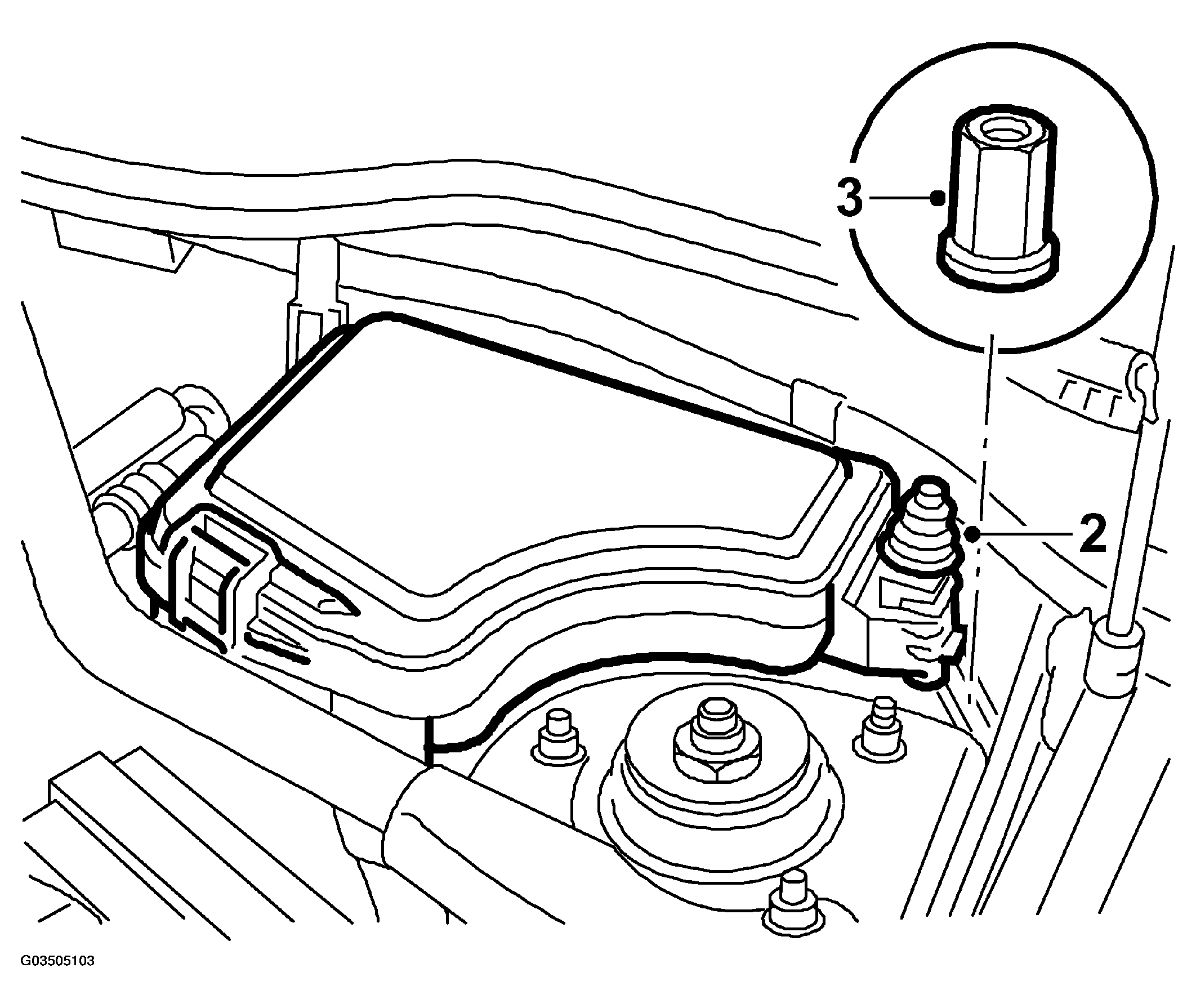

    Fig 1: Illustration For Step 2-3
    G03505103Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector to the bonnet contact for the alarm if fitted.
  3. Undo the main fuse box and put it to one side.
  4. Undo the clip securing the deliver pipe to the master cylinder.

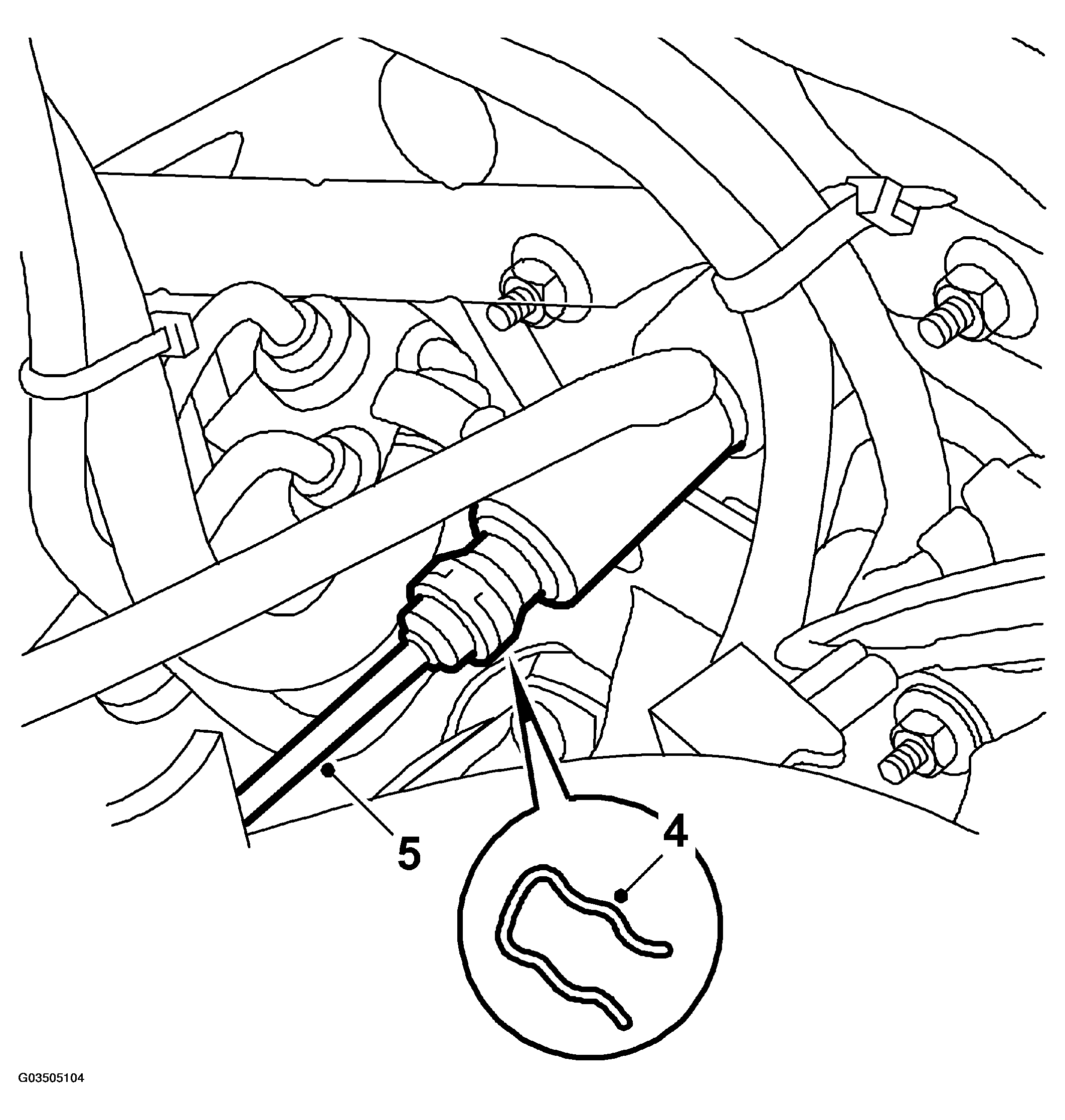

    Fig 2: Illustration For Step 4-5
    G03505104Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Detach the delivery pipe from the master cylinder and fit the locking clip.
  6. Unscrew the delivery pipe from the slave cylinder connection.

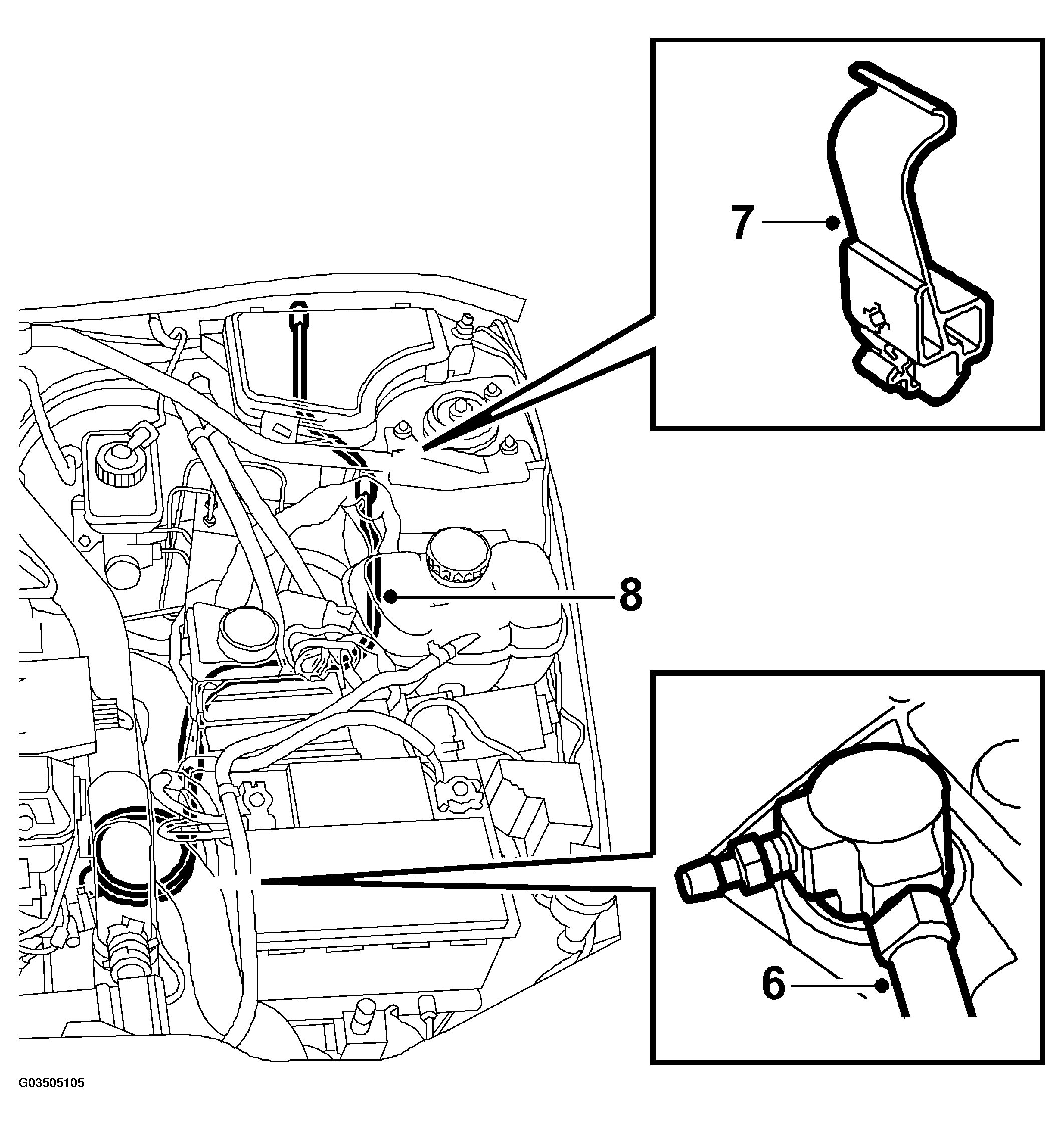

    Fig 3: Illustration For Step 6-8
    G03505105Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Pull the delivery pipe from the clamp on the side of the engine bay.
  8. Remove the pipe.
