System overview, turbo engine (B204E): Notes

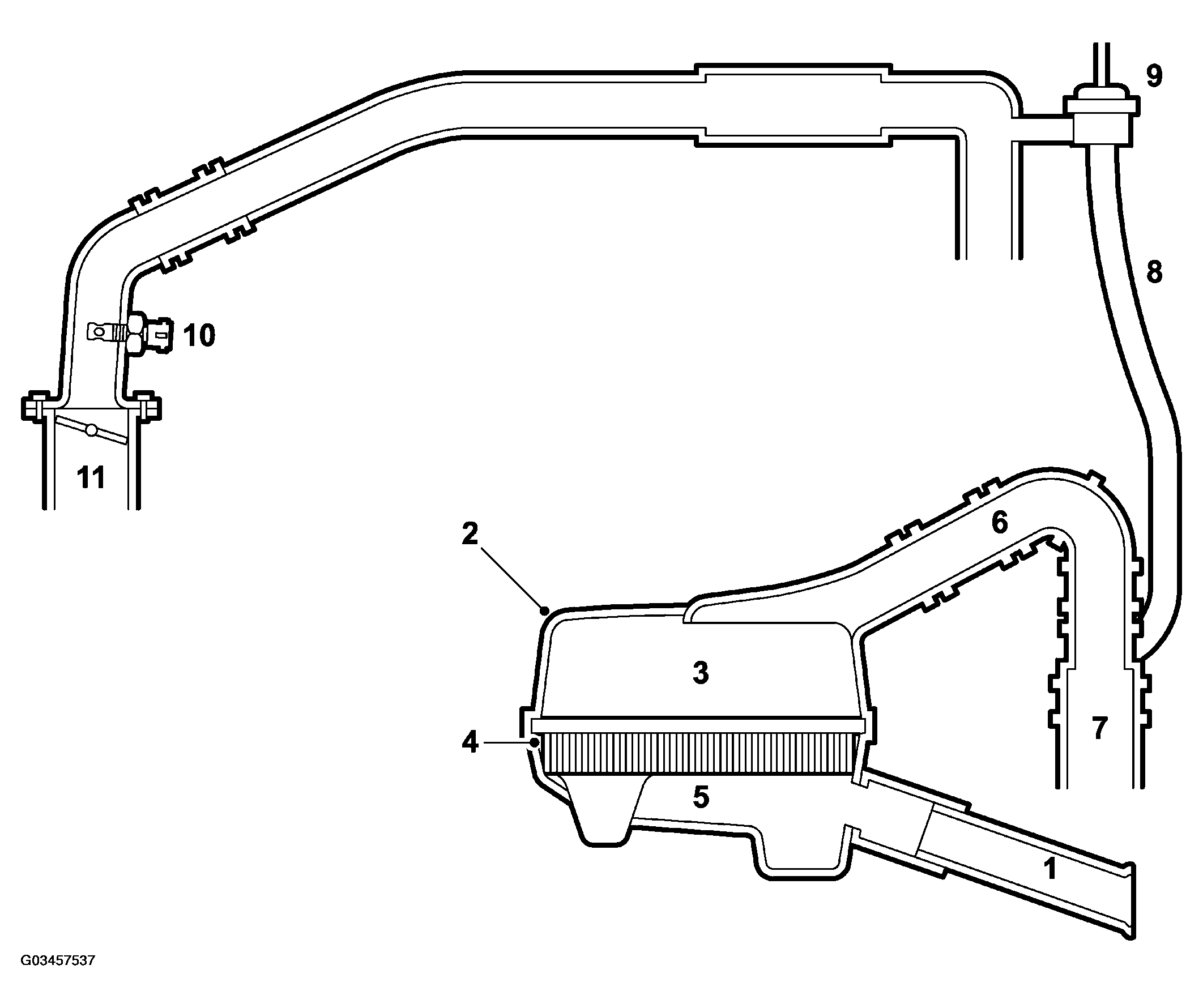

Fig 1: Identifying Intake System, Turbo Engine (B204E) Components
G03457537
  1. Air intake pipe
  2. Air cleaner consisting of:
  3. Cover
  4. Air cleaner filter element
  5. Air collector casing
  6. Intake pipe, turbocharger
  7. Pipe connection to turbocharger and charge air cooler
  8. Bypass line
  9. Charge air bypass valve
  10. Temperature sensor
  11. Throttle valve
