To remove

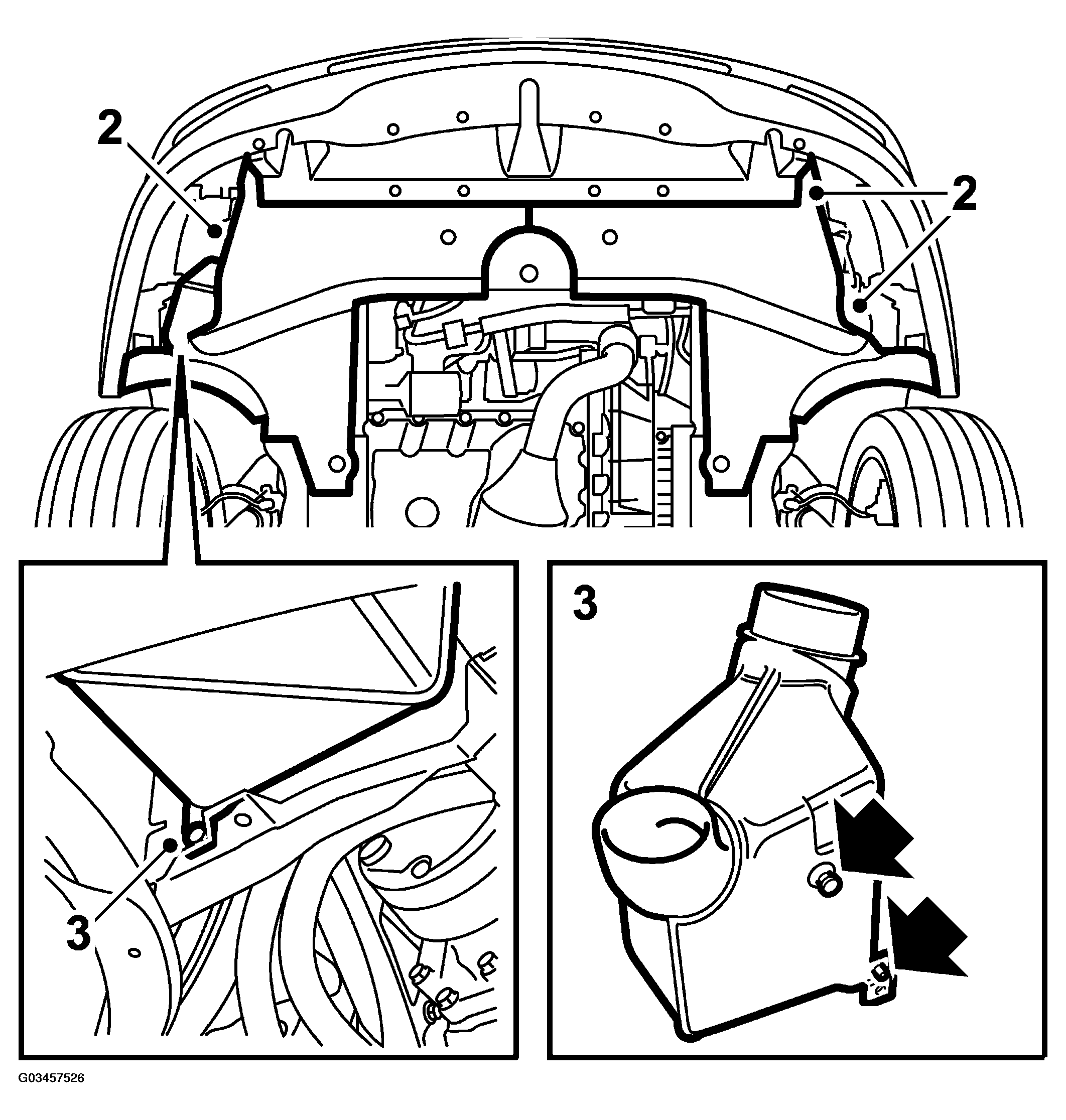

Fig 1: Unhooking Resonator (B235R)
G03457526
  1. Position the car on a lift and raise it.
  2. Remove the spoiler shields (right and left).
  3. Undo the screw and unhook the resonator by pressing it up and slightly outwards.
