Oil pressures

OIL PRESSURES SPECIFICATIONS

Oil pump pressure-reducing valve opens at bar 3.8
Warning lamp comes on when oil pressure is below bar 0.3 -- 0.55
B204: Oil pressure at 2000 rpm with warm engine
(80°C/176°F) and 10W30 oil, minimum		 bar 2.7
B235, B205: Oil pressure at 2000 rpm with warm engine
(105+/-2°C/221+/-4°F) and 10W30 oil, minimum		 bar 2.5
End float between oil pump rotor and housing mm 0.03 -- 0.08
Engine oil cooler thermostat opens at °C (°F) 105 +/-2 (221 +/-35.6)

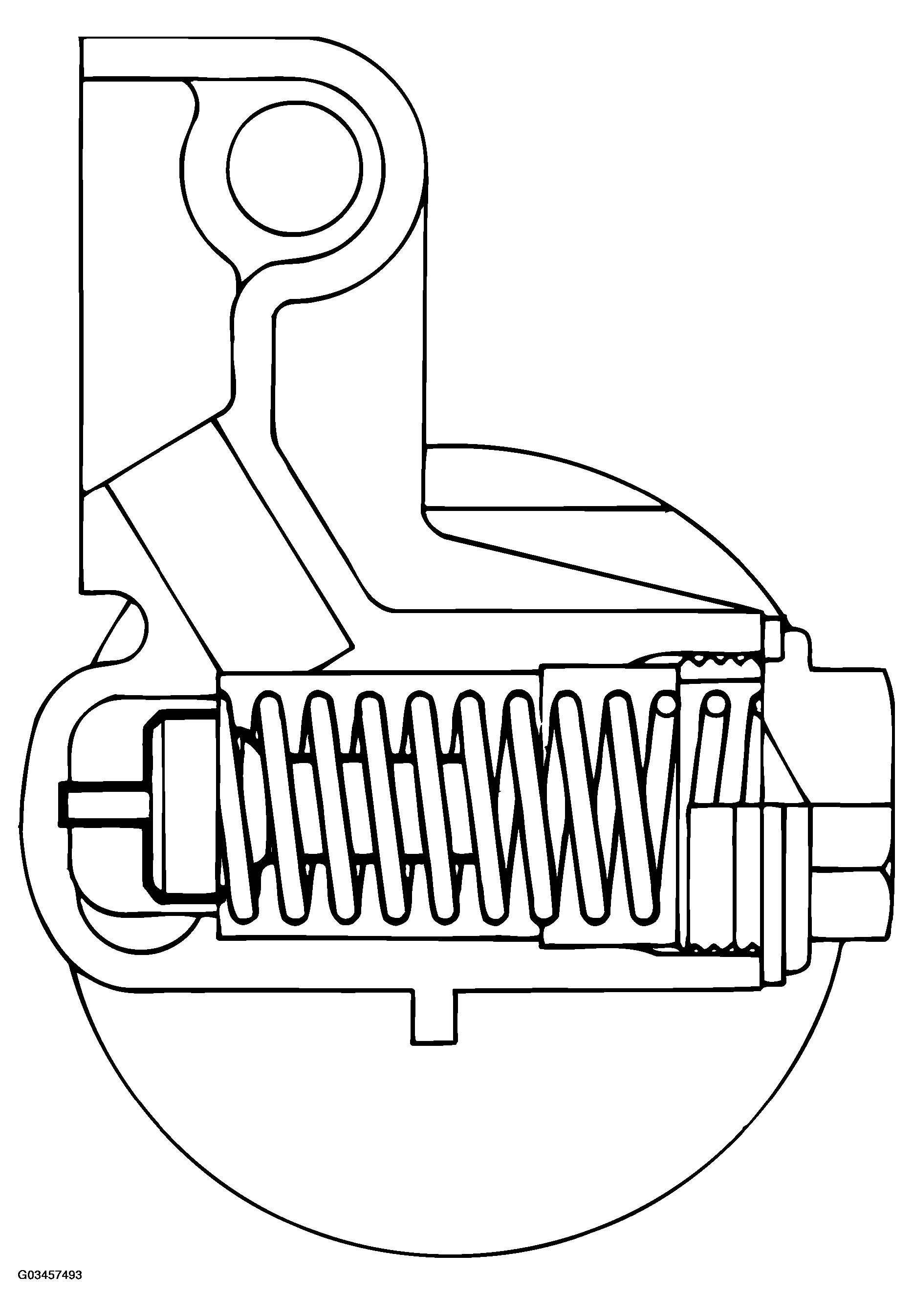

Fig 1: Cut-Away View Of Engine Oil Cooler Thermostat
G03457493
