Intermediate pipe: Dismantling

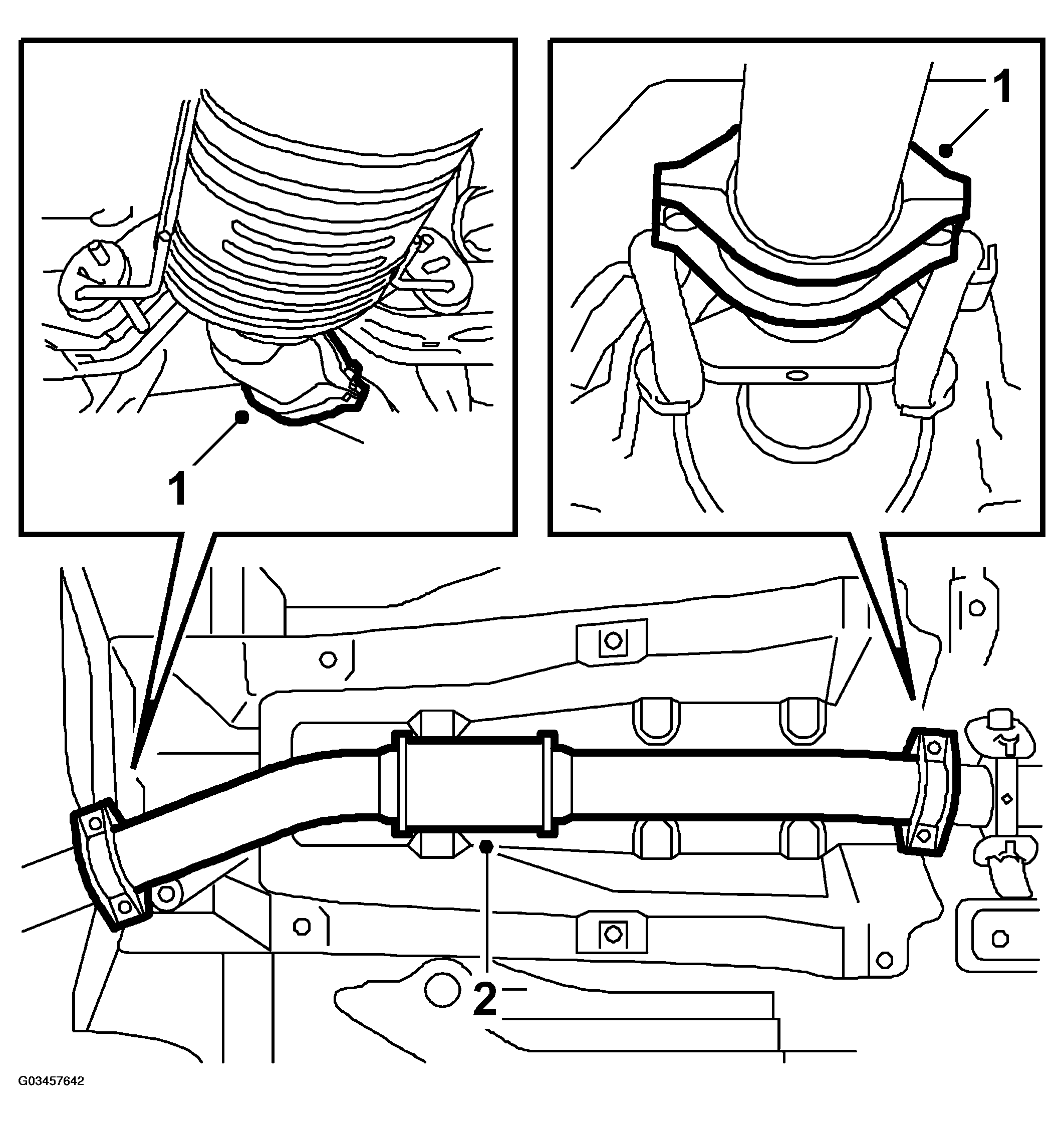

Fig 1: Removing Joints To Front Exhaust Pipe & Front Silencer
G03457642
IMPORTANT: The flexible section of the intermediate pipe is highly sensitive to bending and must not be angled more than 5 ° as this could lead to permanent deformation.
  1. Raise the car and undo the joints to the front exhaust pipe and front silencer.
  2. Remove the pipe.
