Testing For Open Circuits By Measuring Resistance

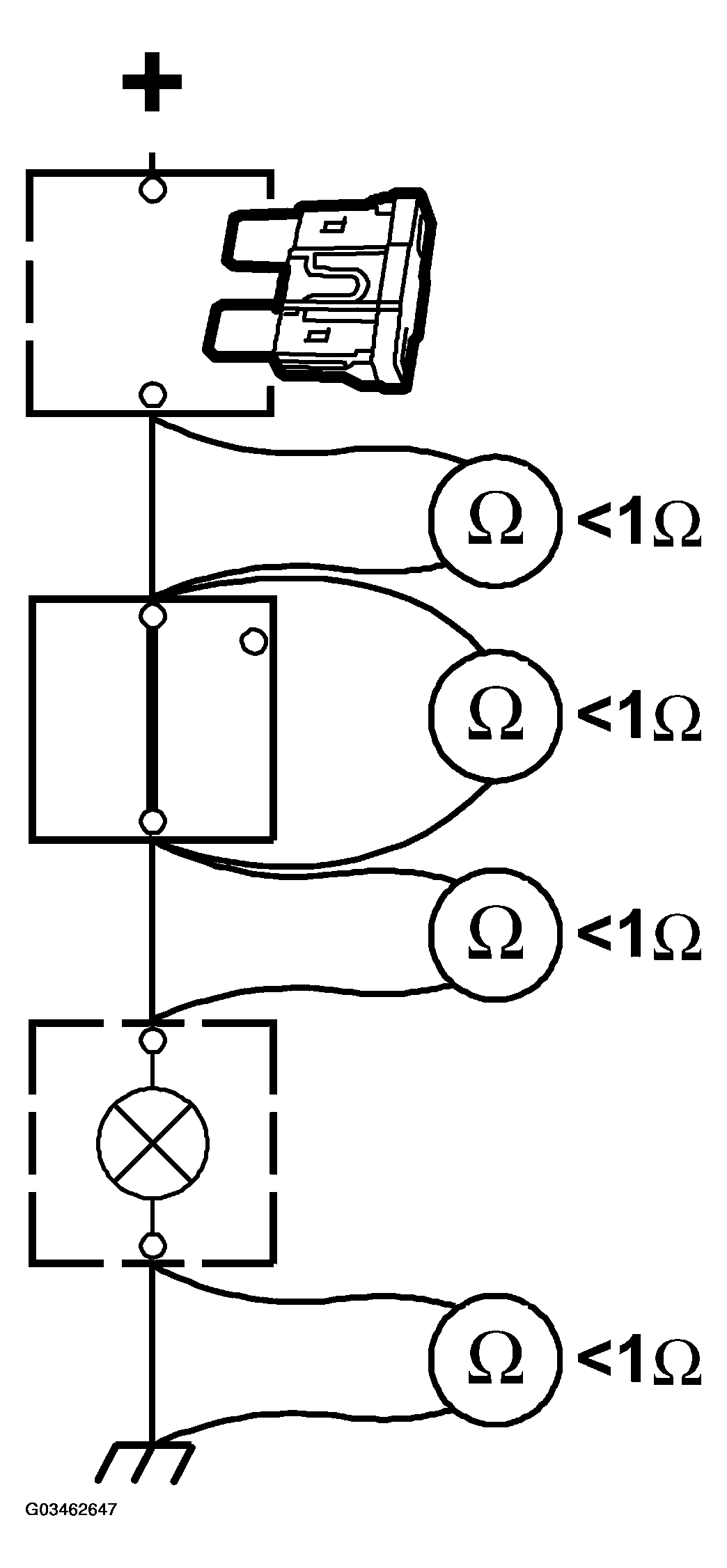

Fig 1: Testing For Open Circuits By Measuring Resistance
G03462647

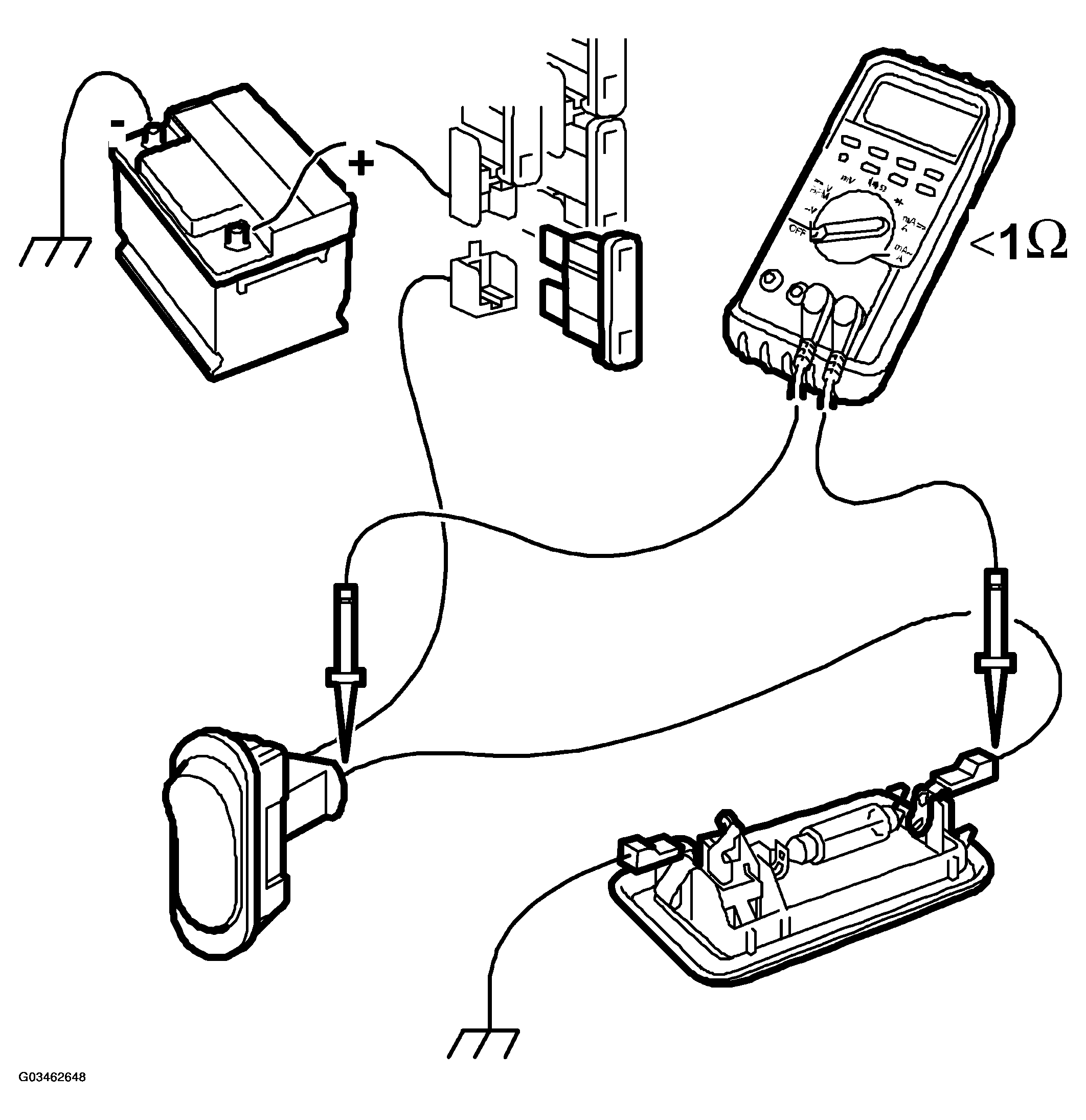

Fig 2: Setting Multimeter For Measuring Ohms & Connecting Ohmmeter To Each End Of Components
G03462648
  1. Make sure the component or lead to be tested is not under tension (e.g. by removing the relevant fuse).
  2. Set the multimeter for measuring ohms and connect the ohmmeter to each end of the component/lead to be tested.
  3. Jiggle the relevant wiring harness while observing the ohmmeter.

    Normally, the resistance of a wiring harness is less than 1 ohm. Specified values apply to components.
