To Remove

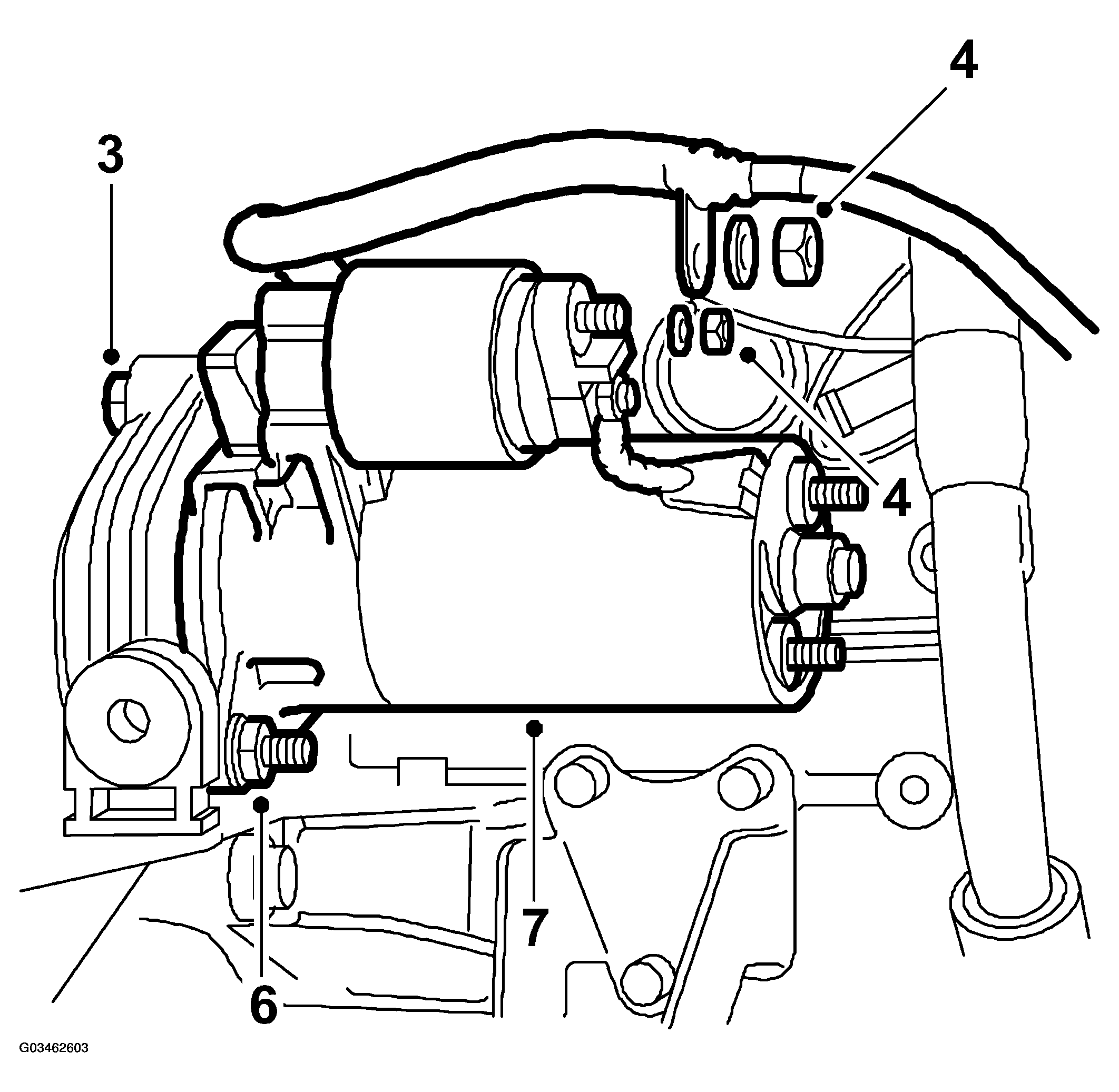

Fig 1: Removing Upper Retaining Bolt Of Starter Motor (Petrol Engine)
G03462603
NOTE: If the car is fitted with a radio other than Saab's original, check that the customer has the radio code before you begin work.
  1. Disconnect the negative battery cable.
  2. Drape protective covers over the front wings.
  3. Remove the upper retaining bolt of the starter motor.
  4. Disconnect the starter motor connecting cables.
  5. Raise the car.
  6. Unscrew the starter motor's lower retaining nut.
  7. Lower the starter motor and lift it out.
