To Remove

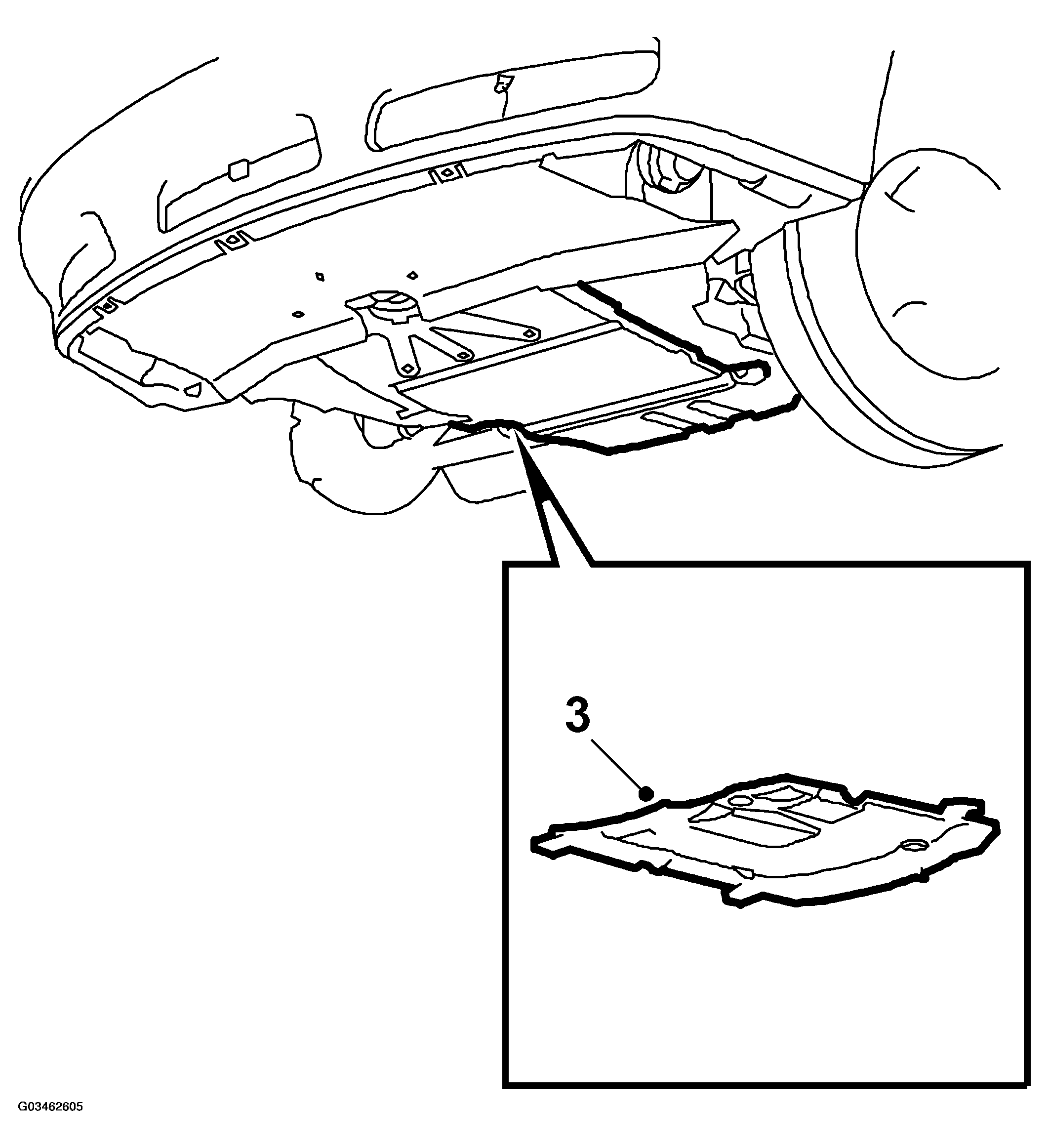

Fig 1: Removing Cover Under Drive Assembly
G03462605
NOTE: If the car is fitted with a radio other than Saab's original, check that the customer has the radio code before you begin work.
  1. Disconnect the negative battery cable.
  2. Raise the car.
  3. Remove the cover under the drive assembly.
  4. Remove the radiation guard.

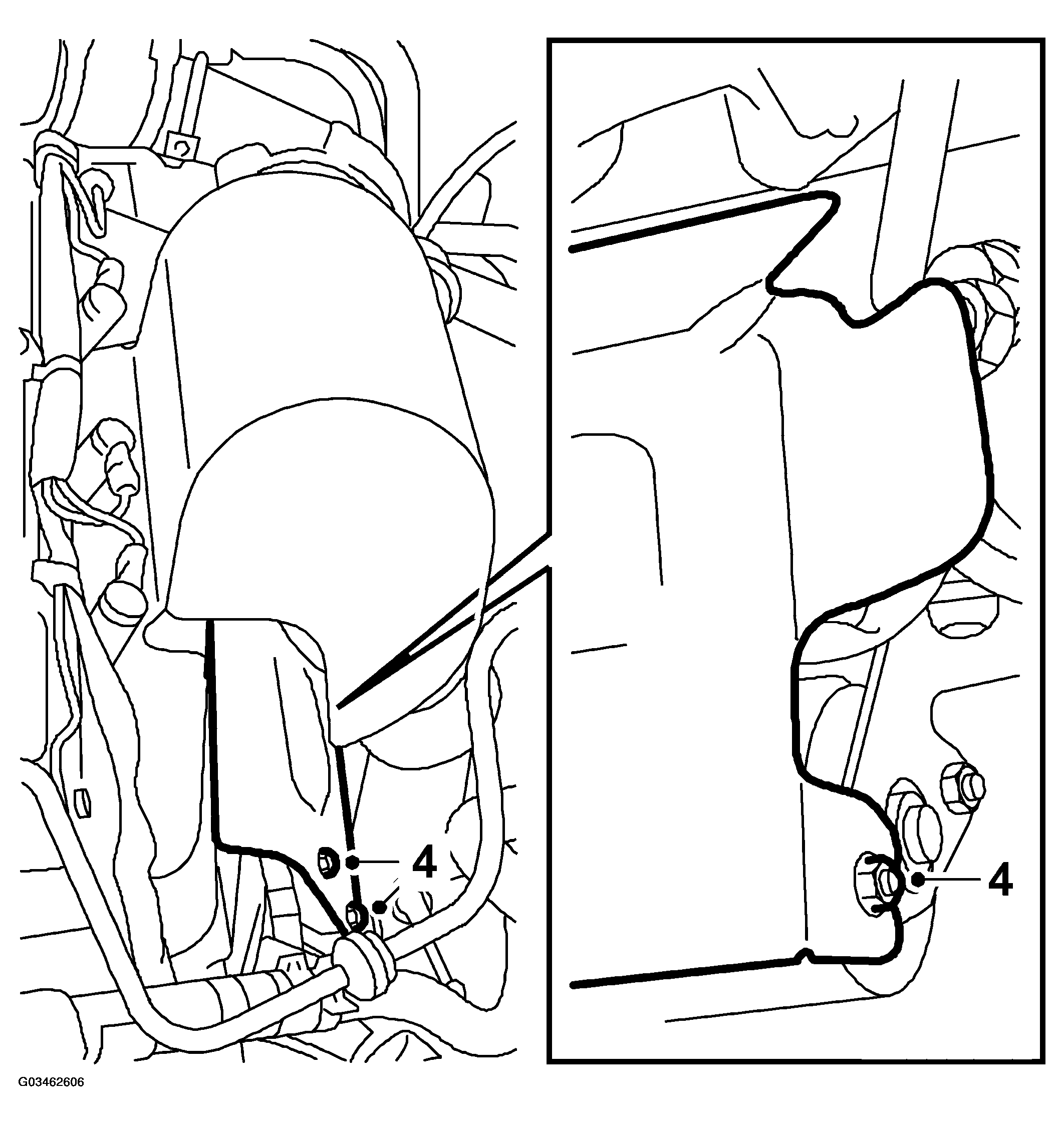

    Fig 2: Removing Radiation Guard
    G03462606
  5. Remove the starter motor's lower retaining bolt.

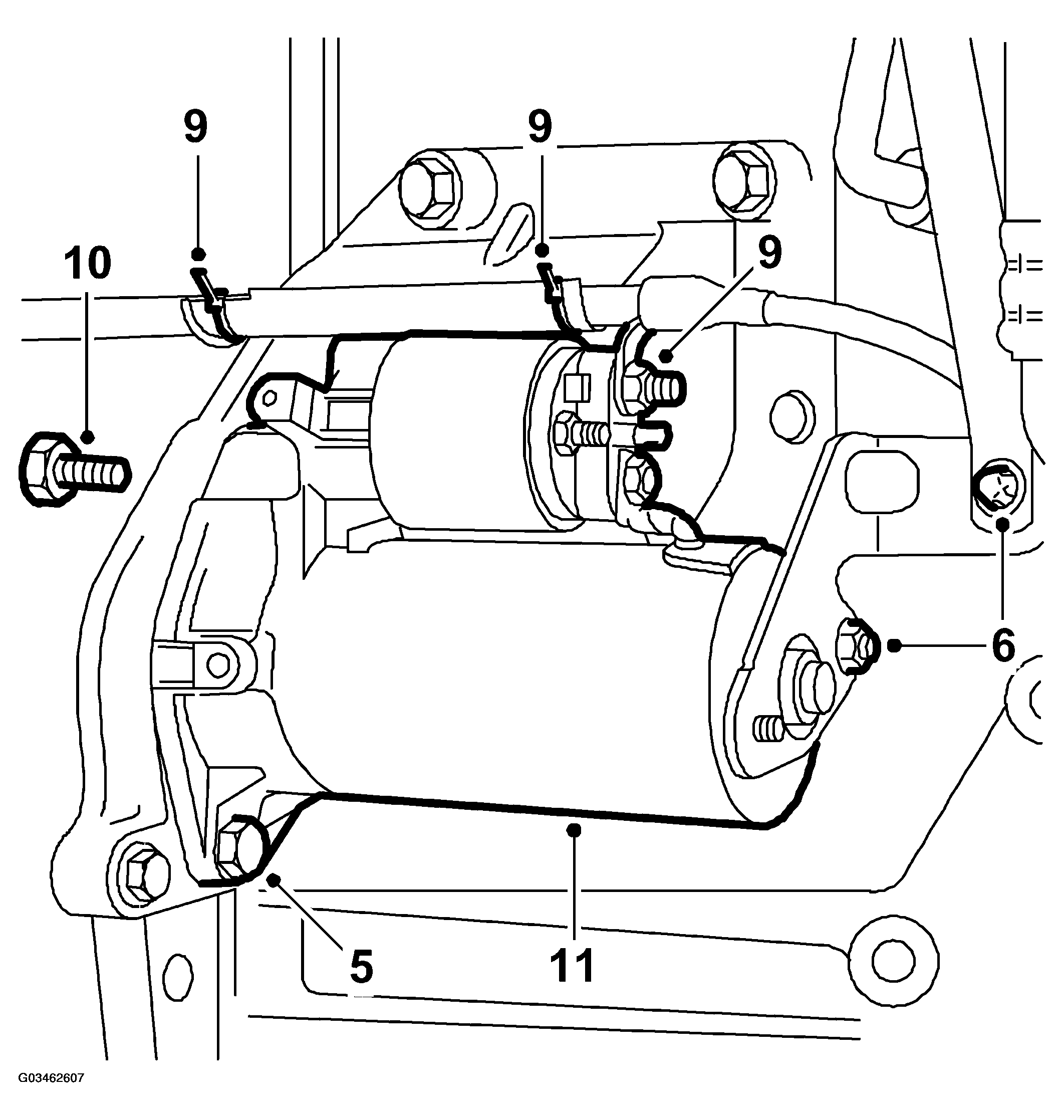

    Fig 3: Removing Starter Motor's Lower Retaining Bolt (Diesel Engine)
    G03462607
  6. Remove the lower bolt of the rear strut and loosen the upper bolt.
  7. Lower the car.
  8. Drape protective covers over the front wings.
  9. Undo the connecting cables of the starter motor and cut the cable tie around the cable bar.
  10. Remove the upper retaining bolt of the starter motor.
  11. Lift up the starter motor.
