Components connected:

CONNECTED COMPONENTS

1 Battery

The redundancy ground from the front left wheel housing is also connected.

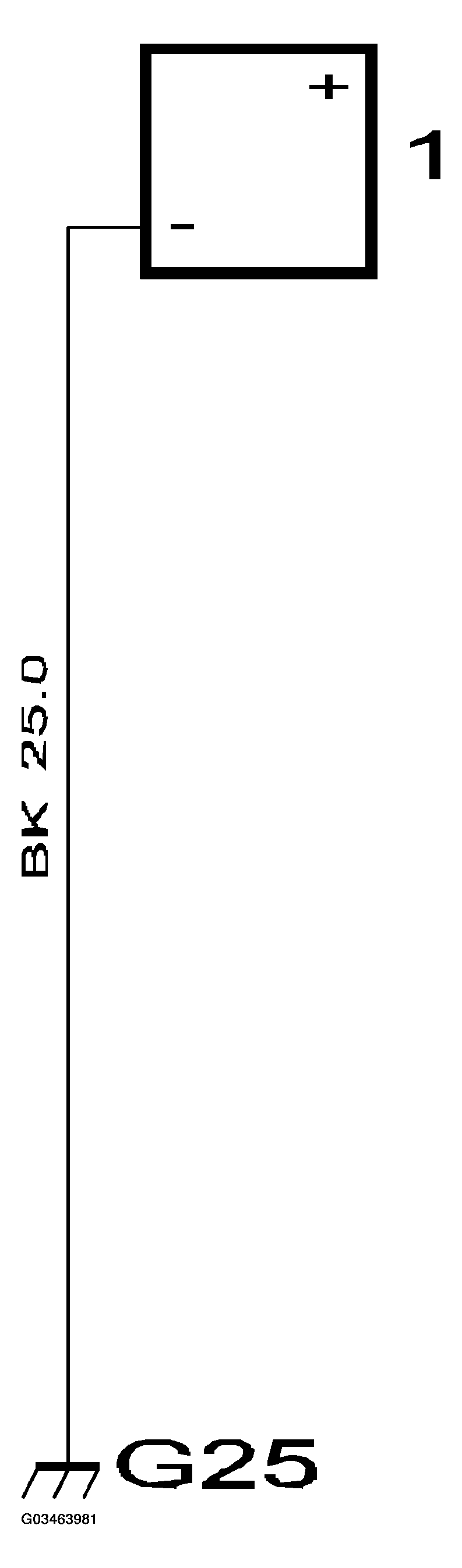

Fig 1: Grounding Point G25 - Circuit Diagram
G03463981Courtesy of SAAB-SCANIA OF AMERICA, INC.
