Low/Reverse Brake Assembly: Reassembly

  1. Install new "O" rings on low/reverse brake piston. Install piston in transaxle case. Install piston return spring and snap ring. Ensure snap ring end gaps are not aligned with case cutouts.
  2. Install front planetary ring gear flange. Install snap ring. Install thrust washer with flat surface of washer towards flange. Install one-way clutch and snap ring. Install one-way clutch inner race.
  3. Check one-way clutch operation. Hold low/reverse planetary ring gear. One-way clutch inner race should turn counterclockwise and lock clockwise. See Fig 2 .
Fig 1: Exploded View Of Low/Reverse Brake Assembly
G00047802Courtesy of DAEWOO MOTOR AMERICA, INC.

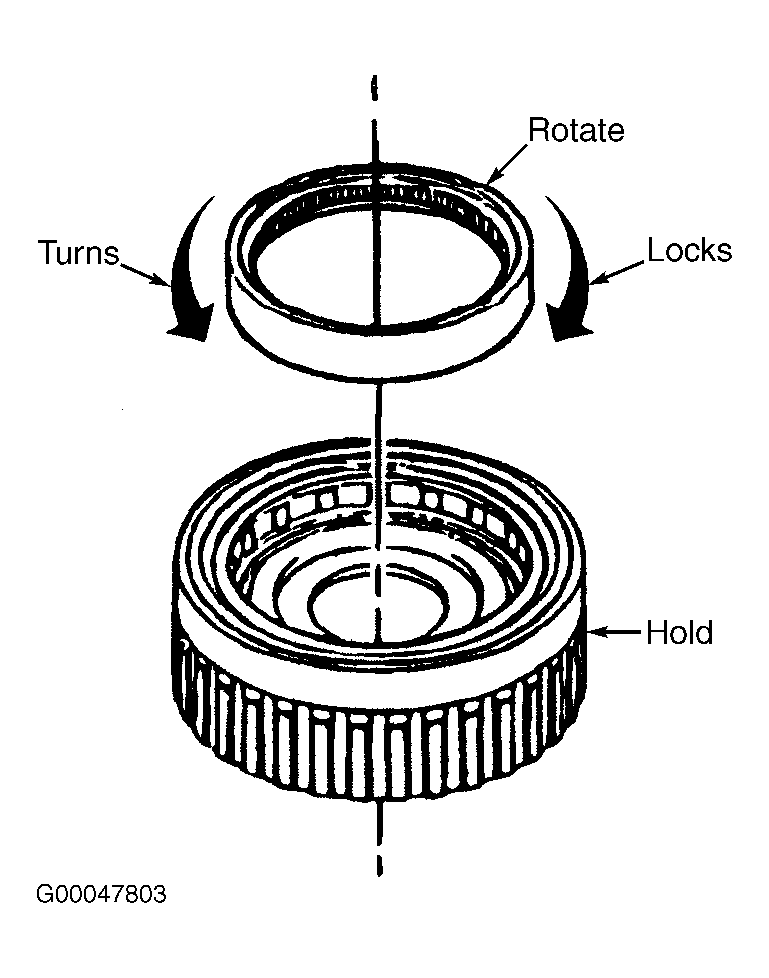

Fig 2: Check Low/Reverse One-Way Clutch
G00047803Courtesy of DAEWOO MOTOR AMERICA, INC.
