Home >> Saab >> 2000 >> 9-3 Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Gear Selector Mechanism (Automatic) >> Adjustment-Replacement >> WINTER button >> To fit

To fit

  1. Solder on the wiring and thread the protective tubing over the soldered joint.

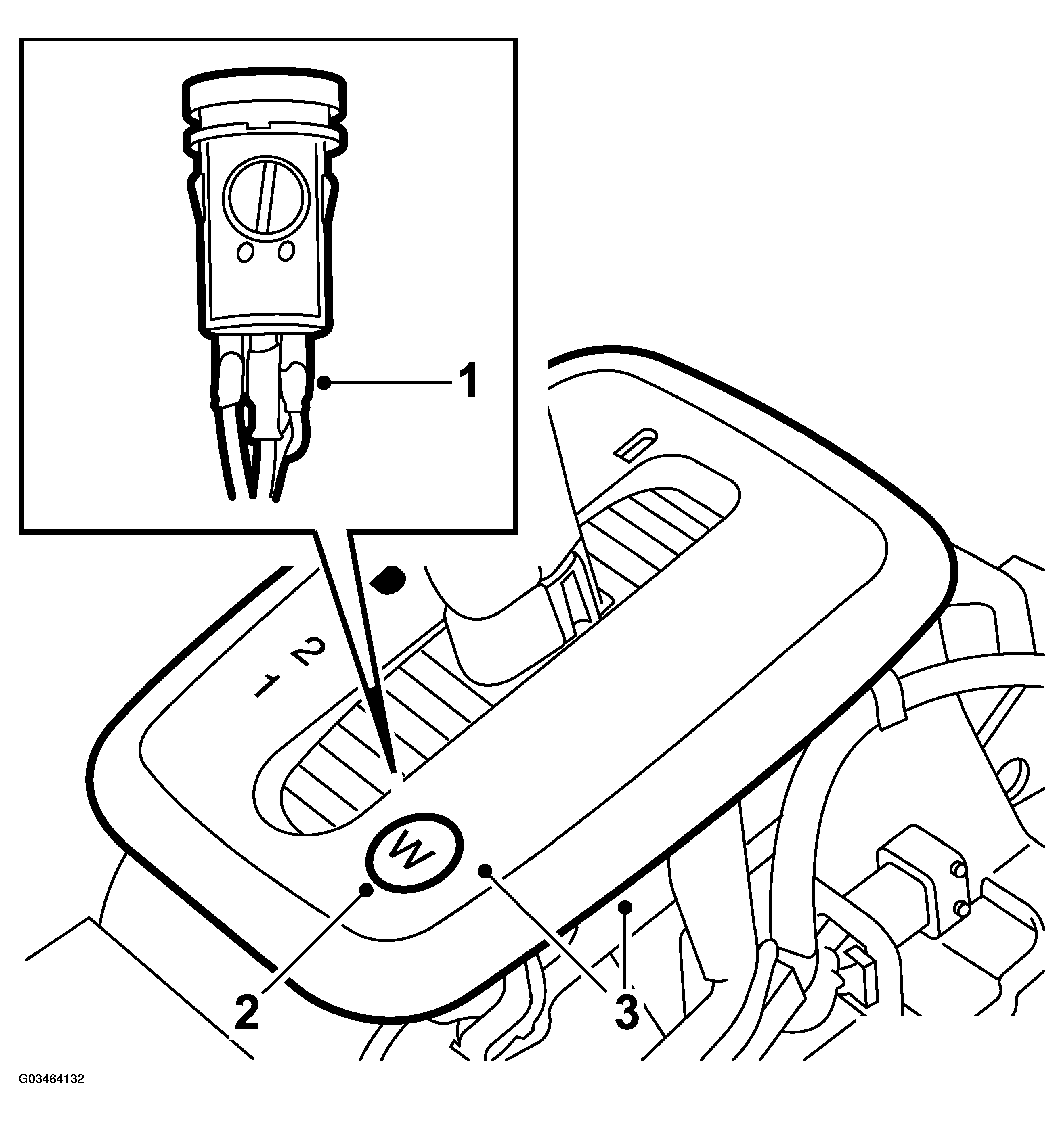

    2. Fig 1: Illustrating Steps 1-3
    G03464132Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press the WINTER button into the indicator display.
  3. Fit the indicator display and the rim.
