To fit

  1. Solder the leads to the SPORT button. Place some form of protection under it so that drops of solder do not fall onto the center console.

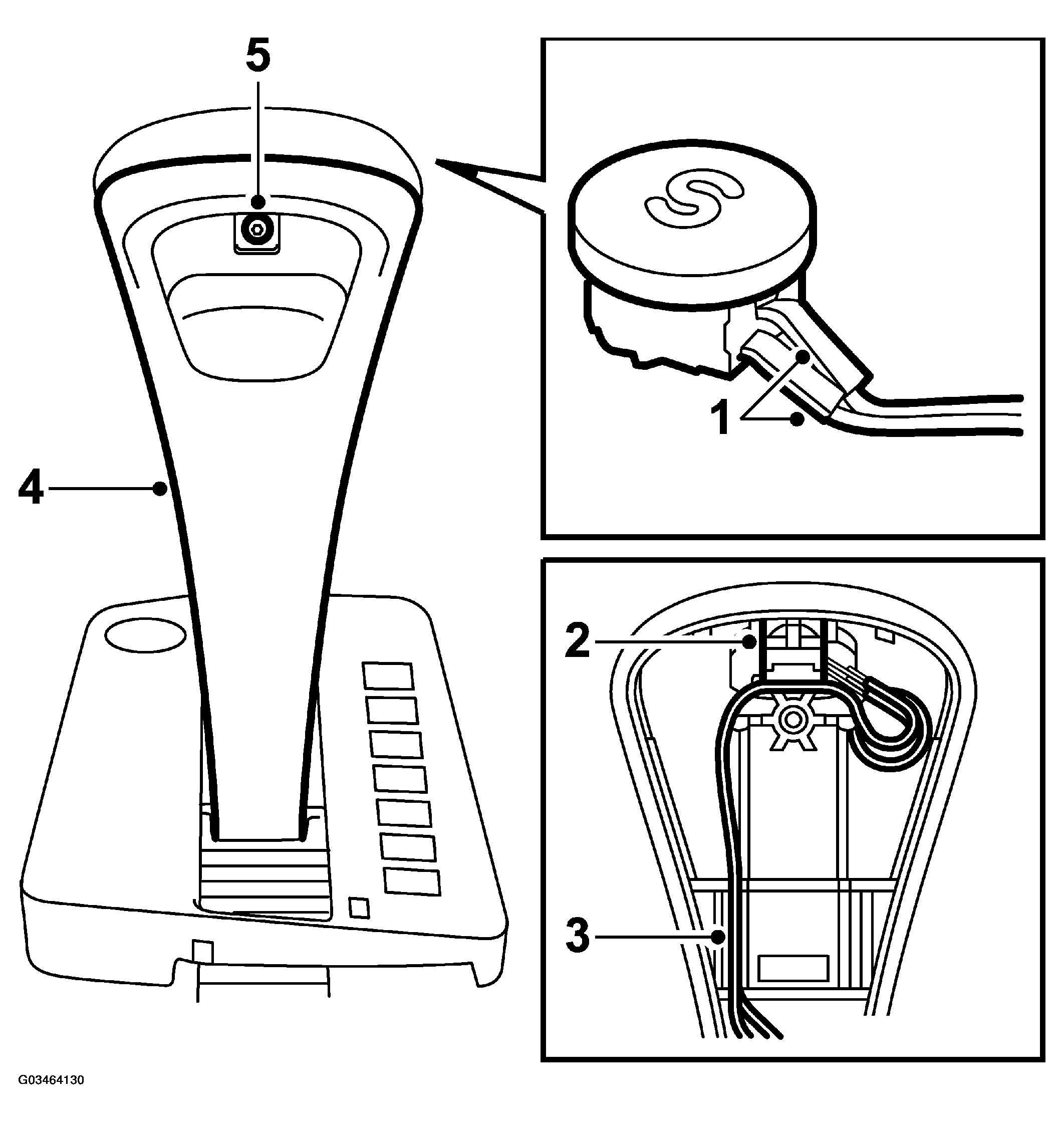

    Fig 1: Illustrating Steps 1-5
    G03464130Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press the SPORT button into place.
  3. Run the leads in a loop so that they will not be nipped.
  4. Fit the front part of the selector lever casing.
  5. Screw the selector lever together.
