Rear Suspension: Description

Rear suspension consists of a rigid axle, coil springs and shock absorbers. The axle is a straight tube with mountings for spring links and hub carriers. See Fig 1.

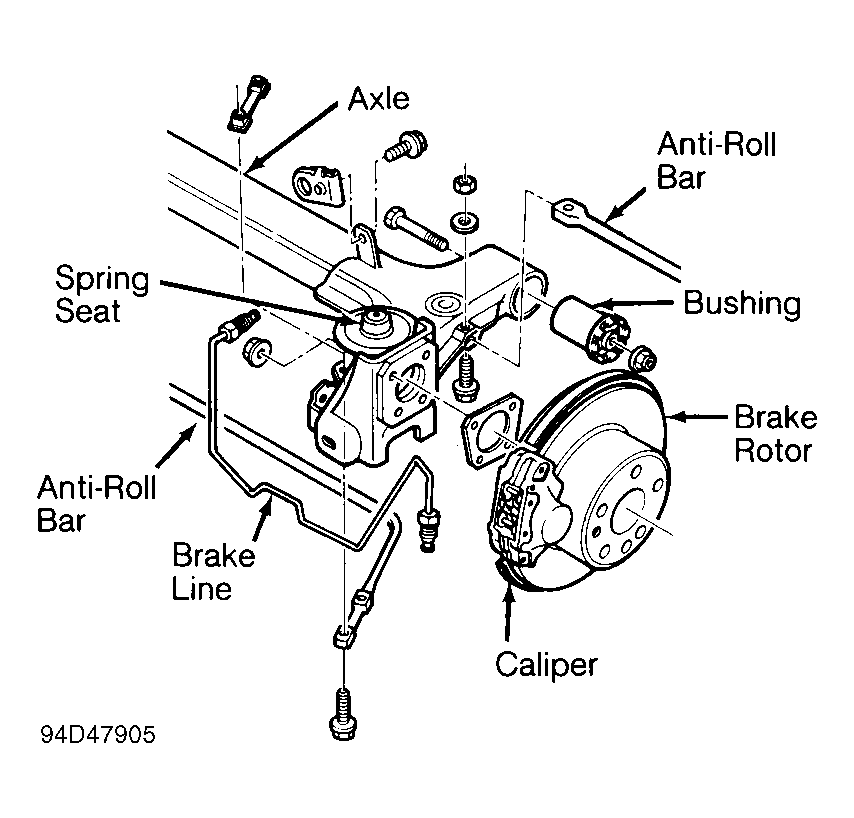

Fig 1: Identifying Rear Suspension Components (9-3 Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
