To remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

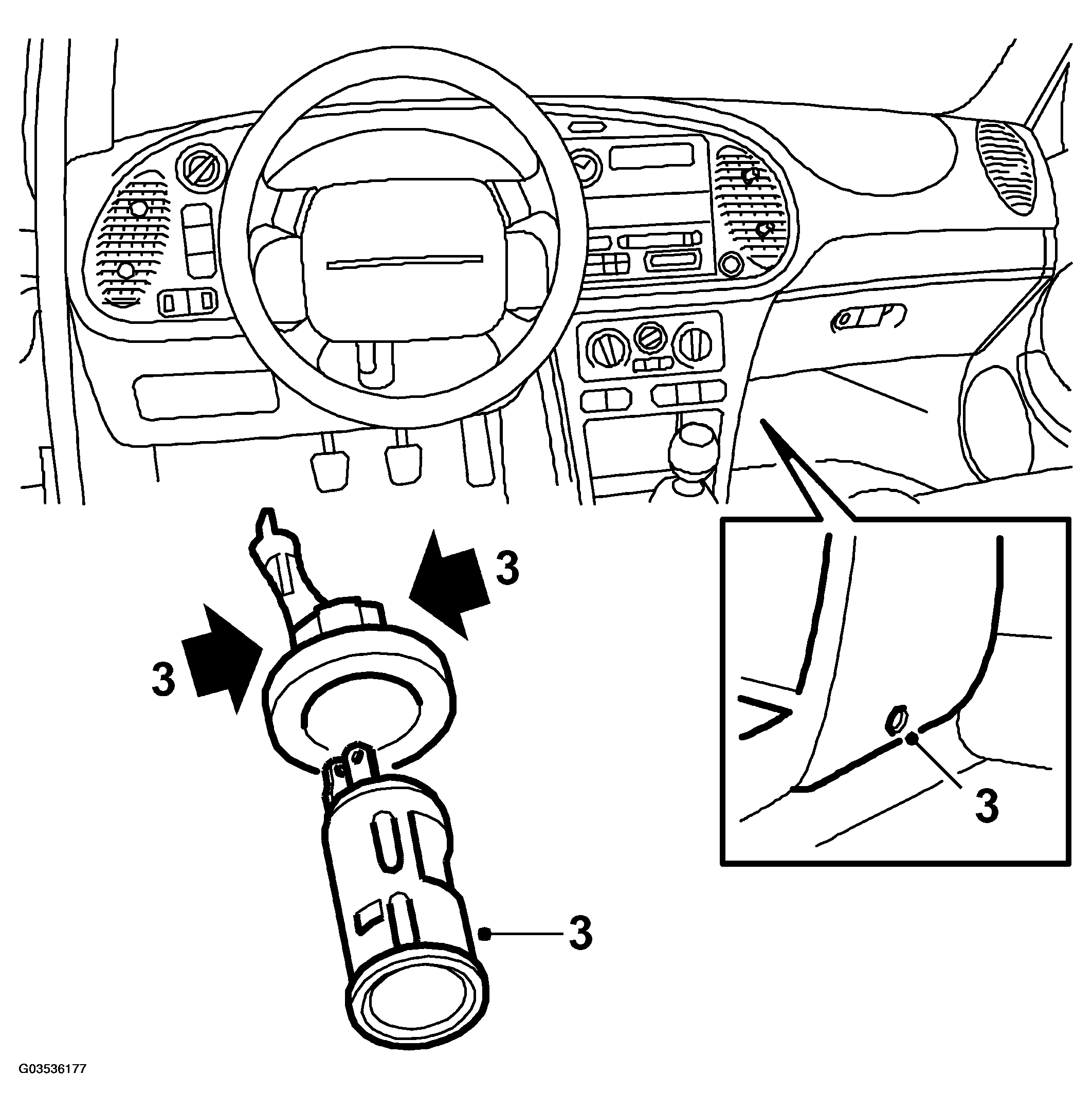

Fig 1: Illustration For Step 3
G03536177Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the right-hand side section.
  2. Unplug the cigarette lighter connector.
  3. Press on the sides of the plastic sleeve as illustrated and press out the metal sleeve from the rear.
  4. Press out the plastic sleeve.
