Removal & Installation - 9-5 Series With V6 Engines

Remove upper engine cover. Unplug CKP sensor electrical connector. Loosen cable clips. Raise vehicle. Loosen upper bolt on turbo bracket and CKP sensor heat shield. Remove shield. Unbolt and remove CKP sensor and "O" ring. See Fig 1. To install, reverse removal procedure. Spray electrical connector with Kontakt 61.

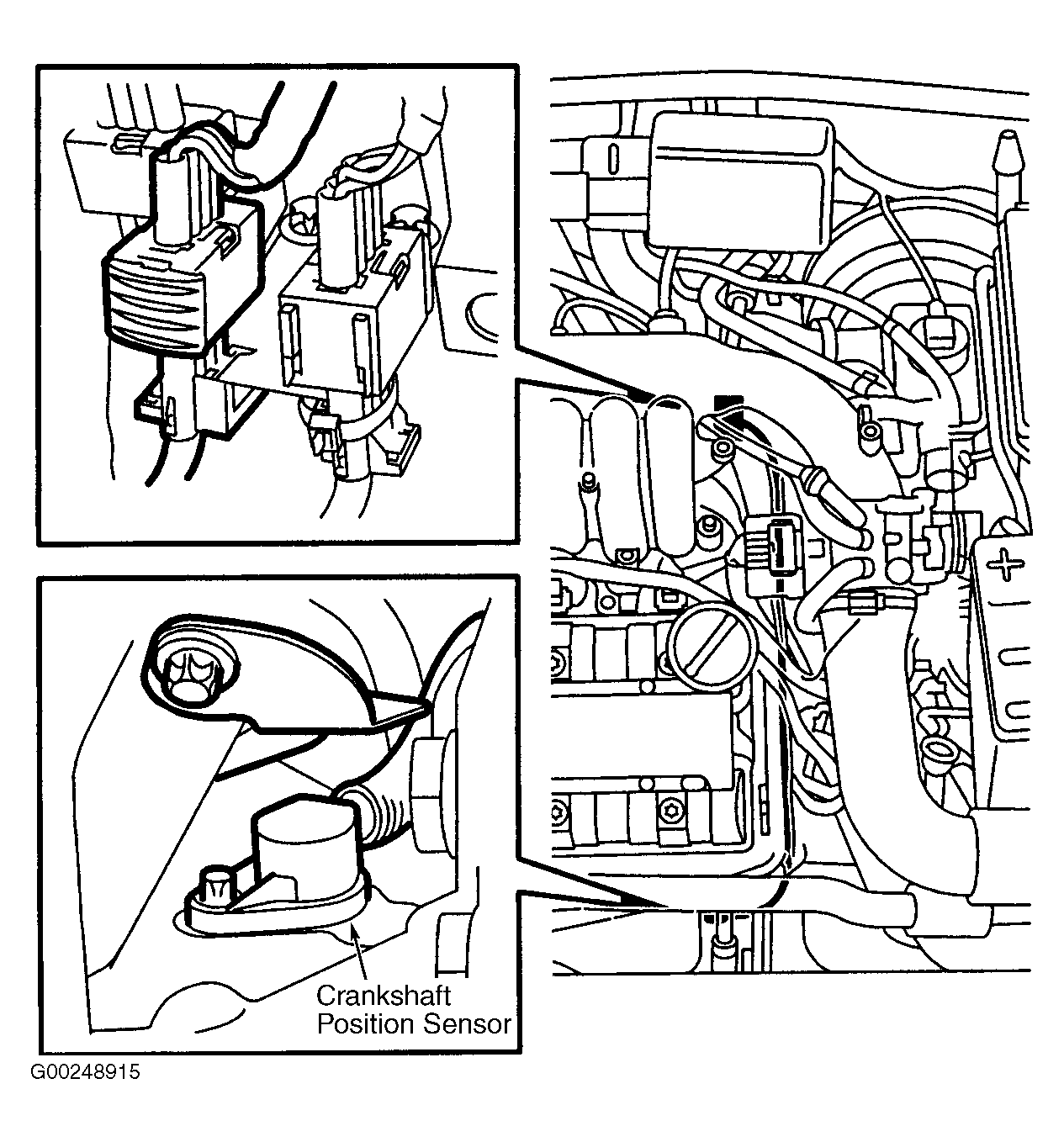

Fig 1: Locating Crankshaft Position Sensor (9-5 Series With V6 Engines)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
