To remove

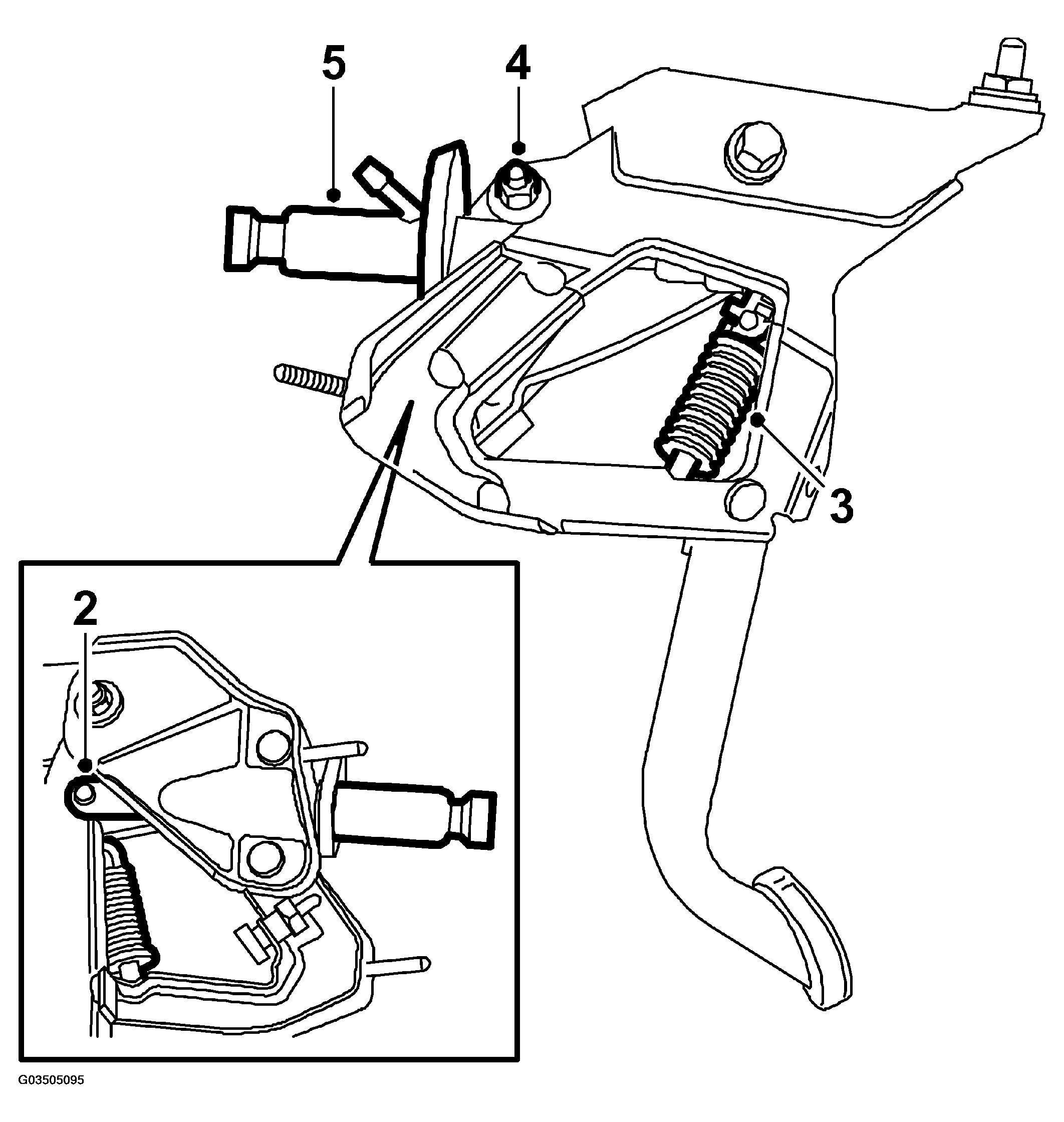

Fig 1: Illustration For Step 2-5
G03505095Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the clutch pedal arrangement as described in PEDAL BRACKET ASSEMBLY RHD  .
  2. Remove the locking clip and pin from the clutch pedal.
  3. Undo the clip and remove the helper spring from the clutch pedal.
  4. Remove the nuts securing the master cylinder to the bracket.
  5. Remove the master cylinder.
