Delivery pipe LHD: Fitting

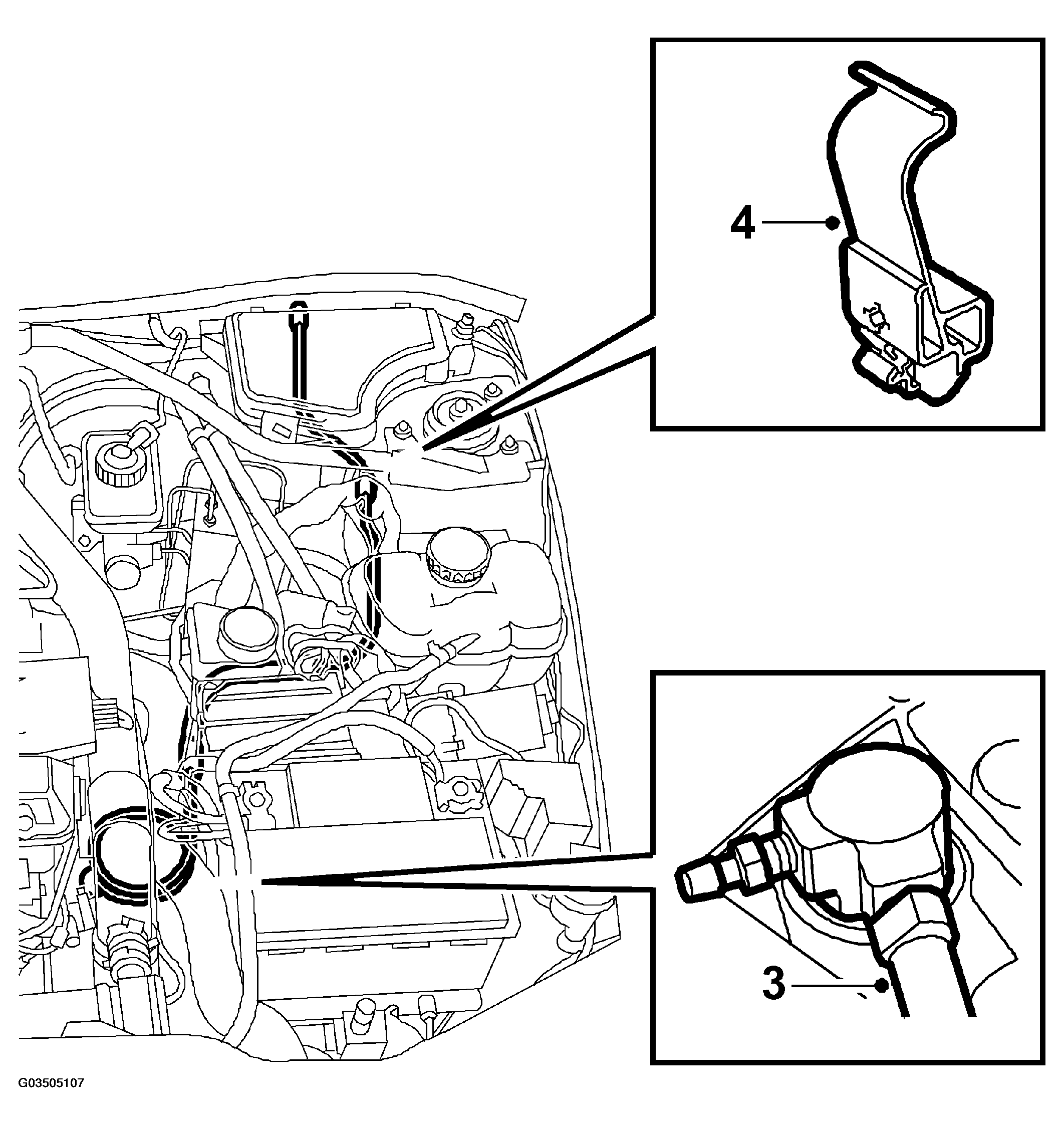

Fig 1: Illustration For Step 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Blow clean the pipe and put it in place.
Press the delivery pipe into the master cylinder.
Connect the delivery pipe to the slave cylinder and tighten the nut. Make sure the pipe does not touch the gearbox.

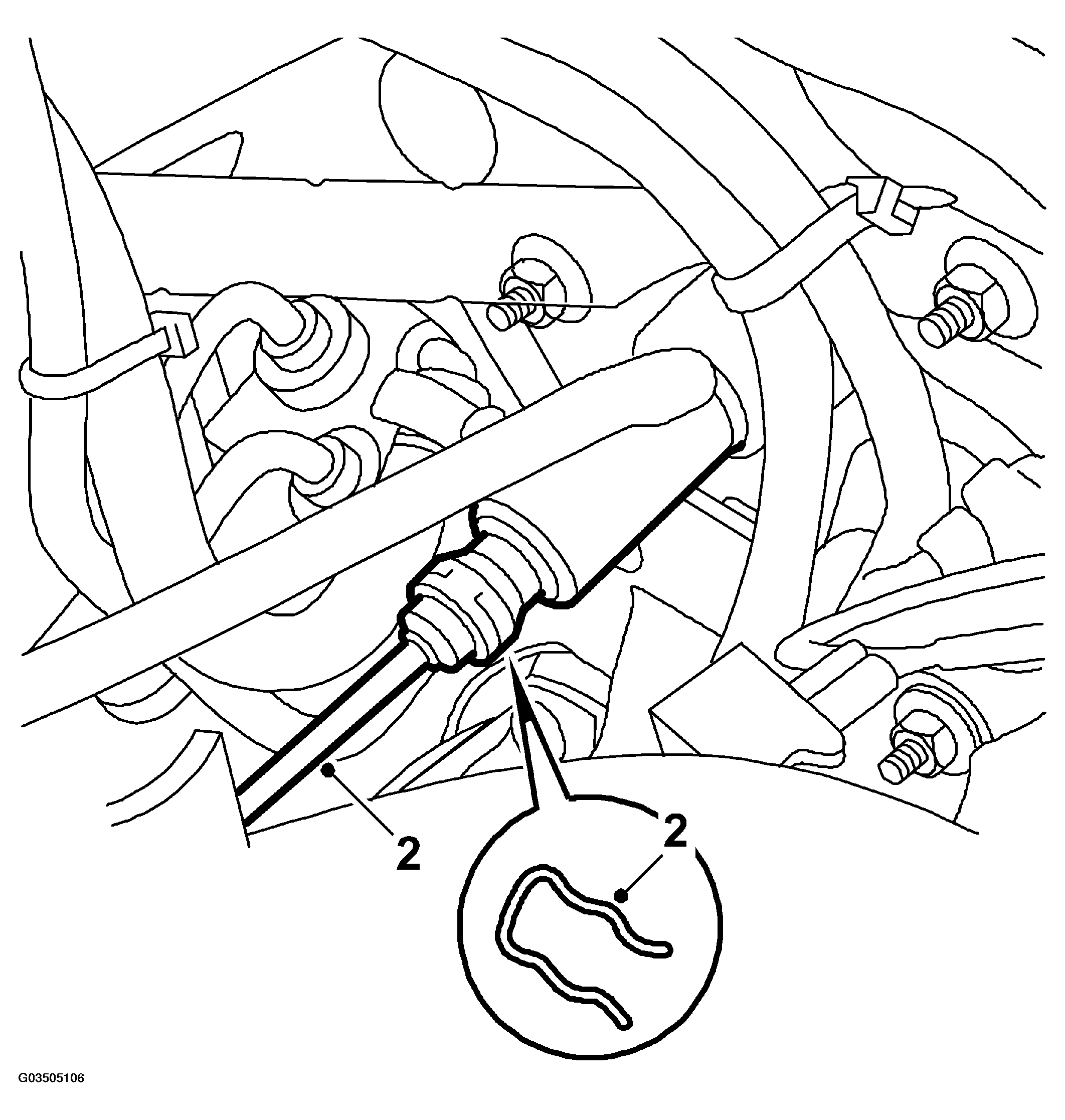

Fig 2: Illustration For Step 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 15 N.m (11 lbf ft).
Press the pipe into the plastic clip.
Fit the main fuse box and connect the bonnet alarm contact.

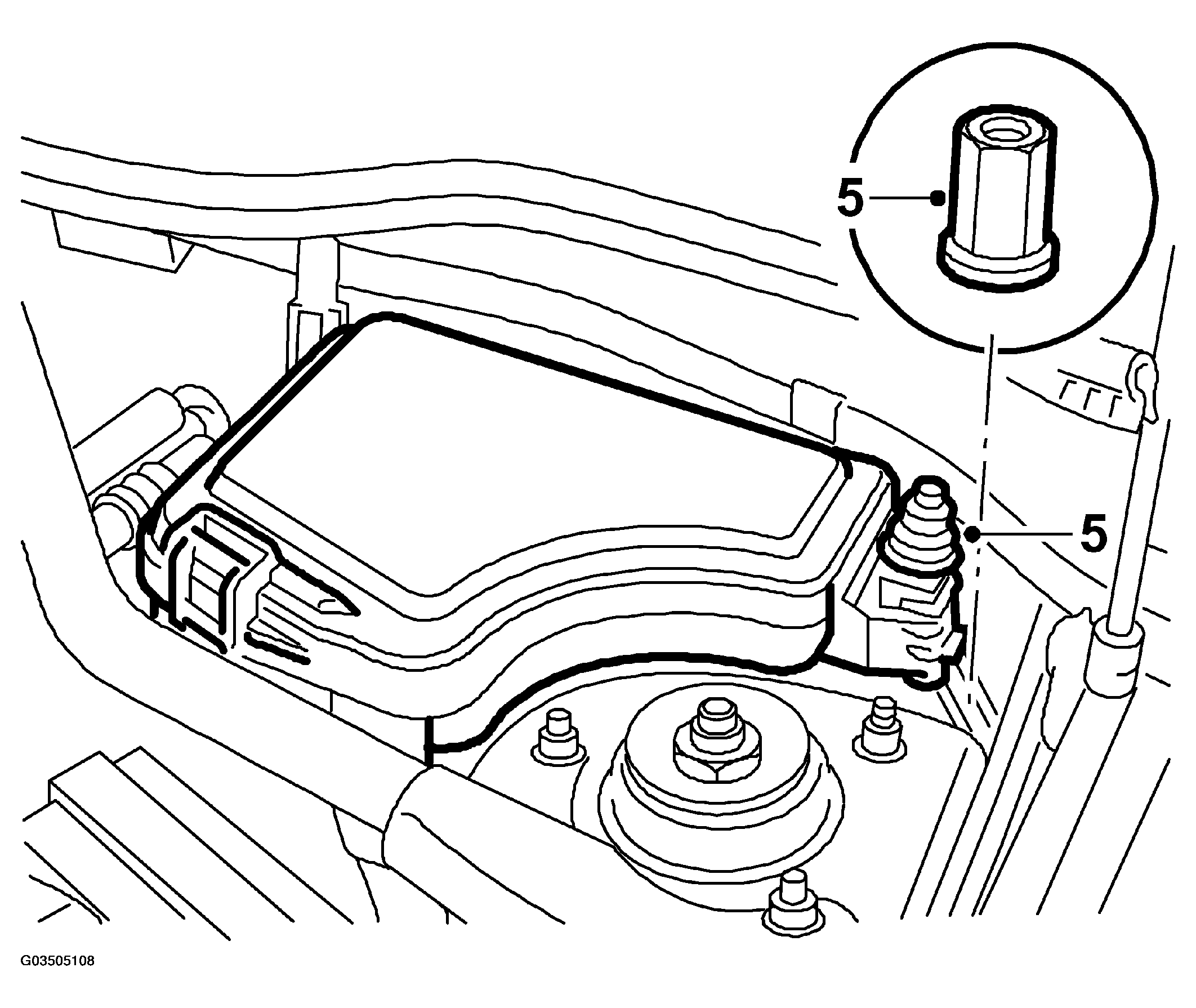

Fig 3: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Top up with brake fluid and bleed the system, see BLEEDING THE HYDRAULIC CLUTCH SYSTEM IN THE CAR .
Make sure all the connections are tight.
Test the clutch.
