Section 19 (Theft Protection (Early; 9400))
>>
Technical Description
>>
Angle sensor
>>
Notes
Angle sensor: Notes
WARNING:
This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

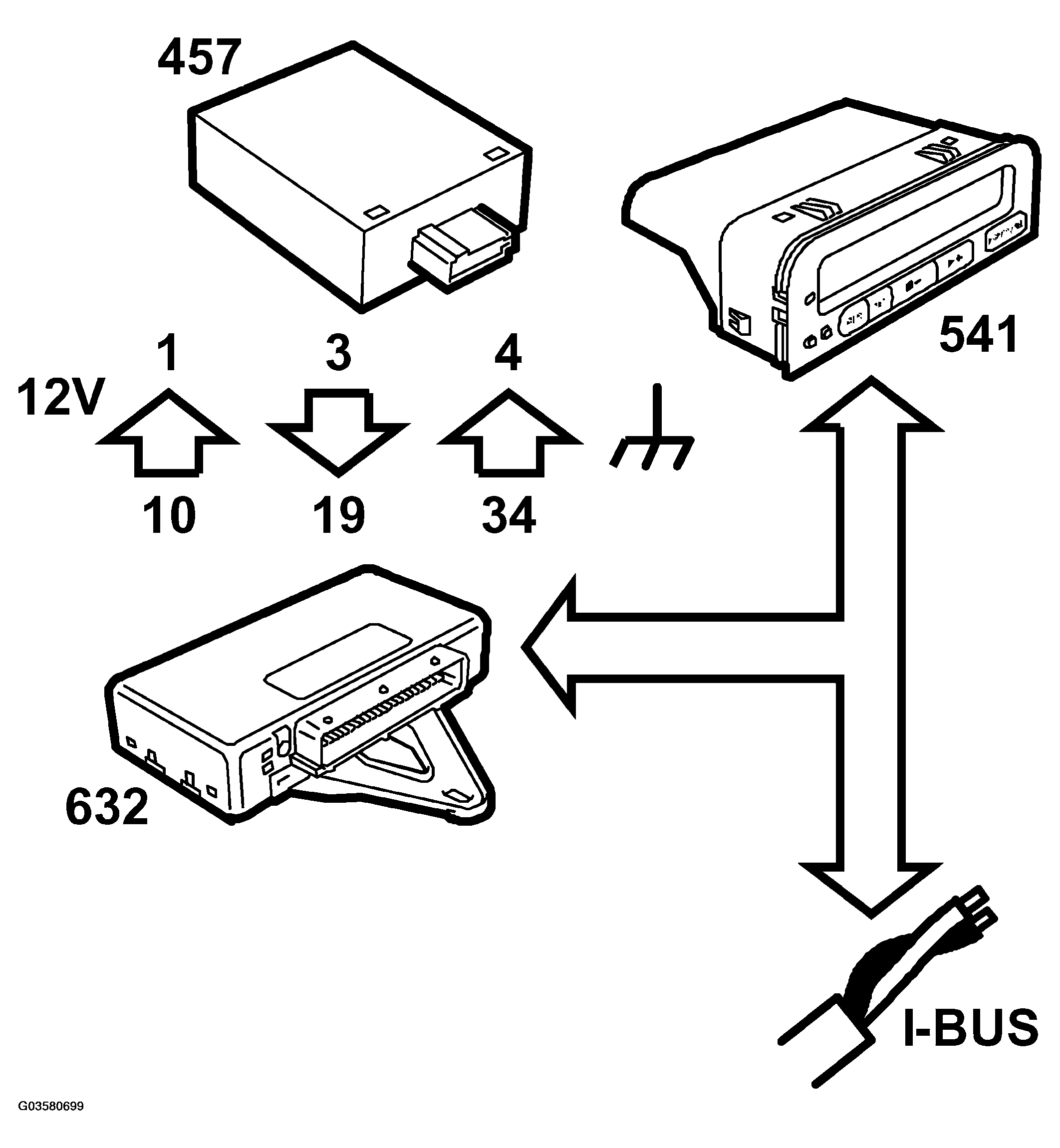

Fig 1: Communication Diagram - Angle Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.

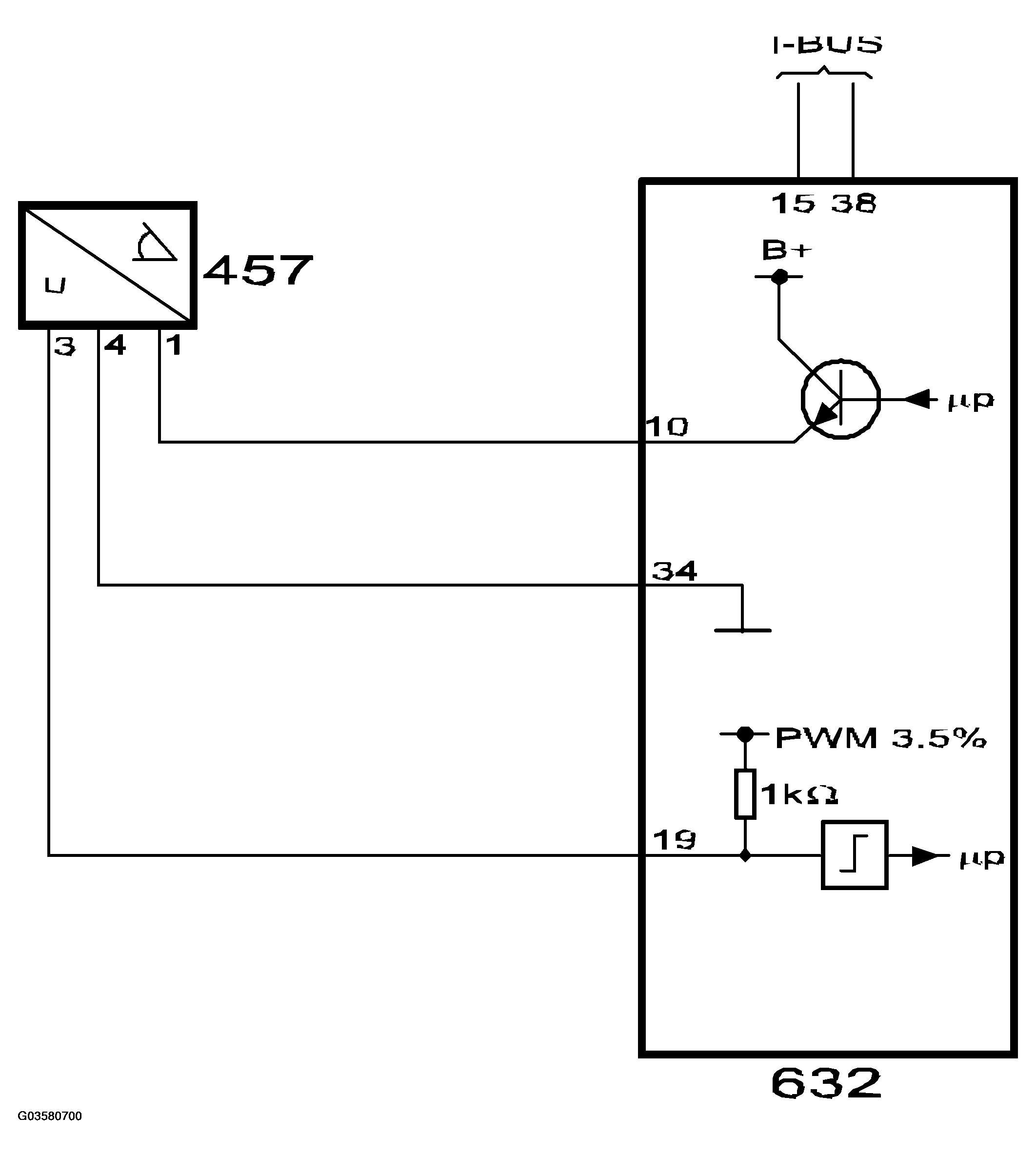

Fig 2: Circuit Diagram - Angle Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
