Receiver, remote control
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

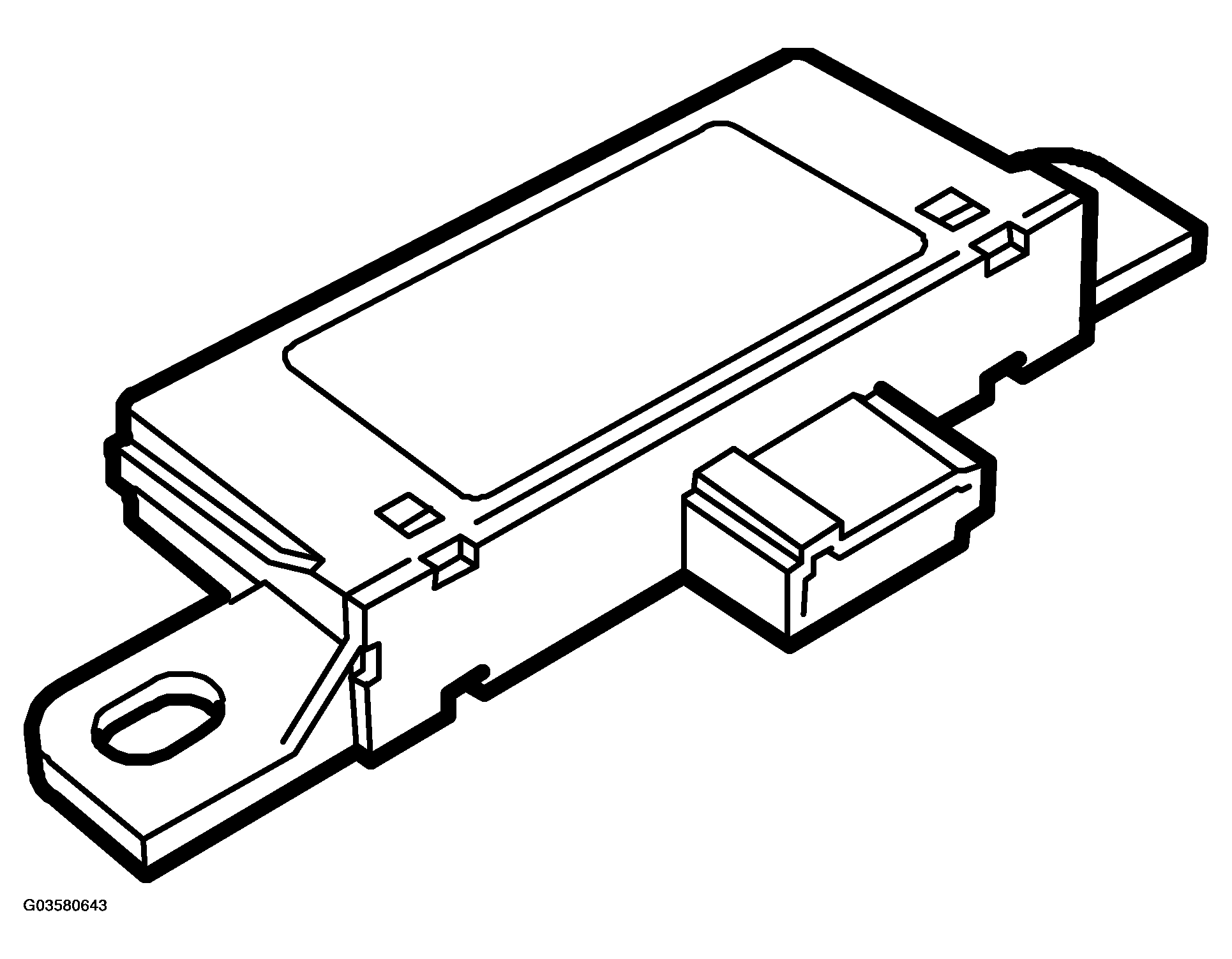

Courtesy of SAAB-SCANIA OF AMERICA, INC. RECEIVER (REMOTE CONTROL) TECHNICAL DATA
| Location |
|
Centre console, left rear section |
| Frequency (carrier wave) |
EU |
433.92 MHz |
| |
US/CA/AU/JP |
315 MHz |
| Power supply B+ |
Pin No. |
3 |
| Signal |
Pin No. |
1 |
| Ground |
Pin No. |
2 |
