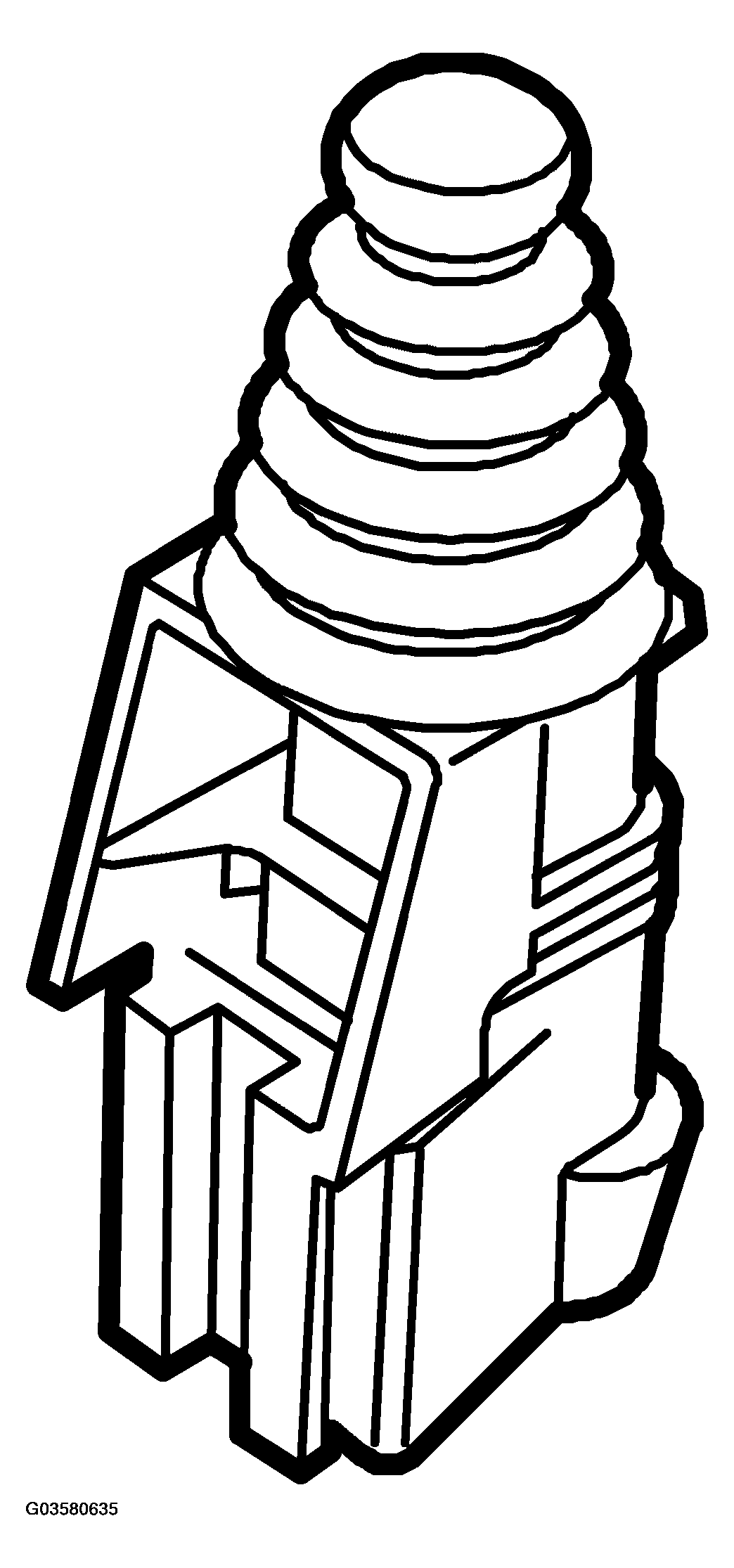

Bonnet switch
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. BONNET SWITCH TECHNICAL DATA
| Location |
|
Bonnet rear edge |
| Type |
|
Normally open when bonnet is closed |
| Power supply PWM approx. 3.5% |
Pin No. |
2 |
| Ground |
Pin No. |
1 |
