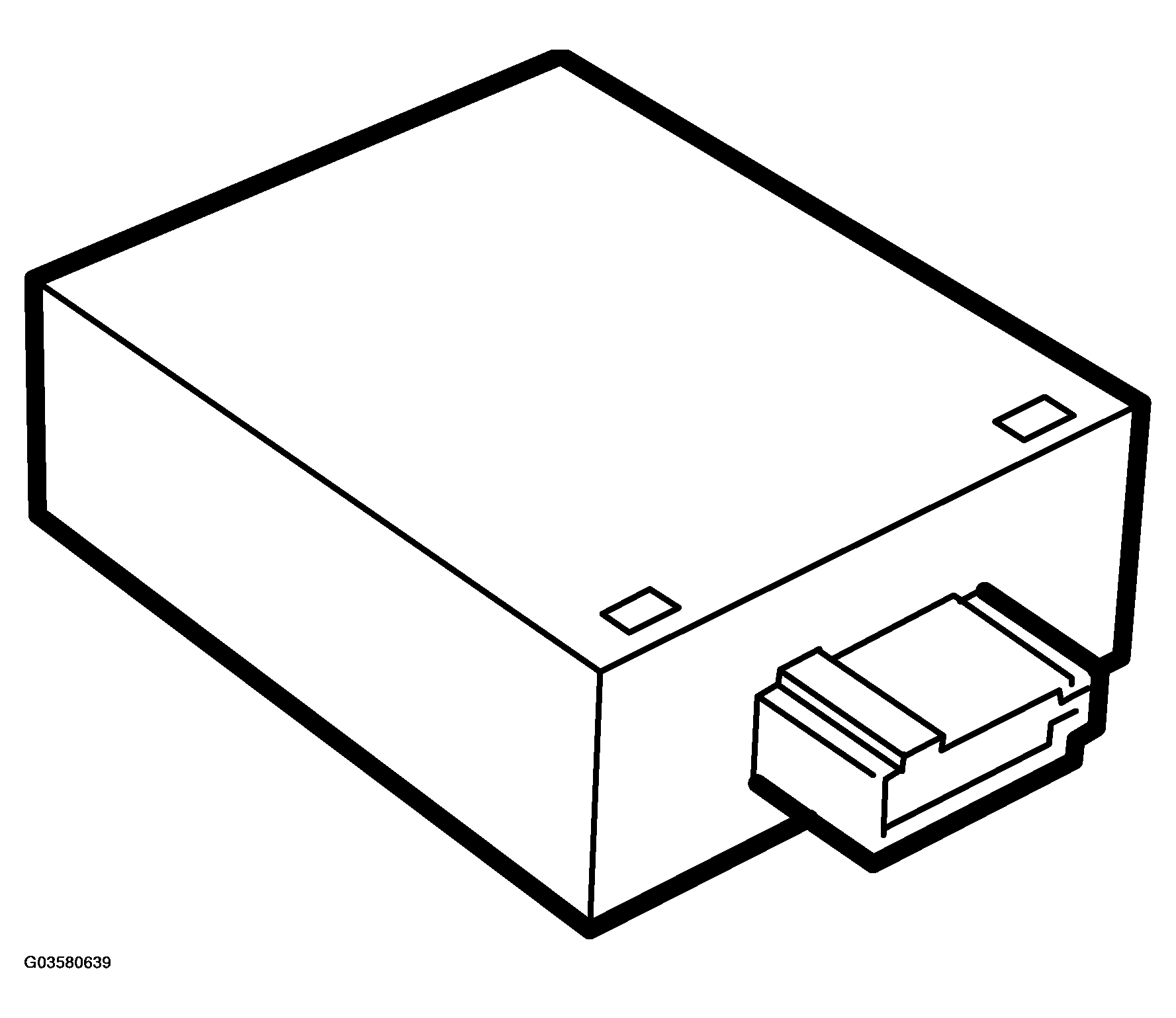

Angle sensor
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. ANGLE SENSOR TECHNICAL DATA
| Location |
|
Centre console, rear section |
| Type |
|
Fluid-filled |
| Power supply B+ |
Pin No. |
1 |
| Communication |
Pin No. |
3 |
| Ground |
Pin No. |
4 |
