Fitting An Additional Modification Identity Plate (801-2268)
WARNING: This page is about the 9-3 Base, 2D Convertible, Automatic, which is a different variant/trim than selected.
Publication date: 2000-09-01Reference number: 801-2268
FITTING AN ADDITIONAL MODIFICATION IDENTITY PLATE
TECHNICAL SERVICE BULLETIN
Reference Number(s): 801-2268, Date of Issue:
September 2000
| SAAB: | 1999 9-3 |
| MARKET: | Not US, CA |
SUBJECT
Fitting an additional modification identity plate
CARS AFFECTED
All Saab 9-3 M99.
BACKGROUND
The modification identity plate on a small number of Saab 9-3 cars is now full and an additional plate therefore needs to be fitted.
PARTS REQUIRED
- 49 00 007 Modification identity plate
- 79 72 490 Blind rivet
- 16-30 15 948 Teroson Terotex HV 200 Extra T108
PROCEDURE
- Open the luggage compartment and fold back the carpet.

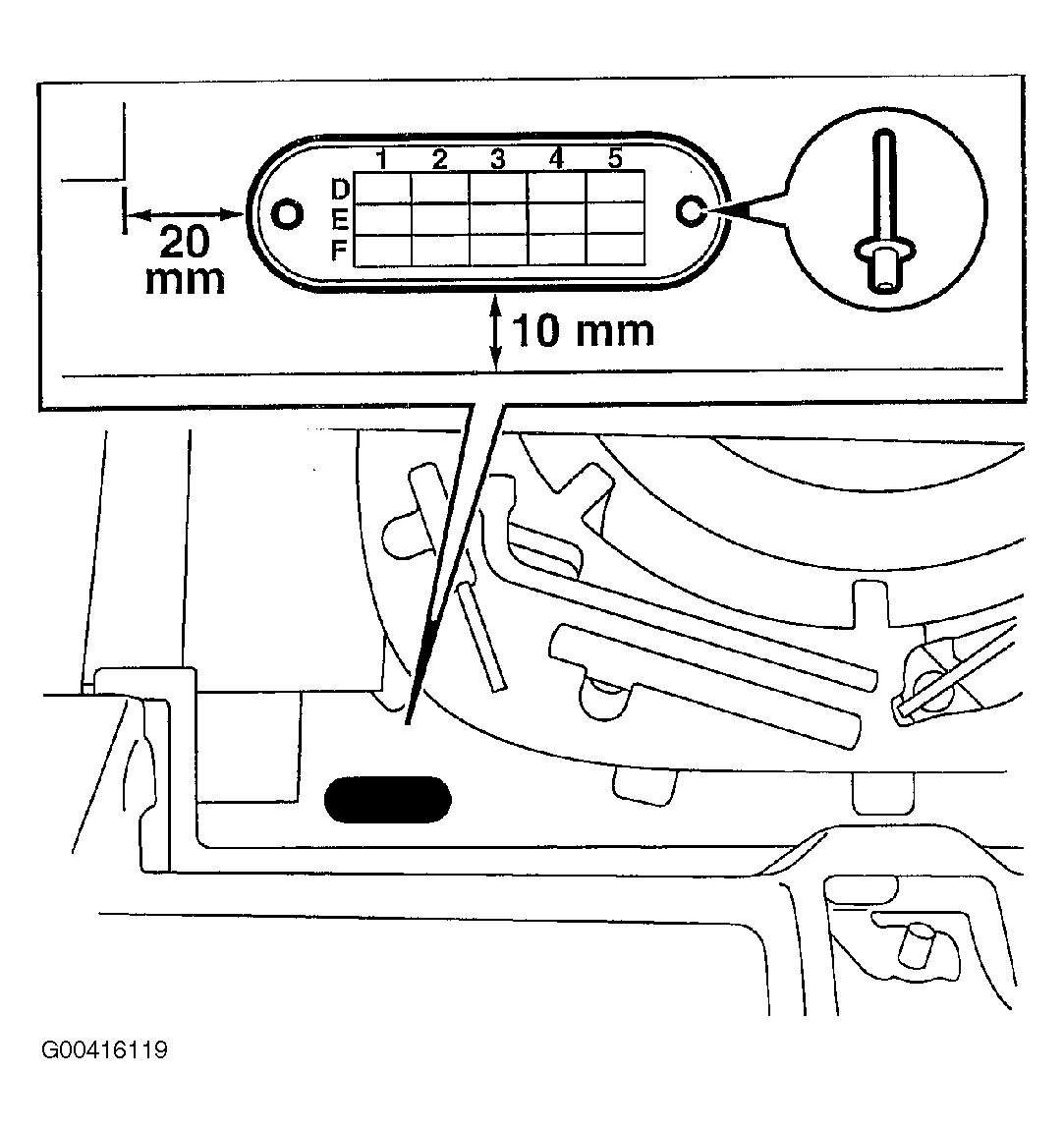

- Place the modification identity plate as illustrated in Fig 1 without removing the backing paper.
- Mark the location of the drill holes and drill with a 4 mm drill bit.
- Apply corrosion inhibitor in the holes.
- Remove the backing paper and place the modification identity plate so it fits over the holes. Fit the modification identity plate using the blind rivets.
- Apply corrosion inhibitor underneath the floor.
- Vacuum the luggage compartment from drill cuttings and put the carpet back in place. Close the luggage compartment.
TIME/WARRANTY INFORMATION
Regular warranty conditions apply.
- Failed object: 85598
- Fault/Reason code: -
- Location code: 09
- Repair/Action code: 10
- Time: 0.1
