Home >> Saab >> 1999 >> 9-3 Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Servicing - A/T >> Identification

Servicing - A/T: Identification

Use illustration for transaxle identification. See Fig 1 .

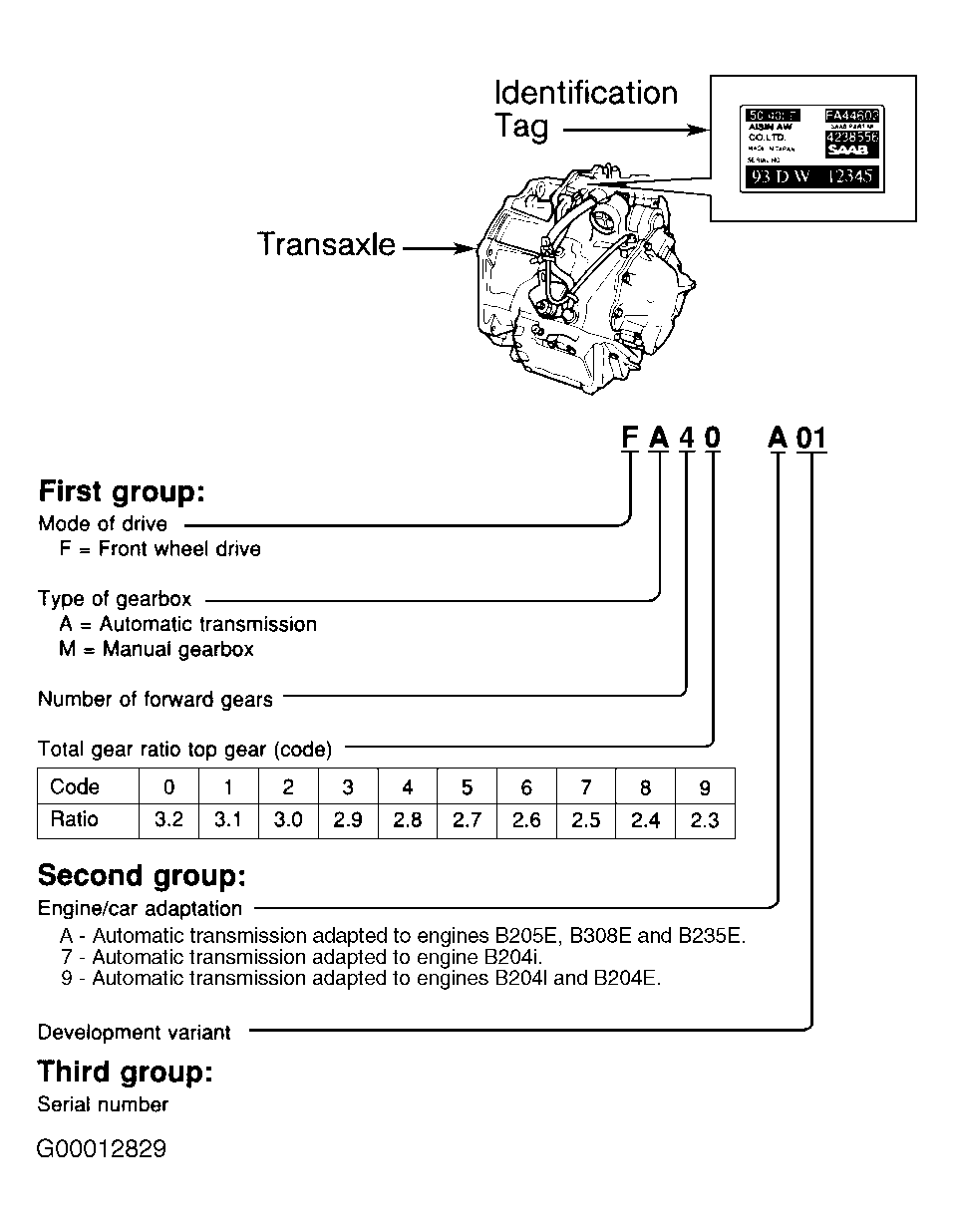

Fig 1: Identifying Transaxle

G00012829

Courtesy of SAAB-SCANIA OF AMERICA, INC.
