Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

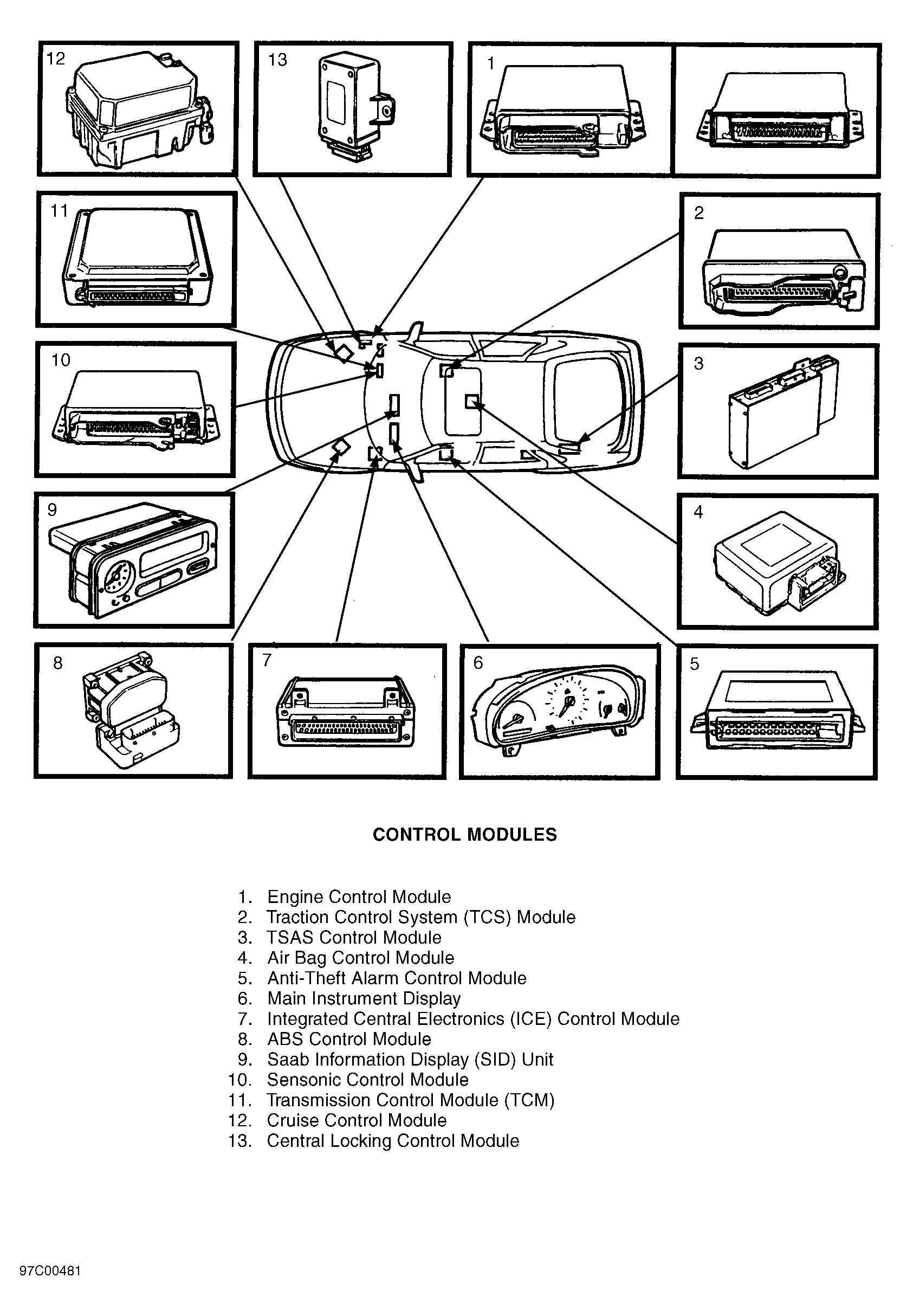

Fig 1: Vehicle Overview
G97C00481

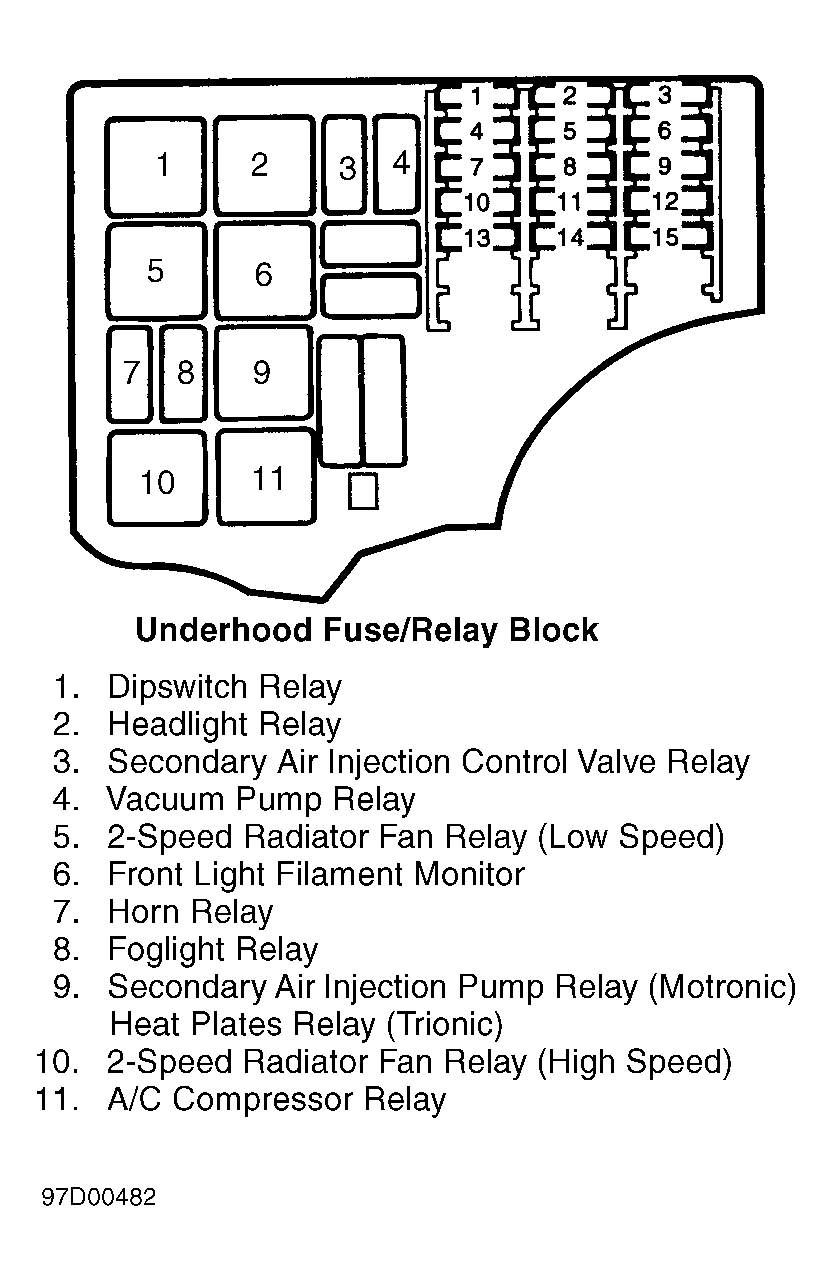

Fig 2: Underhood Fuse/Relay Block
G97D00482

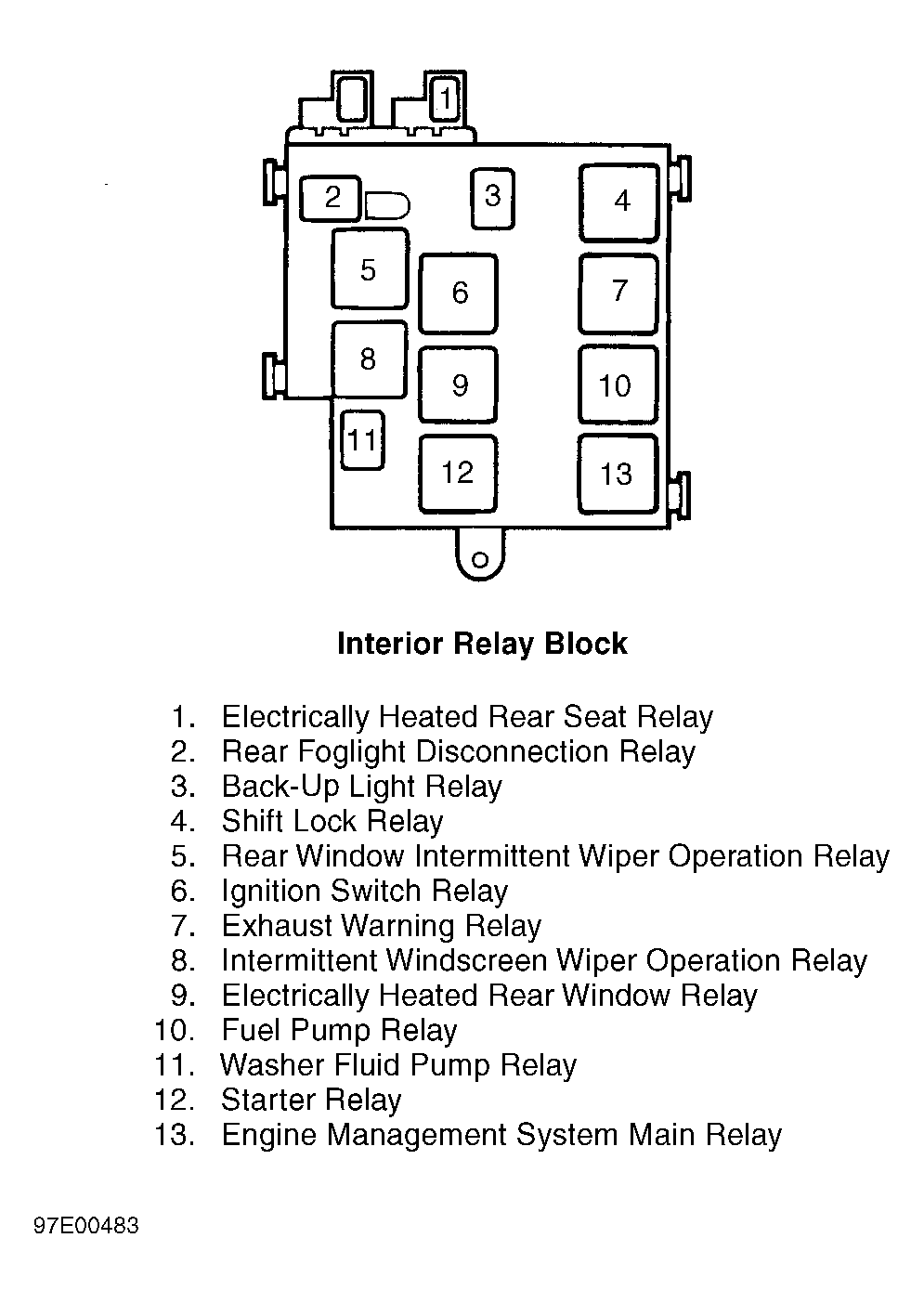

Fig 3: Interior Relay Block
G97E00483
